2009
>>
Commander Overland, 4WD
>>
Repair and Diagnosis (Single Page)
>>
Body & Frame
>>
Windows
>>
Driver Door Module (DDM) - Electrical Diagnostics
>>
DTC Troubleshooting
>>
U1000-Can B Bus (+) Circuit
>>
Circuit Schematic
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Circuit Schematic

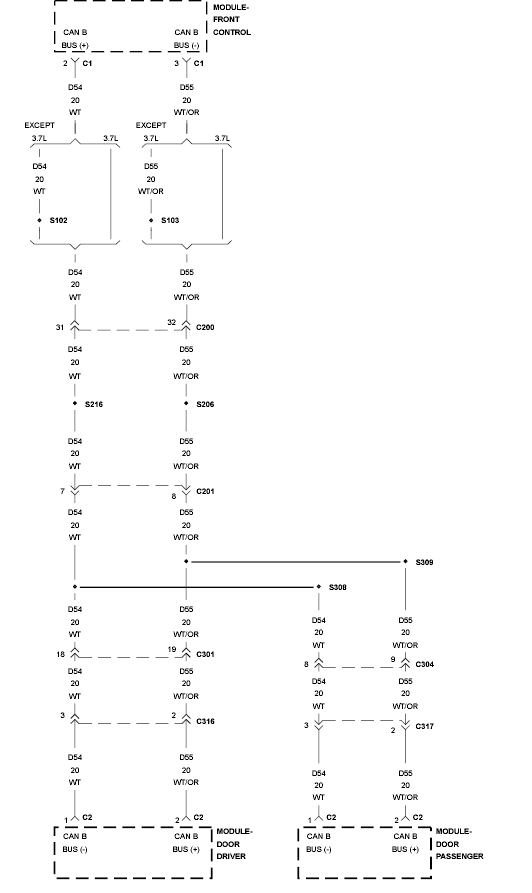

Fig 1: CAN B BUS (+) Circuit schematic
Courtesy of CHRYSLER LLC
Courtesy of CHRYSLER LLC
