Passenger Door Module (PDM) - Electrical Diagnostics
>>
DTC Troubleshooting
>>
B1865-Passenger Window Position Sensor Circuit Performance
>>
Circuit Schematic
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Circuit Schematic

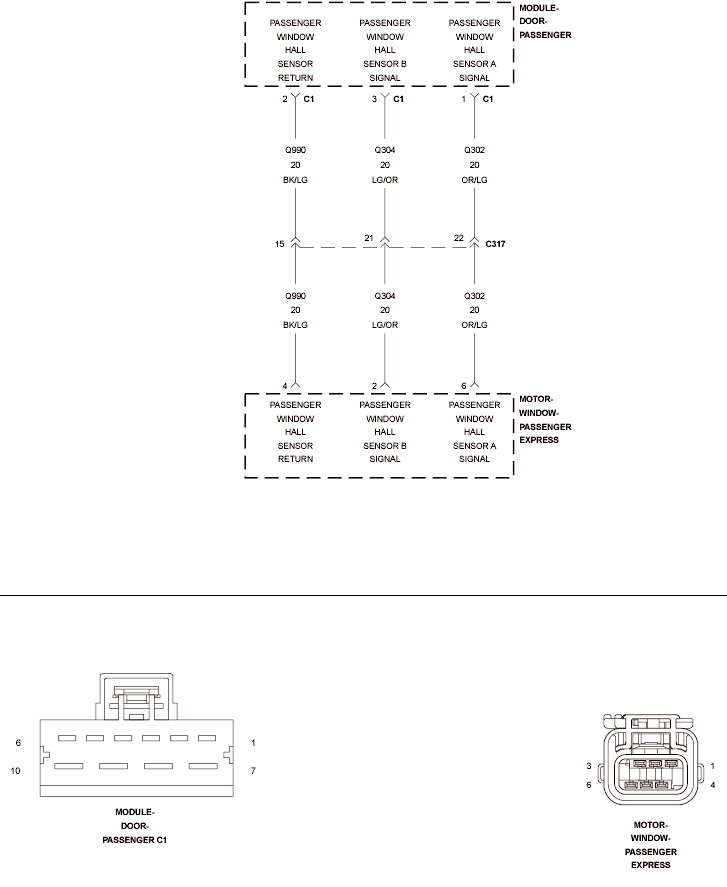

Fig 1: Passenger Window Hall Sensor A Signal Circuit Schematic
Courtesy of CHRYSLER LLC
