Feed Circuit Test

The starter feed circuit test (voltage drop method) will determine if there is excessive resistance in high-amperage feed circuit.

When performing these tests, it is important to remember that voltage drop is giving an indication of resistance between two points at which voltmeter probes are attached.

Example:  When testing resistance of positive battery cable, touch voltmeter leads to positive battery cable clamp and cable connector at starter solenoid. If you probe positive battery terminal post and cable connector at starter solenoid, you are reading combined voltage drop in positive battery cable clamp-to-terminal post connection and positive battery cable.

The following procedure requires a voltmeter accurate to 1/10 (0.10) volt. Before proceeding, be certain that the following are accomplished:

• Fully charge and load-test the battery. Refer to Electrical/Battery System - Diagnosis and Testing .
• Place transmission in Park or Neutral with the parking brake set (depending on transmission application).
• If equipped with manual transmission, block clutch pedal in fully depressed position.
• Verify that all lamps and accessories are turned off.
• To prevent a gasoline engine from starting, remove Automatic ShutDown (ASD) relay. To prevent a diesel engine from starting, remove Fuel Pump Relay. SeeSYSTEM WIRING DIAGRAMS for relay locations.

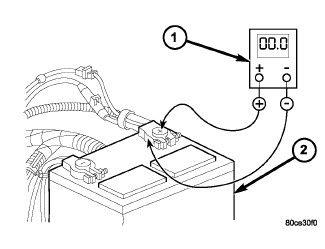

Fig 1: Test Battery Negative Connection Resistance - Typical

Courtesy of CHRYSLER LLC

1. Connect positive lead of voltmeter (1) to negative battery cable terminal post. Connect negative lead of voltmeter to negative battery cable clamp. Rotate and hold ignition switch in Start position. Observe voltmeter. If voltage is detected, correct poor contact between cable clamp and terminal post.

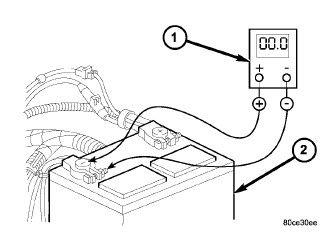

   Fig 2: Test Battery Positive Connection Resistance - Typical

   Courtesy of CHRYSLER LLC

   1 - VOLTMETER

   2 - BATTERY

   NOTE: Certain diesel equipped models use dual batteries. If equipped with dual battery system, this procedure must be performed twice, once for each battery.
2. Connect positive lead of voltmeter to positive battery terminal post. Connect negative lead of voltmeter to battery positive cable clamp. Rotate and hold ignition switch in Start position. Observe voltmeter. If voltage is detected, correct poor contact between cable clamp and terminal post.

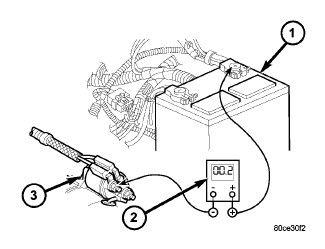

   Fig 3: Test Battery Positive Cable Resistance - Typical

   Courtesy of CHRYSLER LLC

   1 - BATTERY

   2 - VOLTMETER

   3 - STARTER MOTOR

   NOTE: Certain diesel equipped models use dual batteries. If equipped with dual battery system, this procedure must be performed twice, once for each battery.
3. Connect voltmeter (2) to measure between positive terminal post on battery (1) and the battery terminal stud on the starter solenoid (3). Rotate and hold ignition switch in Start position. Observe voltmeter. If reading is above 0.2 volt, clean and tighten battery cable connection at solenoid and repeat test. If reading is still above 0.2 volt, replace the positive battery cable.

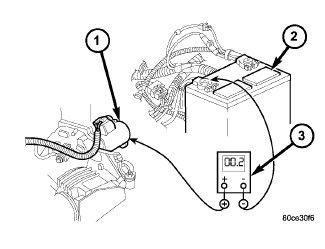

   Fig 4: Test Ground Circuit Resistance - Typical

   Courtesy of CHRYSLER LLC

   1 - VOLTMETER

   2 - BATTERY

   3 - ENGINE GROUND

   NOTE: Certain diesel equipped models use dual batteries. If equipped with dual battery system, this procedure must be performed twice, once for each battery.
4. Connect voltmeter (1) to measure between negative terminal post on battery (2) and a good clean ground on engine block (3). Rotate and hold ignition switch in Start position. Observe voltmeter. If reading is above 0.2 volt, clean and tighten negative battery cable attachment on engine block and repeat test. If reading is still above 0.2 volt, replace the negative battery cable.

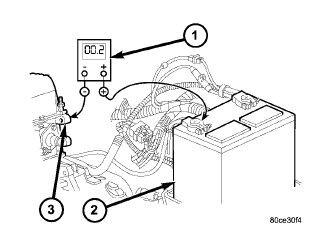

   Fig 5: Test Starter Ground - Typical

   Courtesy of CHRYSLER LLC

   1 - STARTER MOTOR

   2 - BATTERY

   3 - VOLTMETER

   NOTE: Certain diesel equipped models use dual batteries. If equipped with dual battery system, this procedure must be performed twice, once for each battery.
5. Connect positive lead of voltmeter (3) to starter housing (1). Connect negative lead of voltmeter to negative terminal post on battery (2). Rotate and hold ignition switch in Start position. Observe voltmeter. If reading is above 0.2 volt, correct poor starter to engine block ground contact.
6. If equipped with dual battery system (certain diesel equipped models), connect positive lead of voltmeter to positive battery cable clamp on battery located on left side of vehicle. Connect negative lead of voltmeter to positive battery terminal post on battery located on right side of vehicle. Rotate and hold ignition switch in Start position. Observe voltmeter. If reading is above 0.2 volt, clean and tighten battery cables at both batteries and repeat test. If reading is still above 0.2 volt, replace positive battery cable.
7. If resistance tests detect no feed circuit problems, inspect and test the starter motor and solenoid. See Diagnosis and Testing  .
