P0151-O2 Sensor 2/1 Circuit Low: Notes

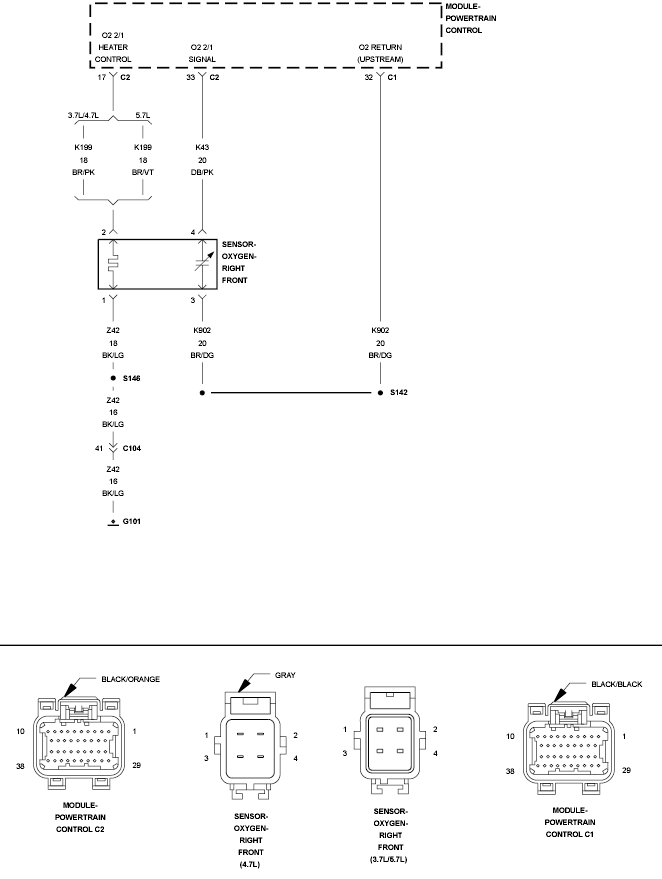

Fig 1: O2 Sensor Circuit

GC0132690

Courtesy of CHRYSLER LLC
