Diagnostic Test

ACTIVE DTC
1. Turn the ignition on.
2. With a scan tool, select View DTCs. Record DTC and Freeze Frame information.
3. Start the engine and allow it to idle for at least 60 seconds.
  WARNING: When the engine is operating, do not stand in direct line with the fan. Do not put your hands near the pulleys, belts, or fan. Do not wear loose clothing. Failure to follow these instructions can result in possible serious or fatal injury.
4. With a scan tool, select View DTCs.
  Is the DTC Active at this time?

  Yes
  - Go to step 2
  No
  - Refer to the INTERMITTENT CONDITION Diagnostic Procedure. See DTC-Based Diagnostics/MODULE, Powertrain Control (PCM) - Standard Procedure .
(K243) O2 2/2 SIGNAL CIRCUIT
1. Turn the ignition off.
2. Disconnect the 2/2 O2 Sensor harness connector.
3. Ignition on, engine not running.
4. With a scan tool, monitor the 2/2 O2 Sensor voltage.
  Is the O2 Sensor voltage between 4.1 and 5.0 volts?

  Yes
  - Go to step 3
  No
  - Go to step 5
O2 SENSOR

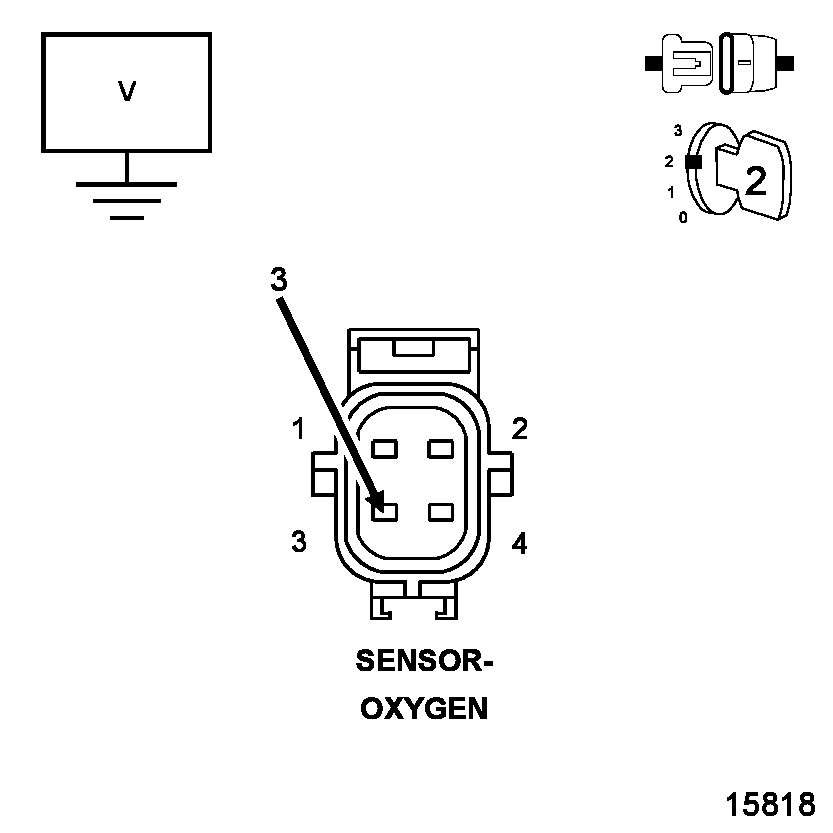

Fig 1: Measuring Voltage On O2 Sensor Return Circuit In O2 Sensor Harness Connector
Courtesy of CHRYSLER LLC
1. Measure the voltage on the (K904) O2 Return Downstream circuit in the O2 Sensor harness connector.
  Is the voltage at 2.5 volts?

  Yes
  - Verify that there is good pin to terminal contact in the 2/2 Oxygen Sensor and Powertrain Control Module connectors. If OK, replace the 2/2 O2 Sensor.
  - Perform the POWERTRAIN VERIFICATION TEST. See DTC-Based Diagnostics/MODULE, Powertrain Control (PCM) - Standard Procedure .
  No
  - Go to step 4
(K904) O2 RETURN DOWNSTREAM CIRCUIT SHORTED TO GROUND

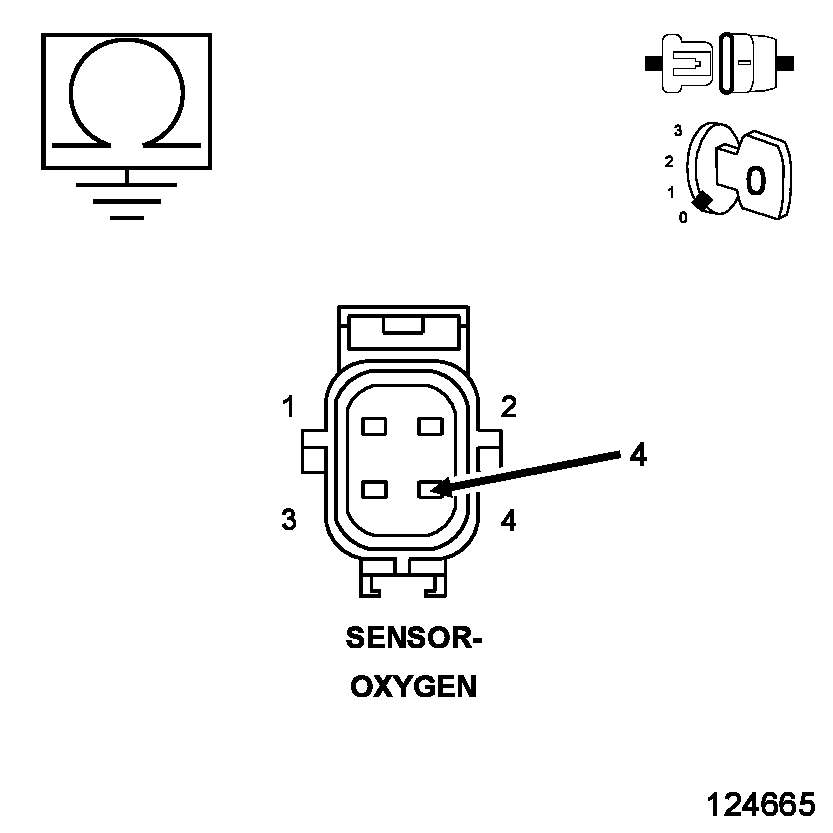

Fig 2: Measuring Resistance Between Ground And O2 Sensor Return Circuit In O2 Sensor Harness Connector
Courtesy of CHRYSLER LLC
1. Turn the ignition off.
2. Disconnect the C2 PCM harness connector.
3. Measure the resistance between ground and the (K904) O2 Return Downstream circuit in the O2 Sensor harness connector.
  Is the resistance below 100 ohms?

  Yes
  - Repair the short to ground in the (K904) O2 Return Downstream circuit.
  - Perform the POWERTRAIN VERIFICATION TEST. See DTC-Based Diagnostics/MODULE, Powertrain Control (PCM) - Standard Procedure .
  No
  - Go to step 8
(K243) O2 2/2 SIGNAL CIRCUIT SHORTED TO GROUND

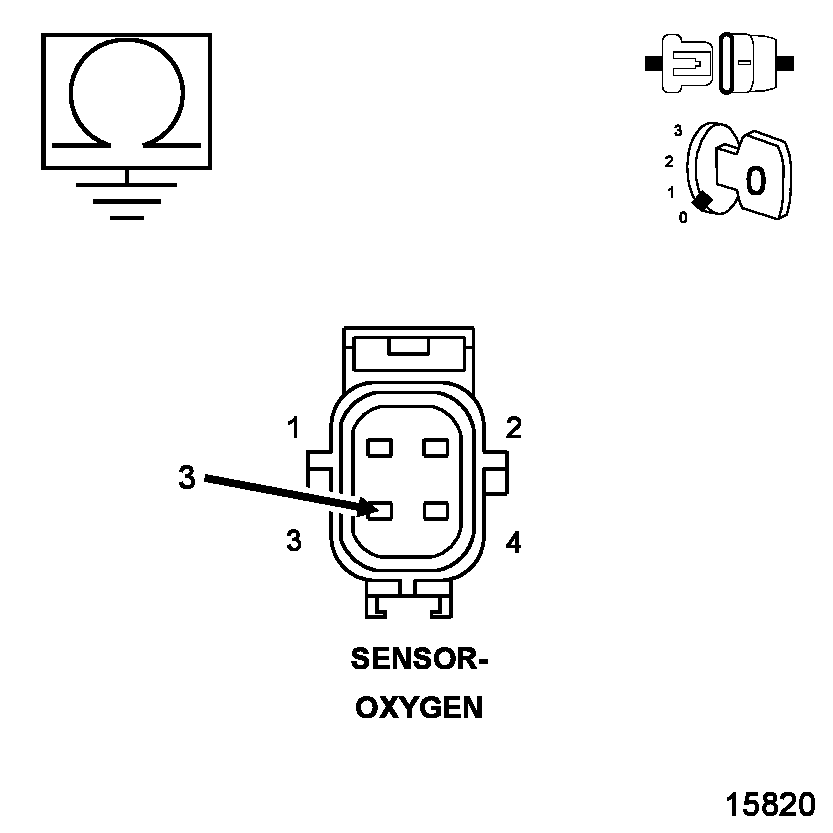

Fig 3: Measuring Resistance Between Ground And O2 Sensor Signal Circuit In O2 Sensor Harness Connector
Courtesy of CHRYSLER LLC
1. Turn the ignition off.
2. Disconnect the C1 and C2 PCM harness connectors.
3. Measure the resistance between ground and the (K243) O2 2/2 Signal circuit in the O2 Sensor harness connector.
  Is the resistance below 100 ohms?

  Yes
  - Repair the short to ground in the (K243) O2 2/2 Signal circuit.
  - Perform the POWERTRAIN VERIFICATION TEST. See DTC-Based Diagnostics/MODULE, Powertrain Control (PCM) - Standard Procedure .
  No
  - Go to step 6
(K243) O2 2/2 SIGNAL CIRCUIT SHORTED TO THE (K904) O2 RETURN DOWNSTREAM CIRCUIT

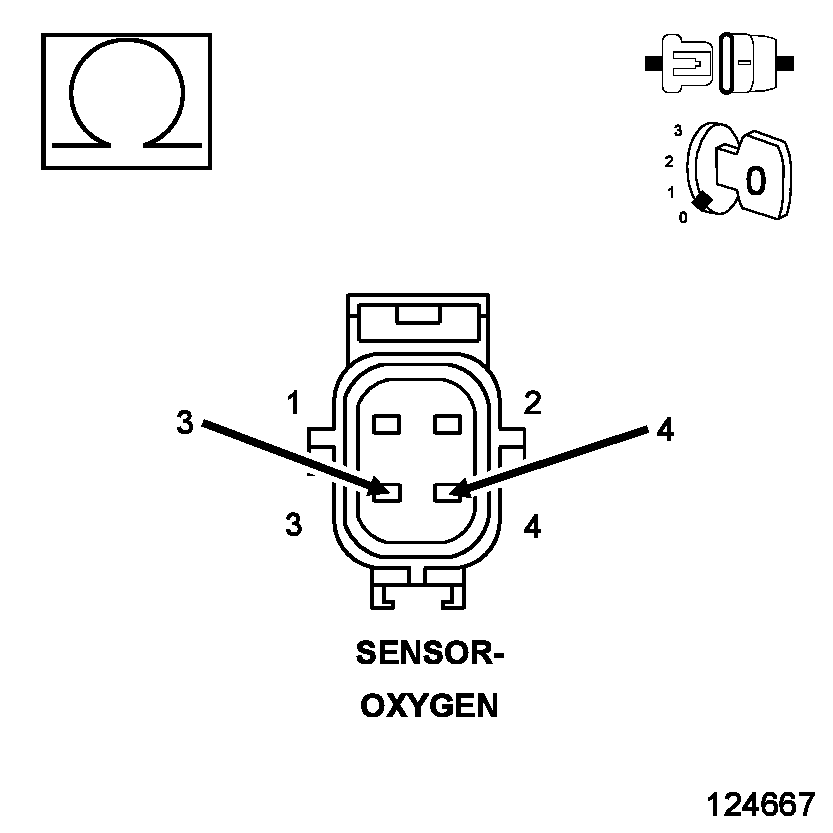

Fig 4: Measuring Resistance Between O2 Sensor Signal Circuit And O2 Sensor Return Circuit In O2 Sensor Harness Connector
Courtesy of CHRYSLER LLC
1. Measure the resistance between the (K243) O2 2/2 Signal circuit and the (K904) O2 Return Downstream circuit in the O2 Sensor harness connector.
  Is the resistance below 100 ohms?

  Yes
  - Repair the short between the (K904) O2 Return Downstream circuit and the (K243) O2 2/2 Signal circuit.
  - Perform the POWERTRAIN VERIFICATION TEST. See DTC-Based Diagnostics/MODULE, Powertrain Control (PCM) - Standard Procedure .
  No
  - Go to step 7
(K243) O2 2/2 SIGNAL CIRCUIT SHORTED TO THE (Z42) O2 2/2 HEATER GROUND CIRCUIT

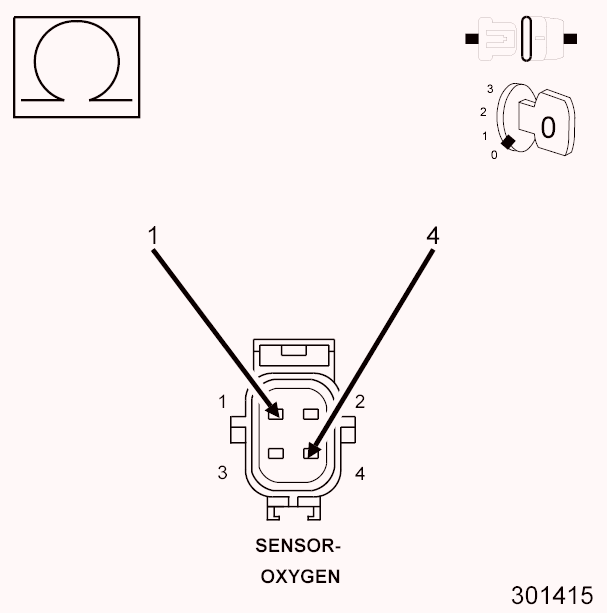

Fig 5: Checking O2 Sensor Signal Circuit
Courtesy of CHRYSLER LLC
1. Measure the resistance between the (K243) O2 2/2 Signal circuit and the (Z42) O2 2/2 Heater ground circuit in the O2 Sensor harness connector.
  Is the resistance below 100 ohms?

  Yes
  - Repair the short between the (Z42) O2 2/2 Heater ground circuit and the (K243) O2 2/2 Signal circuit.
  - Perform the POWERTRAIN VERIFICATION TEST. See DTC-Based Diagnostics/MODULE, Powertrain Control (PCM) - Standard Procedure .
  No
  - Go to step 8
POWERTRAIN CONTROL MODULE (PCM)
1. Using the wiring diagram/schematic as a guide, inspect the wiring and connectors between the Oxygen Sensor 2/2 and the Powertrain Control Module (PCM).
2. Look for any chafed, pierced, pinched, or partially broken wires.
3. Look for broken, bent, pushed out or corroded terminals. Verify that there is good pin to terminal contact in the 2/2 Oxygen Sensor and Powertrain Control Module connectors.
4. Refer to any Technical Service Bulletins that may apply.
  Were there any problems found?

  Yes
  - Repair as necessary.
  - Perform the POWERTRAIN VERIFICATION TEST. See DTC-Based Diagnostics/MODULE, Powertrain Control (PCM) - Standard Procedure .
  No
  - Replace and program the Powertrain Control Module per Service Information.
  - Perform the POWERTRAIN VERIFICATION TEST. See DTC-Based Diagnostics/MODULE, Powertrain Control (PCM) - Standard Procedure .
