P0157-O2 Sensor 2/2 Circuit Low: Notes

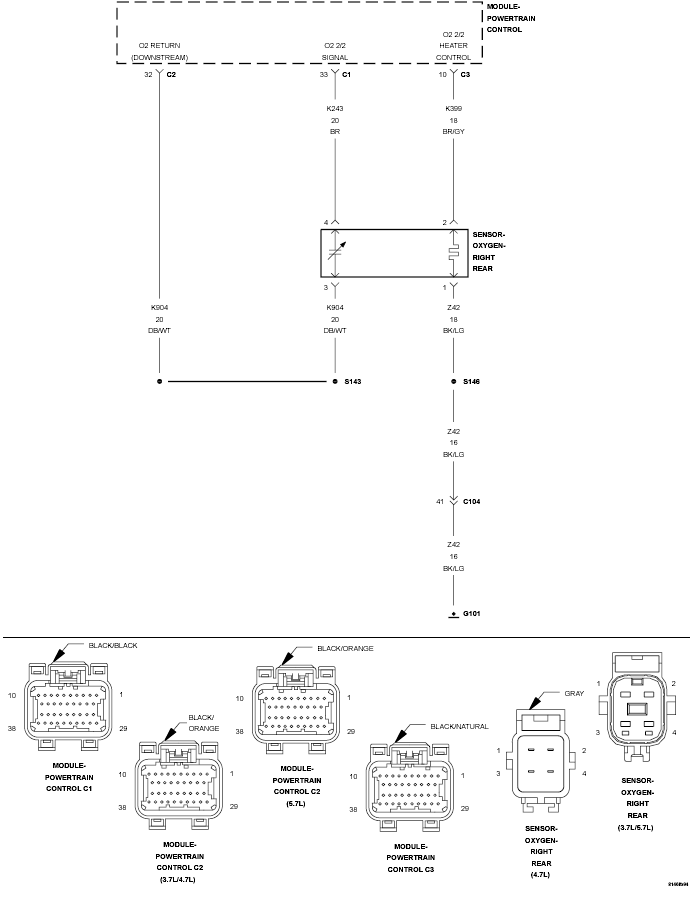

Fig 1: O2 Sensor Heater Circuit
GC0132695Courtesy of CHRYSLER LLC
