Diagnostic Test

1. With the scan tool, read Occupant Restraint Controller (ORC) DTCs.

   Does the scan tool display any active DTCs relating to internal faults, ignition faults, or battery faults?

   Yes

   • Diagnose and repair the DTCs. Refer to DIAGNOSTIC CODE INDEX  for a complete list of symptoms.

   No

   • Go to step  2

Does the scan tool display active: B1B90-DRIVER SEAT TRACK POSITION SENSOR CIRCUIT SHORTED TOGETHER?

Yes

• Go to step  3

No

• Go to step  8

1. Using the SYSTEM WIRING DIAGRAMS as a guide, inspect the Driver Seat Harness wiring and connectors. Look for chafed, pierced, pinched, or partially broken wires and broken, bent, pushed out, spread, corroded, or contaminated terminals.

   Are any of these conditions present?

   Yes

   NOTE: Do not attempt to repair the Seat Harness. Replace the Seat Harness if any of these conditions exist
   • Replace the Driver Seat Harness in accordance with the Service Information.
   • Perform *ORC VERIFICATION TEST - VER 1.

   No

   • Go to step  4

1. Verify that the Driver Seat Harness is routed correctly.

   Is the Driver Seat Harness routed correctly?

   Yes

   • Go to step  5

   No

   • Reroute the Driver Seat Harness as necessary.
   • Perform *ORC VERIFICATION TEST - VER 1.

1. Disconnect the Driver Seat Track Position Sensor connector.
   WARNING: Turn the ignition on, then reconnect the 12-volt battery. Wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.
2. Wait two minutes, and then with the scan tool, read ORC DTCs.

   Does the scan tool display: B1B90-DRIVER SEAT TRACK POSITION SENSOR CIRCUIT SHORTED TOGETHER?

   Yes

   • Go to step  6

   No

   WARNING: Turn the ignition off disconnect the 12-volt battery and wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.
   • Replace the Driver Seat Track Position Sensor in accordance with the service information.
   • Perform the *ORC VERIFICATION TEST-VER 1.

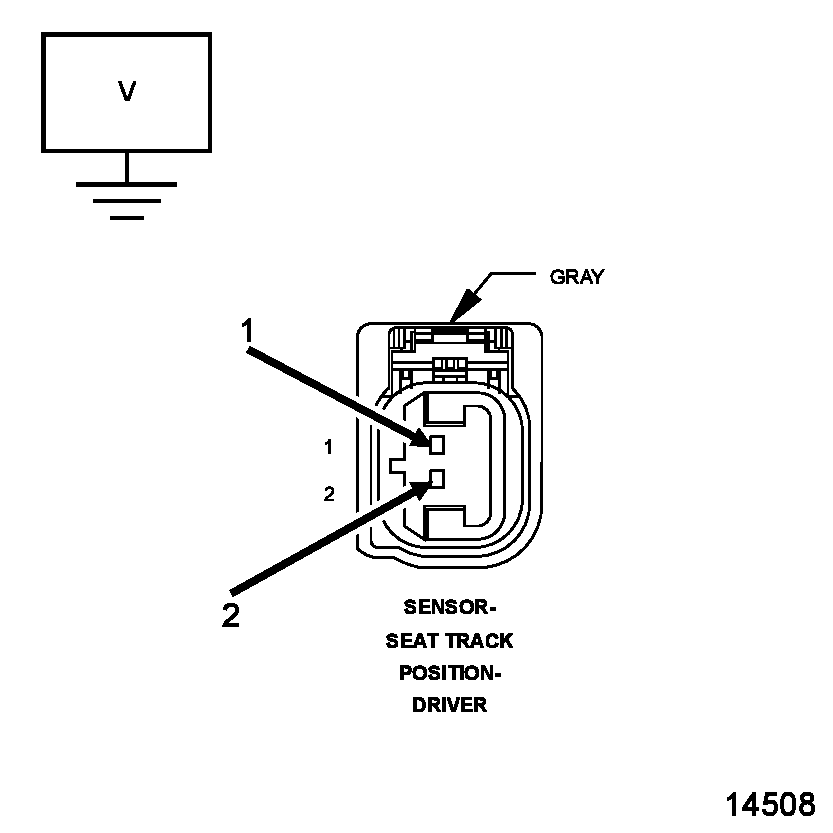

Fig 1: Checking Seat Position Sensor Voltage-Data-Driver Circuit For A Short To Voltage

Courtesy of CHRYSLER LLC

1. Disconnect the ORC C1 connector.
   WARNING: Turn the ignition on, then reconnect the 12-volt battery. Wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.
2. Measure the voltage of the (R261) Driver Seat Position Sensor Data circuit between the Driver Seat Track Position Sensor connector and ground.
3. Measure the voltage of the (R263) Driver Seat Position Sensor Voltage circuit between the Driver Seat Track Position Sensor connector and ground.

   Is the voltage above 0.2 volts on either circuit?

   Yes

   NOTE: Do not attempt to repair the Seat Harness. Replace the Seat Harness if any of these conditions exist
   WARNING: Turn the ignition off disconnect the 12-volt battery and wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.
   • Replace the Driver Seat Harness in accordance with the Service Information.
   • Perform the *ORC VERIFICATION TEST-VER 1.

   No

   • Go to step  7

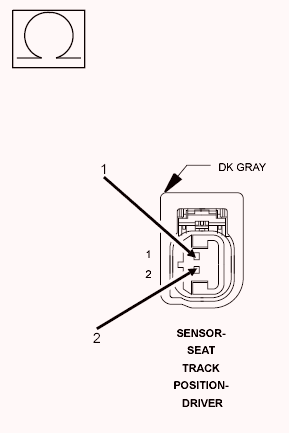

Fig 2: Checking Driver Seat Position Sensor Data Circuit For A Short To Driver Seat Position Sensor Voltage Circuit

Courtesy of CHRYSLER LLC

1. Measure the resistance between the (R261) Driver Seat Position Sensor Data circuit and the (R263) Driver Seat Position Sensor Voltage circuit in the Driver Seat Track Position Sensor connector.

   Is the resistance below 10k ohms?

   Yes

   NOTE: Do not attempt to repair the Seat Harness. Replace the Seat Harness if any of these conditions exist
   • Replace the Driver Seat Harness in accordance with the service information.
   • Perform the *ORC VERIFICATION TEST-VER 1.

   No

   • Replace the ORC in accordance with the Service information.
   • Perform the *ORC VERIFICATION TEST-VER 1.

1. With the scan tool, record and erase all DTC's from the ORC.
2. If any ACTIVE codes are present they must be resolved before diagnosing any stored codes.
   WARNING: Turn the ignition off, disconnect the 12-volt battery and wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.
3. Using the SYSTEM WIRING DIAGRAMS as a guide, inspect the wiring and connectors.
4. Look for chafed, pierced, pinched, or partially broken wires and broken, bent, pushed out, spread, corroded, or contaminated terminals.
5. The following additional checks may assist you in identifying a possible intermittent problem.
6. Reconnect any disconnected components and harness connector.
   WARNING: Turn the ignition on, then reconnect the 12-volt battery. Wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.
7. With the scan tool monitor active codes as you work through the following steps.
   WARNING: Maintain a safe distance from all airbags while performing the following steps. Failure to follow these instructions may result in possible serious or fatal injury.
8. Wiggle the wiring harness and connectors of the related airbag circuit or component.
9. If only stored codes return continue the test until the problem area has been isolated.
10. In the previous steps you have attempted to recreate the conditions responsible for setting active DTC in question.

    Are any ACTIVE DTCs present?

    Yes

    • Select the appropriate symptom from Symptom List.

    No

    • No problem found at this time. Erase all codes before returning vehicle to customer.
