P0440-General EVAP System Failure
>>
Notes
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
P0440-General EVAP System Failure: Notes

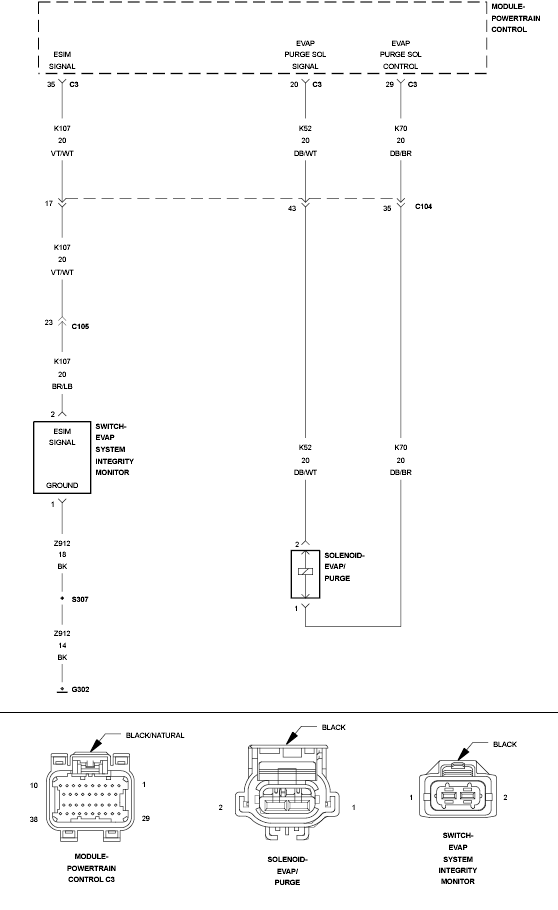

Fig 1: EVAP System Circuit
Courtesy of CHRYSLER LLC
Courtesy of CHRYSLER LLC
