C1507-Right Front Tire Pressure Trigger Module Performance
>>
Circuit Schematic
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Circuit Schematic

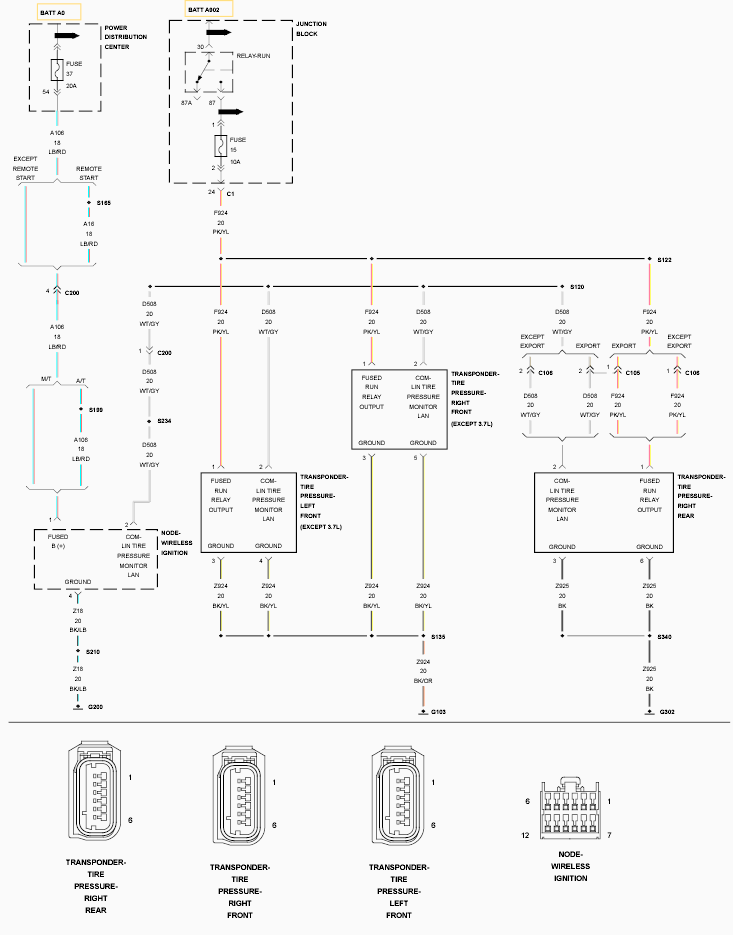

Fig 1: Fused Run Relay Output & COM-LIN Tire Pressure Monitor LAN Circuit Schematic
Courtesy of CHRYSLER LLC
Courtesy of CHRYSLER LLC
