No Response From FCM (Front Control Module): Notes

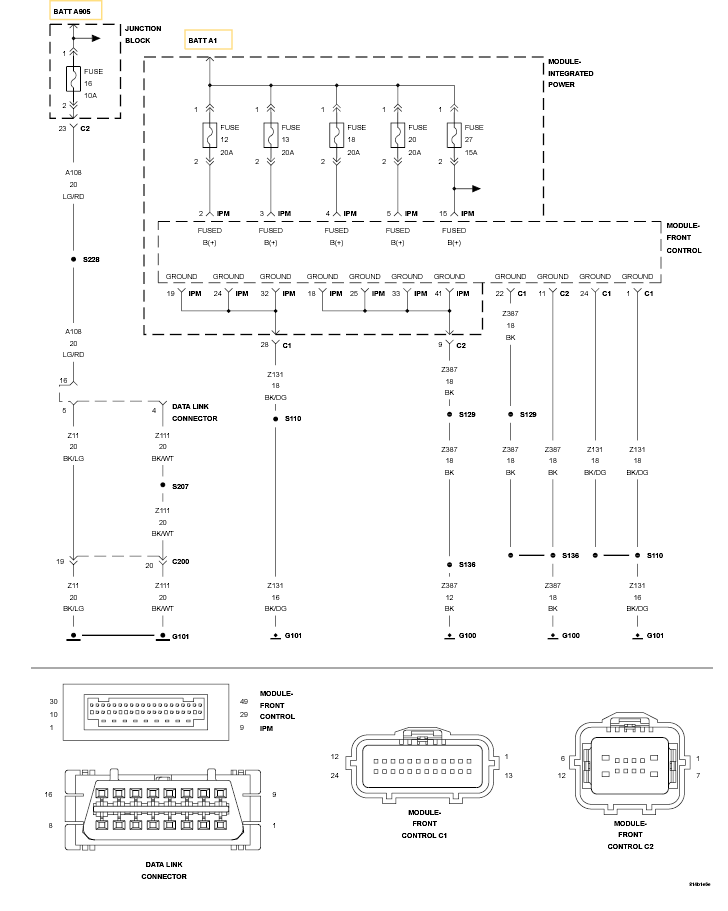

Fig 1: FCM Fused B+ & Ground Circuit Schematic

Courtesy of CHRYSLER LLC

For complete wiring diagrams, refer to SYSTEM WIRING DIAGRAMS .

Possible Causes
(A108) FUSED B(+) CIRCUIT OPEN AT DLC
(Z11) (Z111) GROUND CIRCUIT OPEN AT DLC
GROUND CIRCUITS OPEN AT FCM
FUSED B(+) CIRCUITS OPEN AT FCM
FRONT CONTROL MODULE
