Diagnostic Test

INTERMITTENT DIAGNOSTIC TROUBLE CODE (DTC)
1. Using the scan tool, erase the current WIN DTCs.
2. Turn the ignition off.
3. Arm the Vehicle Theft and Security System (VTSS) and wait one minute.
4. Disarm the VTSS and turn the ignition on.
  Does the scan tool display the same DTC?

  Yes
  - Go to step 2
  No
  - The condition that caused this symptom is currently not present. Inspect the related wiring harness for a possible intermittent condition. Look for any chafed, pierced, pinched or partially broken wires.
  - Perform the WIN VERIFICATION TEST. See DTC-Based Diagnostics/NODE, Wireless Ignition (WIN) - Standard Procedure .
(A106) FUSED B(+) CIRCUIT OPEN

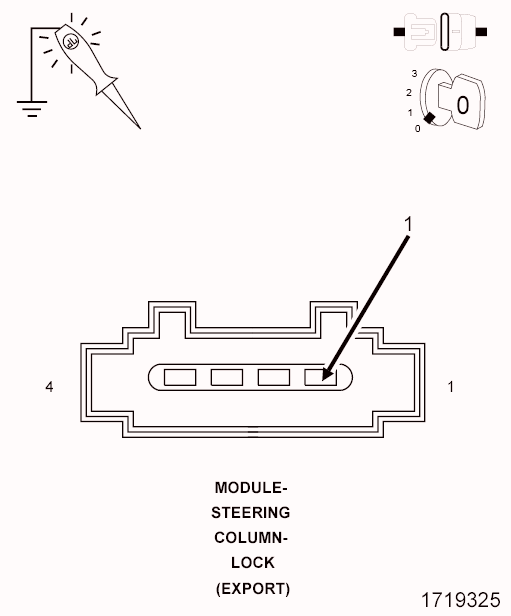

Fig 1: Checking Fused B(+) Circuit Open
Courtesy of CHRYSLER LLC
1. Gain access to the Steering Column Lock Module.
2. Disconnect the Steering Column Lock Module connector.
3. Using a 12-volt test light connected to ground, check the (A106) Fused B(+) circuit in the Steering Column Lock Module connector.
  Does the test light illuminate brightly?

  Yes
  - Go to step 3
  No
  - Repair the (A106) Fused B(+) circuit for an open.
  - Perform the WIN VERIFICATION TEST. See DTC-Based Diagnostics/NODE, Wireless Ignition (WIN) - Standard Procedure .
(A892) IGNITION SWITCH OUTPUT (KEY-IN) CIRCUIT OPEN

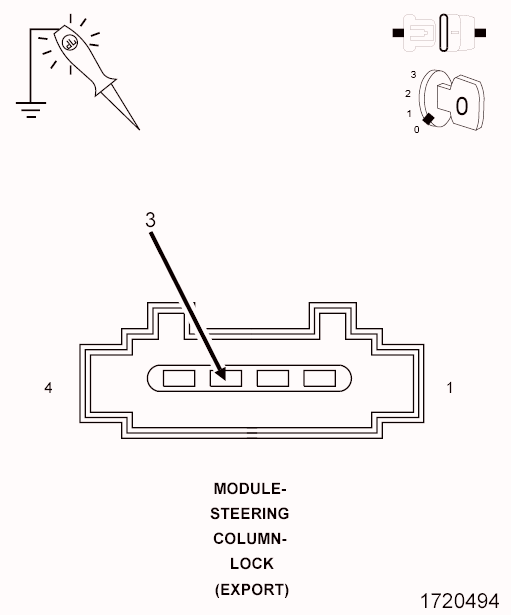

Fig 2: Checking Ignition Switch Output (Key-In) Circuit Open
Courtesy of CHRYSLER LLC
1. Make sure the ignition key is fully inserted into the ignition switch.
2. Using a 12-volt test light connected to ground, check the (A892) Ignition Switch Output (Key-In) circuit in the Steering Column Lock Module connector.
  Does the test light illuminate brightly?

  Yes
  - Go to step 4
  No
  - Repair the (A892) Ignition Switch Output (Key-In) circuit for an open.
  - Perform the WIN VERIFICATION TEST. See DTC-Based Diagnostics/NODE, Wireless Ignition (WIN) - Standard Procedure .
(Z906) GROUND CIRCUIT OPEN

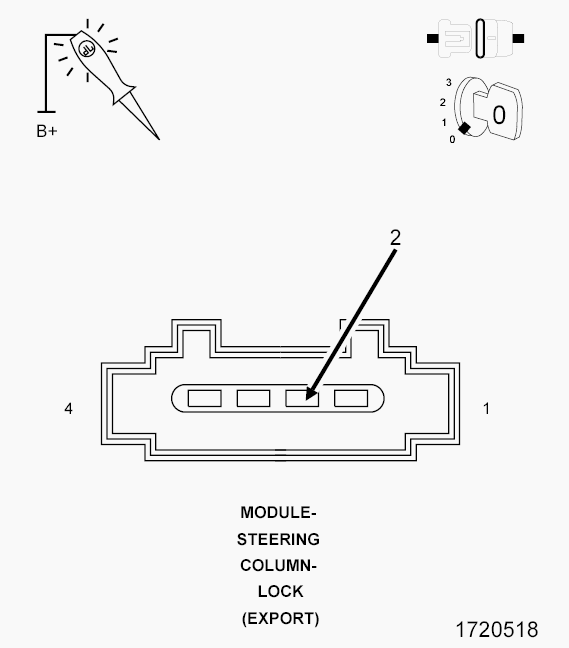

Fig 3: Checking Ground Circuit Open
Courtesy of CHRYSLER LLC
1. Using a 12-volt test light connected to 12-volts, check the (Z906) Ground circuit at the Steering Column Lock Module connector.
  Does the test light illuminate brightly?

  Yes
  - Go to step 5
  No
  - Repair the (Z906) Ground circuit for an open.
  - Perform the WIN VERIFICATION TEST. See DTC-Based Diagnostics/NODE, Wireless Ignition (WIN) - Standard Procedure .
(D508) COM-LIN TIRE PRESSURE MONITOR LAN CIRCUIT OPEN

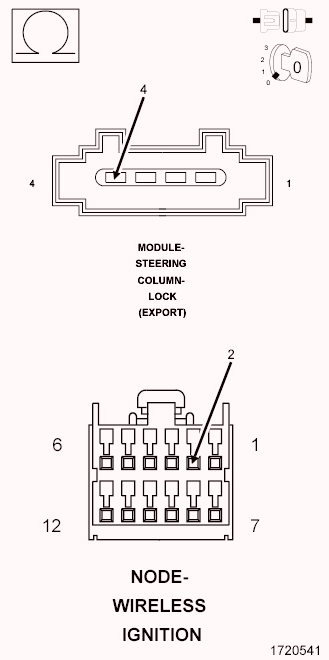

Fig 4: Checking COM-LIN Tire Pressure Monitor LAN Circuit Open
Courtesy of CHRYSLER LLC
1. Disconnect the WIN harness connector.
2. Measure the resistance of the (D508) COM-LIN Tire Pressure Monitor LAN circuit between the WIN and the Steering Column Lock Module connectors.
  Is the resistance below 1.0 Ohms?

  Yes
  - Replace the Steering Column Lock Module in accordance with the Service Information.
  - Perform the WIN VERIFICATION TEST. See DTC-Based Diagnostics/NODE, Wireless Ignition (WIN) - Standard Procedure .
  No
  - Repair the (D508) Tire Pressure Bus circuit for an open.
  - Perform the WIN VERIFICATION TEST. See DTC-Based Diagnostics/NODE, Wireless Ignition (WIN) - Standard Procedure .
