Diagnostic Test

CHECK FOR DTC B1D57-ADJUSTABLE PEDAL SENSOR CIRCUIT HIGH
NOTE: This DTC must be active for the results of this test to be valid.
1. Turn the ignition on.
2. With the scan tool, record and erase DTCs.
3. Cycle the ignition switch from off to on.
4. Cycle the Adjustable Pedals Switch forward and rearward.
5. With the scan tool, read DTCs.
  Does the scan tool display this DTC as active?

  Yes
  - Go to step 2
  No
  - The condition that caused the symptom is currently not present. Inspect the related wiring for a possible intermittent condition. Look for any chafed, pierced, pinched, or partially broken wires.
  - Refer to the APS INTERMITTENT CONDITION TEST. Refer to DTC-Based Diagnostics/MODULE, Front Control (FCM) - Standard Procedure
CHECK CONNECTOR/TERMINAL FOR DAMAGE
NOTE: Check all terminals for broken, bent, pushed out, or corroded terminals.
1. Turn the ignition off.
2. Inspect the Memory Seat Module C1 harness connector and the Adjustable Pedal Motor harness connector.
  Is there any connector or terminal damaged?

  Yes
  - Repair as necessary.
  - Perform the APS VERIFICATION TEST. Refer to DTC-Based Diagnostics/MODULE, Front Control (FCM) - Standard Procedure
  No
  - Go to step 3
CHECK (G11) ADJUSTABLE PEDALS SENSOR SUPPLY CIRCUIT FOR A SHORT TO VOLTAGE

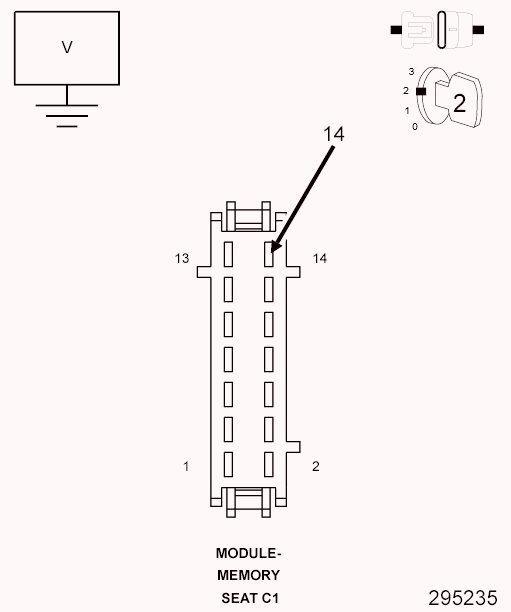

Fig 1: Checking Adjustable Pedals Sensor Supply Circuit For A Short To Voltage
Courtesy of CHRYSLER LLC
1. Disconnect the Memory Seat Module C1 harness connector.
2. Disconnect the Adjustable Pedal Motor harness connector.
3. Turn the ignition on.
4. Measure the voltage between the (G11) Adjustable Pedals Sensor Supply circuit and ground.
  Is voltage present?

  Yes
  - Repair the (G11) Adjustable Pedals Sensor Supply circuit for a short to voltage.
  - Perform the APS VERIFICATION TEST. Refer to DTC-Based Diagnostics/MODULE, Front Control (FCM) - Standard Procedure
  No
  - Go to step 4
CHECK (G12) ADJUSTABLE PEDALS SENSOR SIGNAL CIRCUIT FOR A SHORT TO VOLTAGE

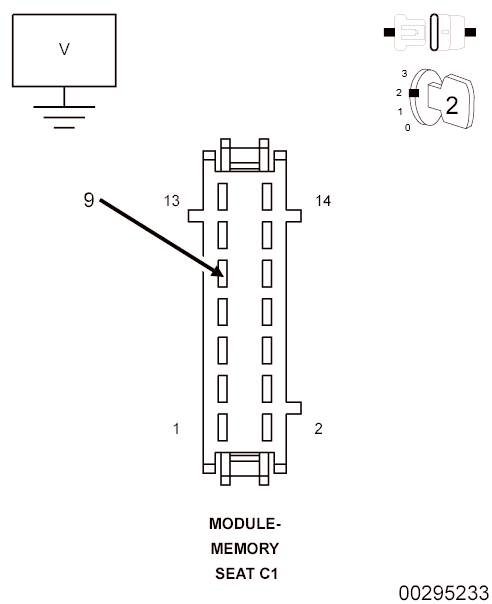

Fig 2: Checking Adjustable Pedals Sensor Signal Circuit For A Short To Voltage
Courtesy of CHRYSLER LLC
1. Measure the voltage between the (G12) Adjustable Pedals Sensor Signal circuit and ground.
  Is voltage present?

  Yes
  - Repair the (G12) Adjustable Pedals Sensor Signal circuit for a short to voltage.
  - Perform the APS VERIFICATION TEST. Refer to DTC-Based Diagnostics/MODULE, Front Control (FCM) - Standard Procedure
  No
  - Go to step 5
(G12) ADJUSTABLE PEDAL SENSOR SIGNAL SHORTED TO SENSOR SUPPLY

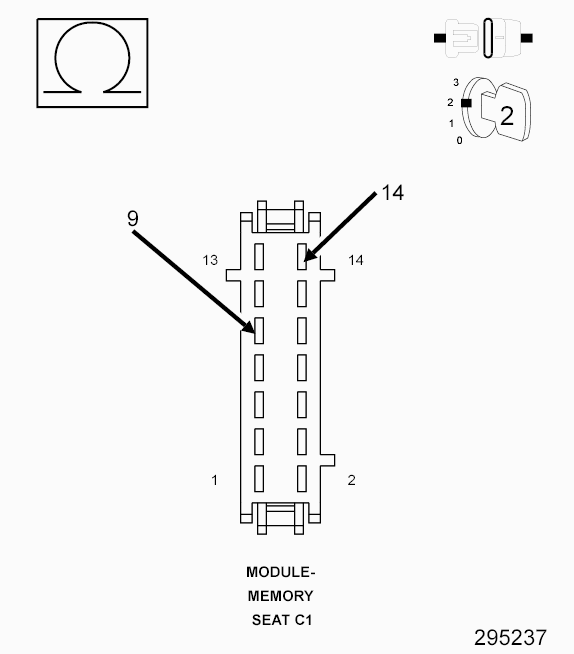

Fig 3: Checking Adjustable Pedal Sensor Signal Shorted To Sensor Supply
Courtesy of CHRYSLER LLC
1. Turn ignition off.
2. Measure the resistance between the (G12) Adjustable Pedals Sensor Signal circuit and the Sensor Supply circuit.
  Is the resistance below 100 ohms?

  Yes
  - Repair the (G12) Adjustable Pedals Sensor Signal circuit for a short to the Sensor Supply circuit.
  - Perform the APS VERIFICATION TEST. Refer to DTC-Based Diagnostics/MODULE, Front Control (FCM) - Standard Procedure
  No
  - Go to step 6
(G912) ADJUSTABLE PEDALS SENSOR RETURN CIRCUIT OPEN

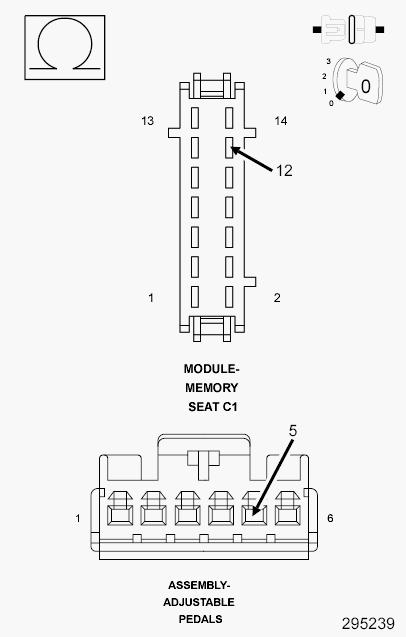

Fig 4: Checking Adjustable Pedals Sensor Return Circuit Open
Courtesy of CHRYSLER LLC
1. Measure the resistance of the (G912) Adjustable Pedals Sensor Return circuit between the Memory Seat Module C1 harness connector and the Adjustable Pedal Motor harness connector.
  Is the resistance below 5 ohms?

  Yes
  - Go to step 7
  No
  - Repair the (G912) Adjustable Pedals Sensor Return circuit for an open.
  - Perform the APS VERIFICATION TEST. Refer to DTC-Based Diagnostics/MODULE, Front Control (FCM) - Standard Procedure
CHECK (G12) ADJUSTABLE PEDALS SENSOR SIGNAL CIRCUIT VOLTAGE

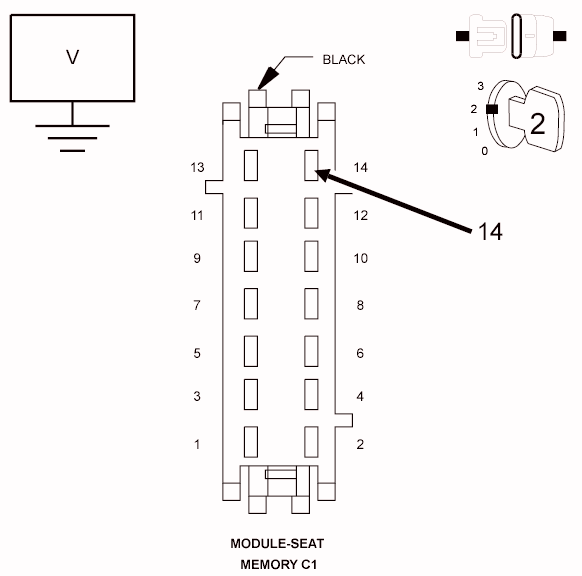

Fig 5: Checking Adjustable Pedals Sensor Signal Circuit Voltage
Courtesy of CHRYSLER LLC
1. Turn the ignition off.
2. Reconnect the Adjustable Pedal Motor harness connector.
3. Turn the ignition on.
4. Measure the voltage of the (G12) Adjustable Pedals Sensor Signal circuit in the Memory Seat Module C1 harness connector.
  Is the voltage below 4.0 volts?

  Yes
  - Replace and reprogram the Memory Seat Module in accordance with the Service Information.
  - Perform the APS VERIFICATION TEST. Refer to DTC-Based Diagnostics/MODULE, Front Control (FCM) - Standard Procedure
  No
  - Replace the Adjustable Pedals Sensor in accordance with the Service Information.
  - Perform the APS VERIFICATION TEST. Refer to DTC-Based Diagnostics/MODULE, Front Control (FCM) - Standard Procedure
