Door Locks
>>
Driver Door Module (DDM) - Electrical Diagnostics
>>
DTC Troubleshooting
>>
B1D4D-Memory Switch Input Circuit Stuck
>>
Circuit Schematic
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Circuit Schematic

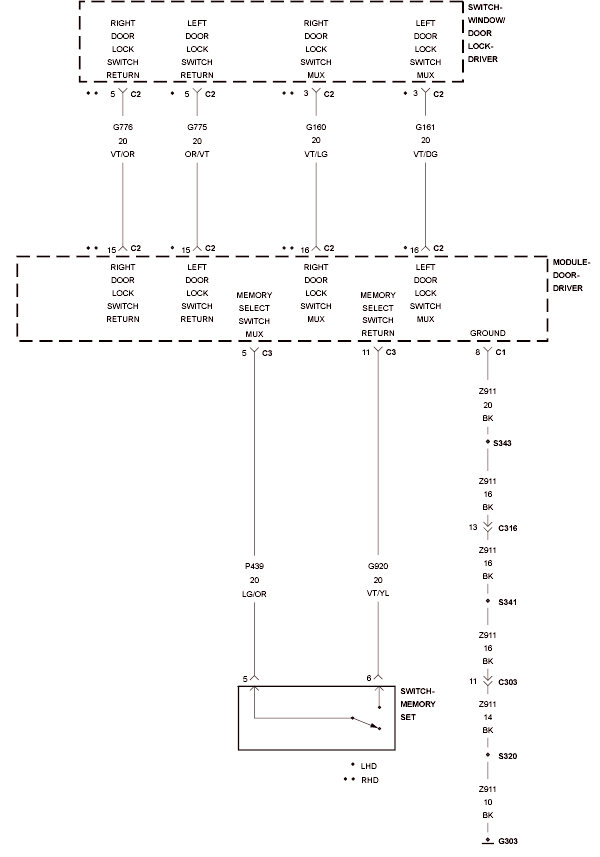

Fig 1: Door Lock Switch MUX/Return Circuit Schematic
