Diagnostic Test

CHECK FOR RELATED DIAGNOSTIC TROUBLE CODES
1. Turn the ignition on.
2. With the scan tool, read DTC's.
  Does the scan tool display any seat position sensor DTC's?

  Yes
  - Diagnose and repair the other DTC(s) first. See DTC-Based Diagnostics/MODULE, Memory Seat (MSMD) - Diagnosis and Testing .
  No
  - Go to step 2
TEST FOR INTERMITTENT CONDITION
1. Turn the ignition on.
2. With the scan tool, record and erase DTC's
3. Move the Seat Switch in the Horizontal position three times.
4. With the scan tool, read DTC's.
  Does the scan tool display B1D7B-SEAT HORIZONTAL MOTOR CONTROL CIRCUIT PERFORMANCE?

  Yes
  - Go to step 3
  No
  - The conditions that caused this code to set are not present at this time. Using the SYSTEM WIRING DIAGRAMS as a guide, inspect the wiring and connectors.
  - Perform POWER SEAT SYSTEM VERIFICATION TEST. See DTC-Based Diagnostics/MODULE, Memory Seat (MSMD) - Standard Procedure .
CHECK THE (G401) DRIVER SEAT HORIZONTAL POSITION SENSE VOLTAGE

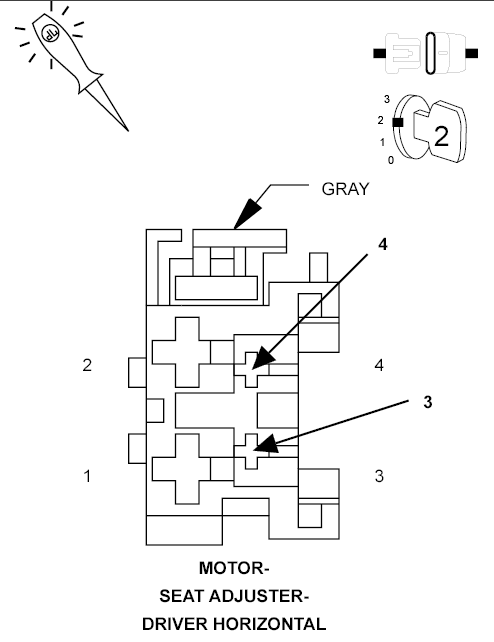

Fig 1: Checking Driver Seat Horizontal Position Sense Voltage
Courtesy of CHRYSLER LLC
1. Disconnect the Driver Horizontal Seat Adjuster Motor.
  NOTE: Check connectors - Clean and repair as necessary.
2. Move the Seat Switch in the Horizontal position during the next step.
3. Using a 12-volt test light connect one lead to the (G401) Driver Seat Horizontal Position Sense circuit and the other lead to Driver Seat Horizontal Sensor Ground at the Driver Horizontal Seat Adjuster Motor connector.
  Does the test light illuminate for approximately two seconds then turn off with the seat switch engaged?

  Yes
  - Go to step 4
  No
  - Go to step 5
CHECK THE DRIVER SEAT HORIZONTAL FORWARD/REARWARD DRIVER VOLTAGE

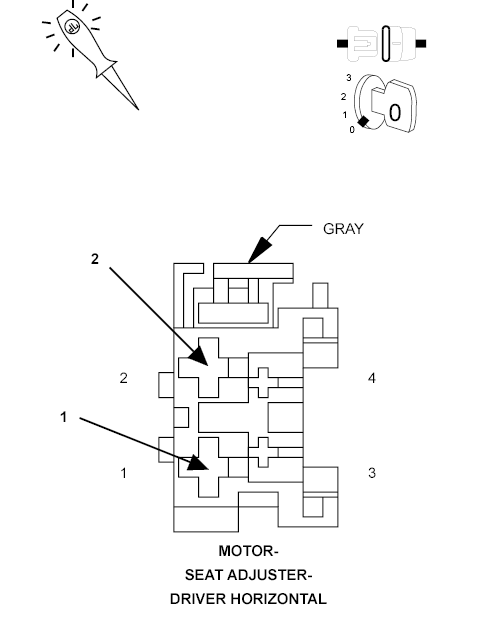

Fig 2: Checking Driver Seat Horizontal Forward/Rearward Driver Voltage
Courtesy of CHRYSLER LLC
1. Move the Seat Switch in the Horizontal position during the next step.
2. Using a 12-volt test light connect one lead to the (P115) Driver Seat Horizontal Forward Driver circuit and the other lead to (P117) Driver Seat Horizontal Rearward Driver circuit at the Driver Horizontal Seat Adjuster Motor connector.
  Does the test light illuminate with the seat switch engaged?

  Yes
  - Replace the track/horizontal motor assembly in accordance with the Service Information.
  - Perform POWER SEAT SYSTEM VERIFICATION TEST. See DTC-Based Diagnostics/MODULE, Memory Seat (MSMD) - Standard Procedure .
  No
  - Go to step 7
CHECK THE (G401) DRIVER SEAT HORIZONTAL POSITION SENSE WIRE FOR AN OPEN

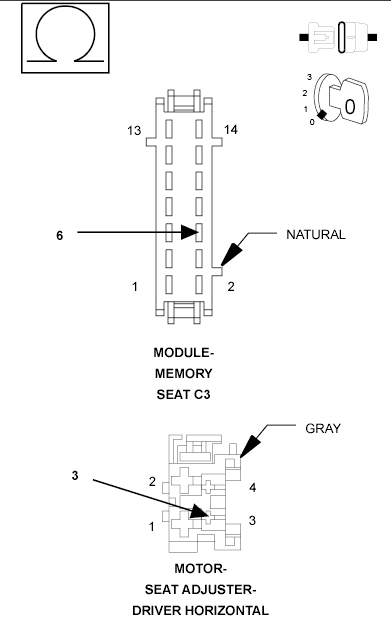

Fig 3: Checking Driver Seat Horizontal Position Sense Wire For An Open
Courtesy of CHRYSLER LLC
1. Disconnect the Memory Seat Module C3 connector.
  NOTE: Check connectors - Clean and repair as necessary.
2. Measure the resistance of the (G401) Driver Seat Horizontal Position Sense circuit at the Driver Horizontal Seat Adjuster Motor connector to the C3 connector.
  Is the resistance above 1.0 ohm?

  Yes
  - Repair the (G401) Driver Seat Horizontal Position Sense circuit for an open.
  - Perform POWER SEAT SYSTEM VERIFICATION TEST. See DTC-Based Diagnostics/MODULE, Memory Seat (MSMD) - Standard Procedure .
  No
  - Go to step 6
CHECK THE (G491) DRIVER SEAT HORIZONTAL SENSOR GROUND FOR AN OPEN

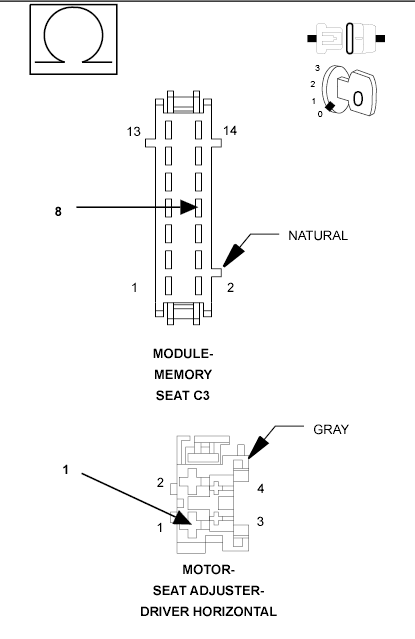

Fig 4: Checking Driver Seat Horizontal Sensor Ground For An Open
Courtesy of CHRYSLER LLC
1. Measure the resistance of the (G491) Driver Seat Horizontal Sensor Ground circuit at the Driver Horizontal Seat Adjuster Motor connector to the C3 connector.
  Is the resistance above 1.0 ohm?

  Yes
  - Repair the (G491) Driver Seat Horizontal Senor Ground circuit for an open.
  - Perform POWER SEAT SYSTEM VERIFICATION TEST. See DTC-Based Diagnostics/MODULE, Memory Seat (MSMD) - Standard Procedure .
  No
  - Replace the Memory Seat Module in accordance with the Service Information.
  - Perform POWER SEAT SYSTEM VERIFICATION TEST. See DTC-Based Diagnostics/MODULE, Memory Seat (MSMD) - Standard Procedure .
CHECK THE (P115) DRIVER SEAT HORIZONTAL FORWARD DRIVER WIRE FOR AN OPEN

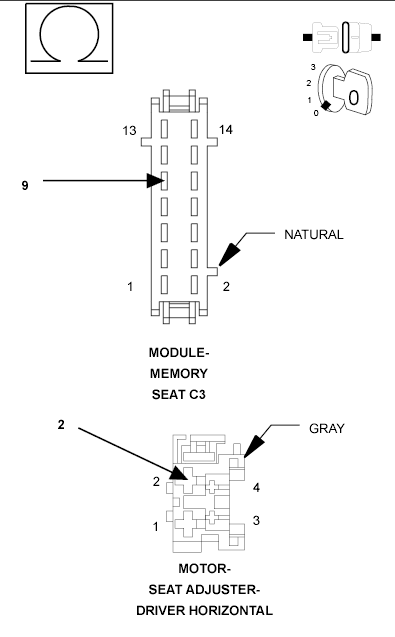

Fig 5: Checking Driver Seat Horizontal Forward Driver Wire For An Open
Courtesy of CHRYSLER LLC
1. Disconnect the Memory Seat Module C3 connector.
  NOTE: Check connectors - Clean and repair as necessary.
2. Measure the resistance of the (P115) Driver Seat Horizontal Forward Driver circuit at the Driver Horizontal Seat Adjuster Motor connector to the C3 connector.
  Is the resistance above 1.0 ohm?

  Yes
  - Repair the (P115) Driver Seat Horizontal Forward Driver circuit for an open.
  - Perform POWER SEAT SYSTEM VERIFICATION TEST. See DTC-Based Diagnostics/MODULE, Memory Seat (MSMD) - Standard Procedure .
  No
  - Go to step 8
CHECK THE (P117) DRIVER SEAT HORIZONTAL REARWARD DRIVER FOR AN OPEN

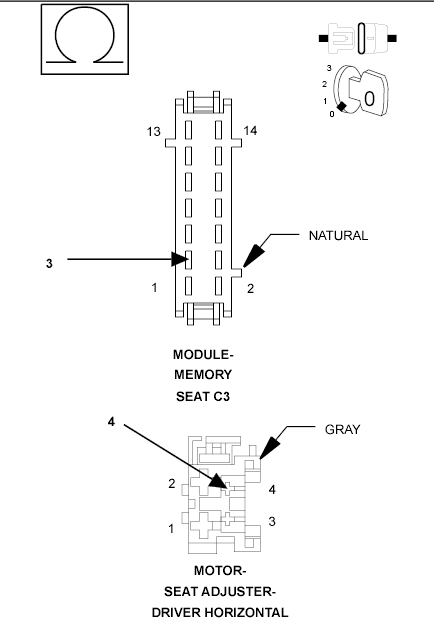

Fig 6: Checking Driver Seat Horizontal Rearward Driver For An Open
Courtesy of CHRYSLER LLC
1. Measure the resistance of the (P117) Driver Seat Horizontal Rearward Driver circuit at the Driver Horizontal Seat Adjuster Motor connector to the C3 connector.
  Is the resistance above 1.0 ohm?

  Yes
  - Repair the (P117) Driver Seat Horizontal Rearward Driver circuit for an open.
  - Perform POWER SEAT SYSTEM VERIFICATION TEST. See DTC-Based Diagnostics/MODULE, Memory Seat (MSMD) - Standard Procedure .
  No
  - Replace the Memory Seat Module in accordance with the Service Information.
  - Perform POWER SEAT SYSTEM VERIFICATION TEST. See DTC-Based Diagnostics/MODULE, Memory Seat (MSMD) - Standard Procedure .
