Diagnostic Test

TEST FOR INTERMITTENT CONDITION
1. Turn the ignition on.
2. With the scan tool, record and erase the DTCs.
3. Try to operate the Driver Window up and down several times.
4. Wait 30 seconds.
5. With the scan tool, read the DTCs.
  Does the scan tool display B1854-DRIVER WINDOW CONTROL CIRCUIT LOW?

  Yes
  - Go to step 2
  No
  - The conditions that caused this code to set are not present at this time. Using the SYSTEM WIRING DIAGRAMS as a guide, inspect the wiring and connectors.
  - Perform the BODY VERIFICATION TEST. Refer to DTC-Based Diagnostics/MODULE, Front Control (FCM) - Standard Procedure .
WINDOW MOTOR SHORTED

Fig 1: Checking Window Motor Shorted
Courtesy of CHRYSLER LLC
1. With the scan tool, erase the DTCs.
2. Turn the ignition off.
3. Disconnect the Driver Window Motor connector.
4. Turn the ignition on.
5. Operate the driver window switch up and down several times.
6. With the scan tool, read the active DTCs.
  Does the scan tool display B1854-DRIVER WINDOW CONTROL CIRCUIT LOW?

  No
  - Replace the Window Motor in accordance with the Service Information.
  - Perform the BODY VERIFICATION TEST. Refer to DTC-Based Diagnostics/MODULE, Front Control (FCM) - Standard Procedure .
  Yes
  - Go to step 3
(Q311) DRIVER WINDOW EXPRESS UP DRIVER CIRCUIT SHORT TO GROUND

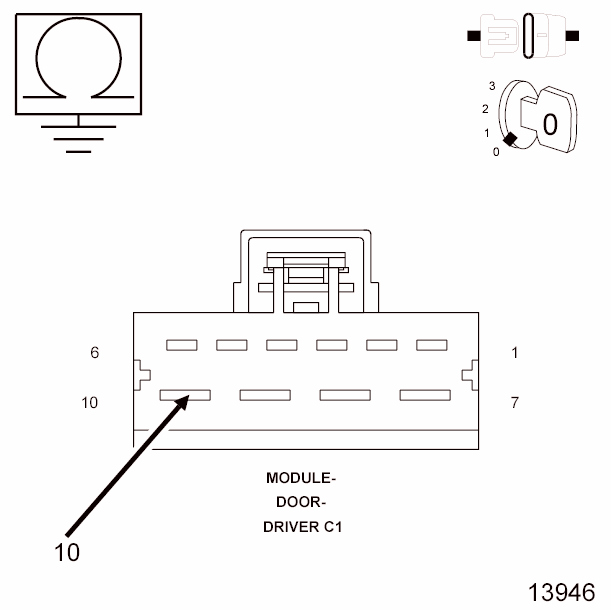

Fig 2: Checking Driver Window Express Up Driver Circuit For Short To Ground
Courtesy of CHRYSLER LLC
1. Turn the ignition off.
2. Disconnect the Driver Door Module C1 connector.
3. Measure the resistance between Ground and the (Q311) Driver Window Express Up Driver circuit.
  Is the resistance below 1,000 ohms?

  Yes
  - Repair the (Q311) Driver Window Express Up Driver circuit for a short to ground.
  - Perform the BODY VERIFICATION TEST. Refer to DTC-Based Diagnostics/MODULE, Front Control (FCM) - Standard Procedure .
  No
  - Go to step 4
(Q311) DRIVER WINDOW EXPRESS UP DRIVER CIRCUIT SHORT TO (Q321) DRIVER WINDOW EXPRESS DOWN DRIVER CIRCUIT

Fig 3: Checking Driver Window Express Down Driver Circuit For Short To Driver Window Express Up Driver Circuit
Courtesy of CHRYSLER LLC
1. Measure the resistance between the (Q321) Driver Window Express Down Driver circuit and the (Q311) Driver Window Express Up Driver circuit.
  Is the resistance below 1,000 ohms?

  Yes
  - Repair the (Q321) Driver Window xpress Down Driver circuit for a short to the (Q311) Driver Window Express Up Driver circuit.
  - Perform the BODY VERIFICATION TEST. Refer to DTC-Based Diagnostics/MODULE, Front Control (FCM) - Standard Procedure .
  No
  - Replace the Driver Door Module in accordance with the Service Information.
  - Perform the BODY VERIFICATION TEST. Refer to DTC-Based Diagnostics/MODULE, Front Control (FCM) - Standard Procedure .
