Driver Door Module (DDM) - Electrical Diagnostics
>>
DTC Troubleshooting
>>
B1D1B-Driver Mirror Motor Common Control Circuit Low
>>
Circuit Schematic
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Circuit Schematic

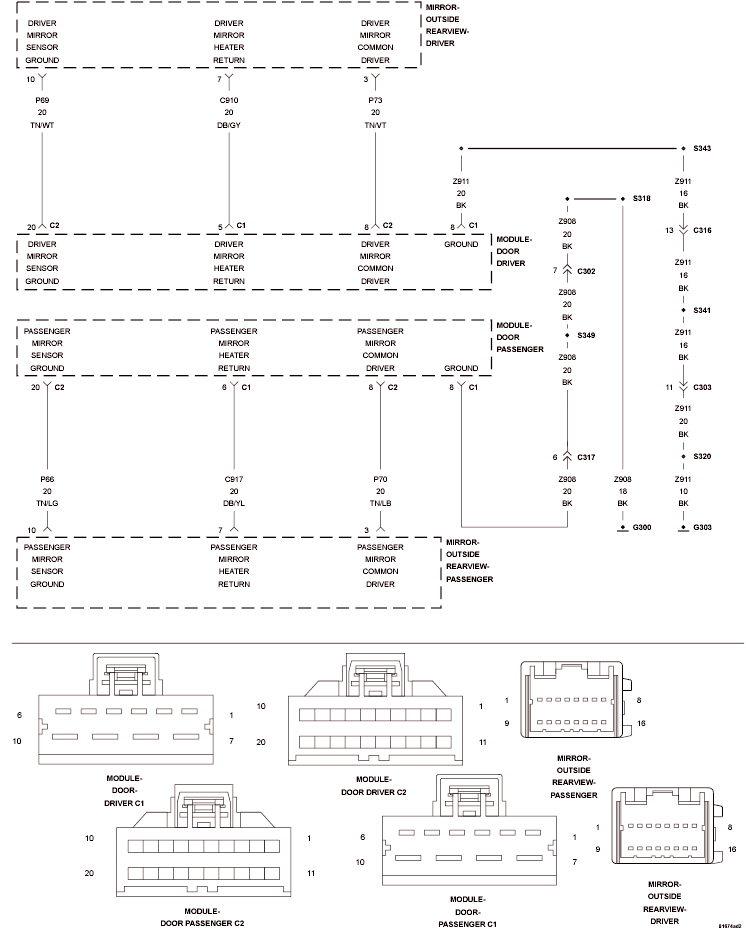

Fig 1: Driver Mirror Sensor/Heater/Common Circuit Schematic
Courtesy of CHRYSLER LLC
Courtesy of CHRYSLER LLC
