B212C-Ignition Run/Start Input Circuit Open
>>
Circuit Schematic
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Circuit Schematic

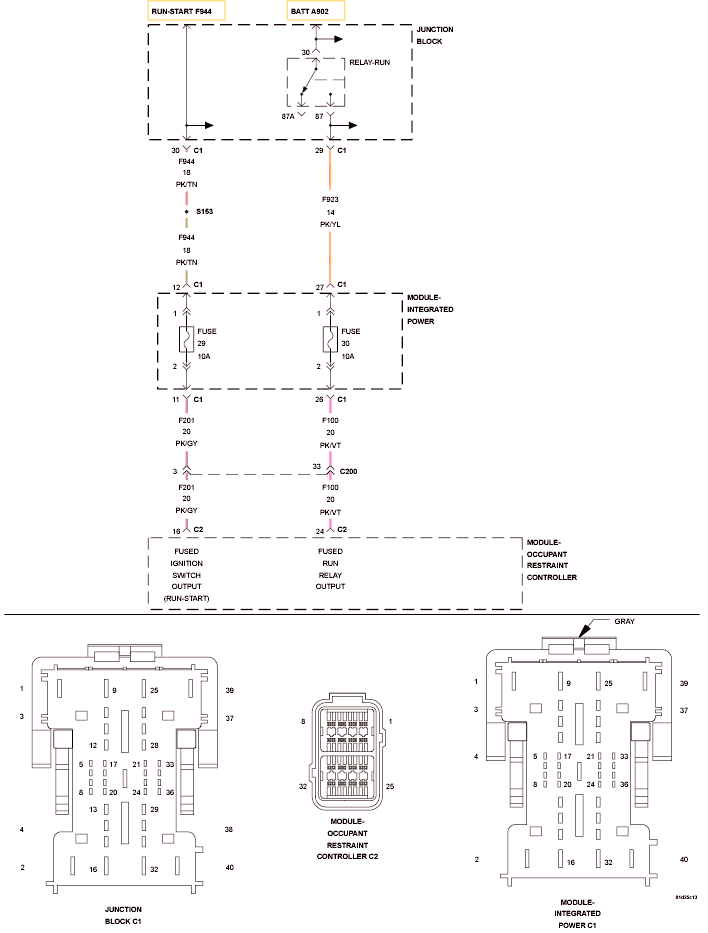

Fig 1: Fused Run Relay & Fused Ignition Switch Output (Run/Start) Circuit Schematic
Courtesy of CHRYSLER LLC
Courtesy of CHRYSLER LLC
