Commander Overland, RWD
>>
Repair and Diagnosis (Single Page)
>>
Transmission
>>
Automatic Trans
>>
(Powertrain Control Module (Pcm) - Electrical Diagnostics - 545RFE Automatic Transmission)
>>
DTC Troubleshooting
>>
P0721-Output Speed Sensor Circuit Performance
>>
Circuit Schematic
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Circuit Schematic

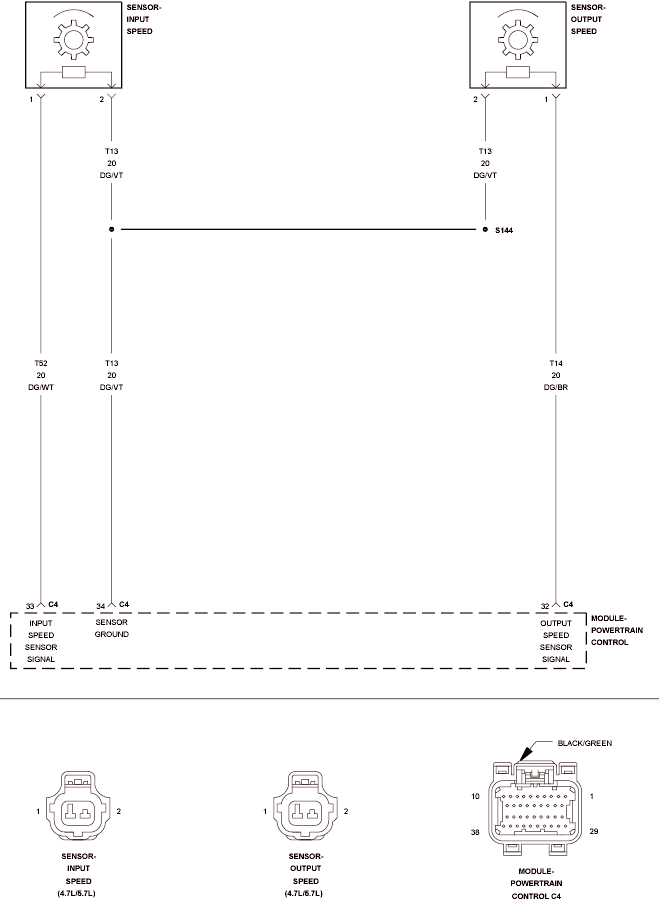

Fig 1: Input Speed Signal Circuit Schematic
Courtesy of CHRYSLER LLC
Courtesy of CHRYSLER LLC
