(Powertrain Control Module (Pcm) - Electrical Diagnostics - 545RFE Automatic Transmission)
>>
DTC Troubleshooting
>>
P1794-Speed Sensor Ground Error
>>
Circuit Schematic
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Circuit Schematic

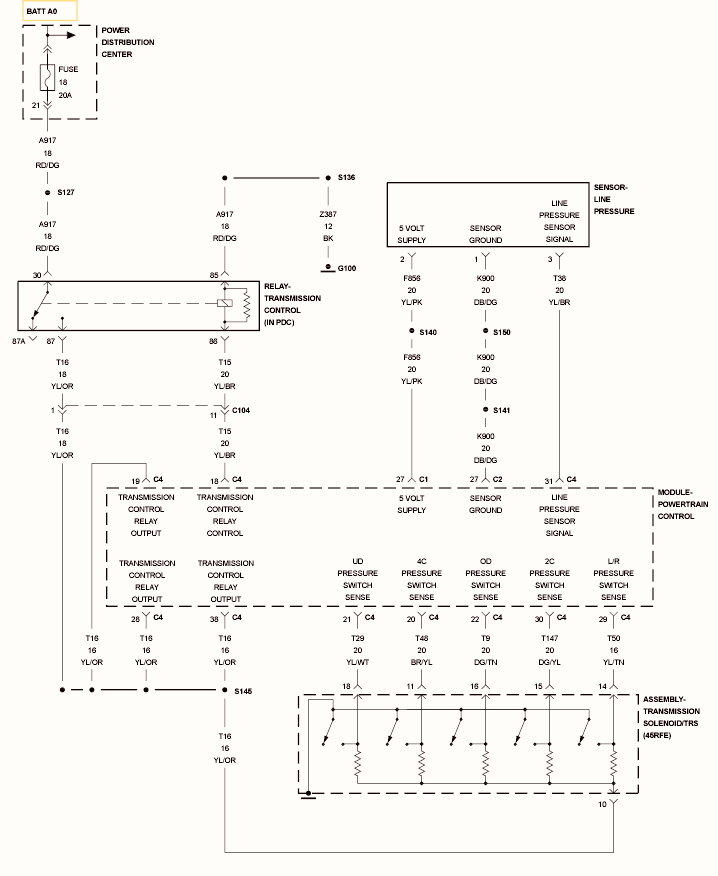

Fig 1: L/R Pressure Control Circuit Schematic
Courtesy of CHRYSLER LLC
Courtesy of CHRYSLER LLC
