Diagnostic Test

CHECK DTC CONDITIONS
NOTE: If both DTCs C140A and C1415 are present, check the FDCM fuse and B(+) supply to the Integrated Power Module (IPM) before continuing with diagnosis.
1. Ignition on, engine not running.
2. With the scan tool, read DTCs in the Final Drive Control Module.
  Pick the answer that best describes DTC condition?

  If DTCs C140A and C1415 are both present,
  - Go to step 2
  If DTC C140A is active,
  - Go to step 4
  If DTC C140A is stored (not active),
  - Go to step 10

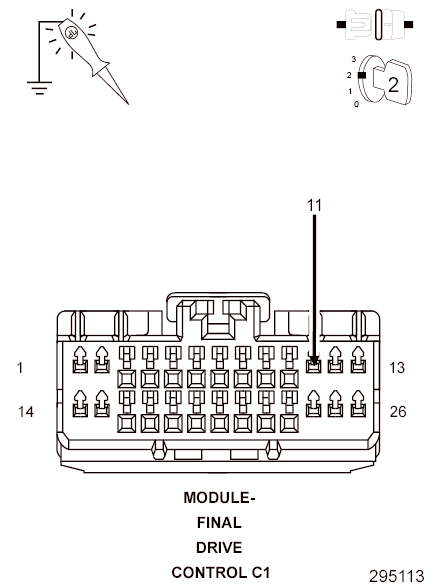

(A909) FUSED B(+) CIRCUIT FOR VOLTAGE

Fig 1: Checking Fused B(+) Circuit For Voltage
Courtesy of CHRYSLER LLC
1. Turn the ignition off to the lock position
2. Disconnect the FDCM C1 harness connector.
3. Ignition on, engine not running.
4. Using a 12-volt test light connected to ground, check the (A909) Fused B(+) circuit in the FDCM harness connector.
  NOTE: The test light must illuminate brightly. Compare the brightness to that of a direct connection to the battery.

  Does the test light illuminate brightly?

  Yes
  - Go to step 4
  No
  - Go to step 3

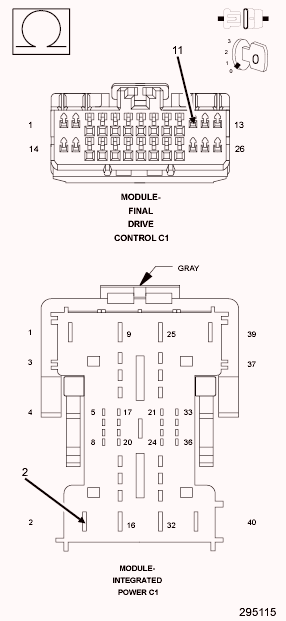

(A909) FUSED B(+) CIRCUIT FOR AN OPEN

Fig 2: Checking Fused B(+) Circuit For An Open
Courtesy of CHRYSLER LLC
1. Turn the ignition off to the lock position
2. Disconnect the IPM C1 harness connector.
3. Measure the resistance of the (A909) Fused B(+) circuit between the IPM C1 harness connector and the FDCM C1 harness connector.
  Is the resistance above 5.0 ohms?

  Yes
  - Repair the (A909) Fused B(+) circuit for an open.
  - Perform TRANSFER CASE VERIFICATION TEST. See DTC-Based Diagnostics/MODULE, Final Drive Control (FDCM) - Standard Procedure .
  No
  - Replace the Integrated Power Module in accordance with the Service Information.
  - Perform TRANSFER CASE VERIFICATION TEST. See DTC-Based Diagnostics/MODULE, Final Drive Control (FDCM) - Standard Procedure .

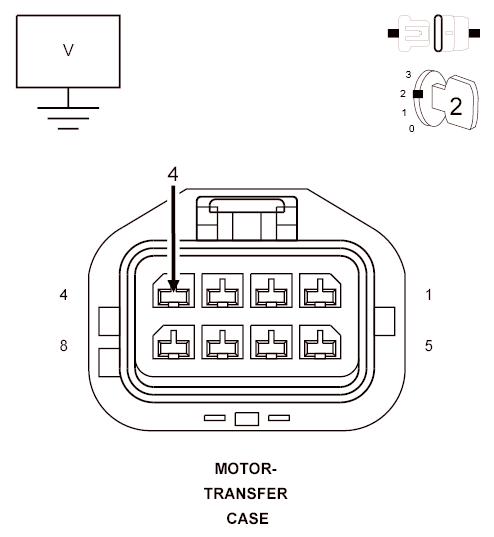

(T315) SHIFT MOTOR CONTROL A CIRCUIT SHORTED TO VOLTAGE

Fig 3: Checking Shift Motor Control A Circuit Shorted To Voltage
Courtesy of CHRYSLER LLC
1. Turn the ignition off to the lock position
2. Disconnect the Transfer Case Motor harness connector.
3. Ignition on, engine not running.
4. Measure the voltage of the (T315) Shift Motor Control A circuit.
  Is there any voltage present?

  Yes
  - Repair the (T315) Shift Motor Control A circuit for a short to voltage.
  - Perform TRANSFER CASE VERIFICATION TEST. See DTC-Based Diagnostics/MODULE, Final Drive Control (FDCM) - Standard Procedure .
  No
  - Go to step 5

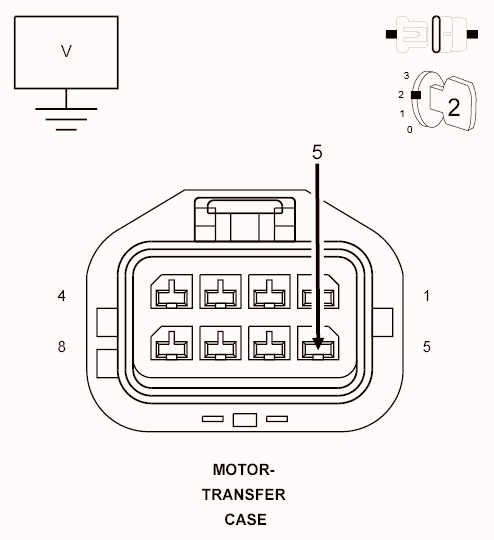

(T316) SHIFT MOTOR CONTROL B CIRCUIT SHORTED TO VOLTAGE

Fig 4: Checking Shift Motor Control B Circuit Shorted To Voltage
Courtesy of CHRYSLER LLC
1. Measure the voltage of the (T316) Shift Motor Control B circuit.
  Is there any voltage present?

  Yes
  - Repair the (T316) Shift Motor Control B circuit for a short to voltage.
  - Perform TRANSFER CASE VERIFICATION TEST. See DTC-Based Diagnostics/MODULE, Final Drive Control (FDCM) - Standard Procedure .
  No
  - Go to step 6

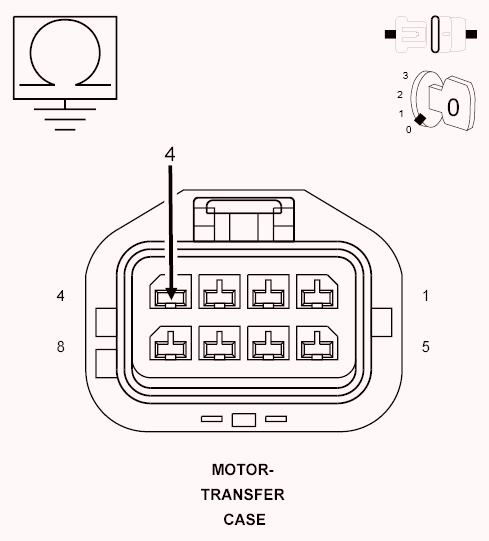

(T315) SHIFT MOTOR CONTROL A CIRCUIT SHORTED TO GROUND

Fig 5: Checking Shift Motor Control A Circuit Shorted To Ground
Courtesy of CHRYSLER LLC
1. Measure the resistance between ground and the (T315) Shift Motor Control A circuit.
  Is the resistance below 5.0 ohms?

  Yes
  - Repair the (T315) Shift Motor Control A circuit for a short to ground.
  - Perform TRANSFER CASE VERIFICATION TEST. See DTC-Based Diagnostics/MODULE, Final Drive Control (FDCM) - Standard Procedure .
  No
  - Go to step 7

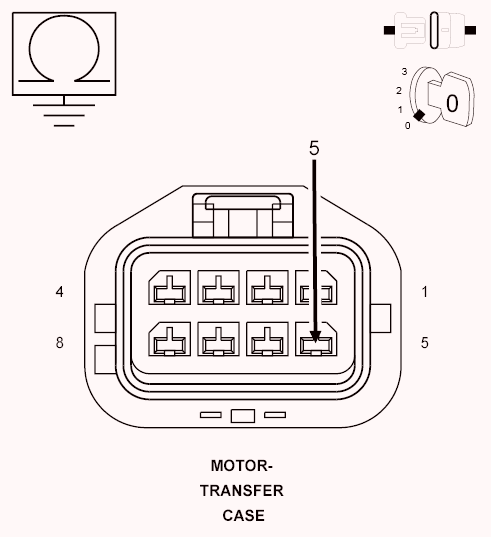

(T316) SHIFT MOTOR CONTROL B CIRCUIT SHORTED TO GROUND

Fig 6: Checking Shift Motor Control B Circuit Shorted To Ground
Courtesy of CHRYSLER LLC
1. Measure the resistance between ground and the (T316) Shift Motor Control B circuit.
  Is the resistance below 5.0 ohms?

  Yes
  - Repair the (T316) Shift Motor Control B circuit for a short to ground.
  - Perform TRANSFER CASE VERIFICATION TEST. See DTC-Based Diagnostics/MODULE, Final Drive Control (FDCM) - Standard Procedure .
  No
  - Go to step 8

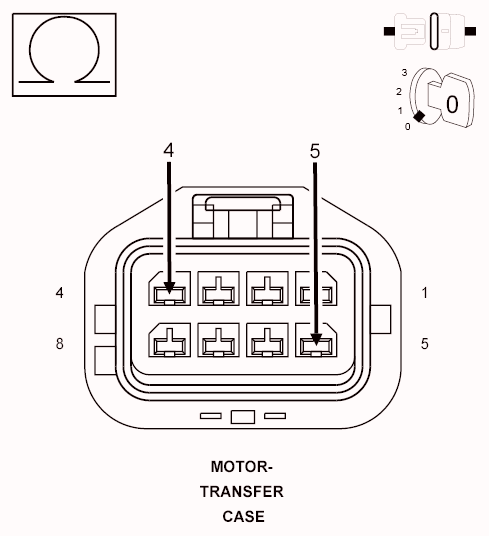

(T315) SHIFT MOTOR CONTROL A CIRCUIT SHORTED TO (T316) SHIFT MOTOR CONTROL B CIRCUIT

Fig 7: Checking Shift Motor Control A Circuit Shorted To Shift Motor Control B Circuit
Courtesy of CHRYSLER LLC
1. Measure the resistance between the (T315) Shift Motor Control A circuit and the (T316) Shift Motor Control B circuit at the Transfer Case Motor harness connector.
  Is the resistance below 5.0 ohms?

  Yes
  - Repair the (T315) Shift Motor Control A circuit for a short to the (T316) Shift Motor Control B circuit.
  - Perform TRANSFER CASE VERIFICATION TEST. See DTC-Based Diagnostics/MODULE, Final Drive Control (FDCM) - Standard Procedure .
  No
  - Go to step 9
TRANSFER CASE MOTOR
1. At the Transfer Case Motor, measure the resistance between the (T315) Shift Motor Control A circuit and the (T316) Shift Motor Control B circuit.
  Is the resistance below 5.0 ohms?

  Yes
  - Replace the shorted Transfer Case Motor in accordance with the Service Information.
  - Perform TRANSFER CASE VERIFICATION TEST. See DTC-Based Diagnostics/MODULE, Final Drive Control (FDCM) - Standard Procedure .
  No
  - Replace the Final Drive Control Module (FDCM) in accordance with the Service Information.
  - Perform TRANSFER CASE VERIFICATION TEST. See DTC-Based Diagnostics/MODULE, Final Drive Control (FDCM) - Standard Procedure .
INTERMITTENT WIRING AND CONNECTORS
1. The conditions necessary to set this DTC are not present at this time.
2. Using the SYSTEM WIRING DIAGRAMS as a guide, inspect the wiring and connectors.
3. While monitoring the scan tool data relative to this circuit, wiggle test the wiring and connectors.
4. Look for the data to change or for the DTC to reset during the wiggle test.
  Were any problems found?

  Yes
  - Repair as necessary.
  - Perform TRANSFER CASE VERIFICATION TEST. See DTC-Based Diagnostics/MODULE, Final Drive Control (FDCM) - Standard Procedure .
  No
  - Test complete.
