2009
>>
Commander Overland, RWD
>>
Repair and Diagnosis
>>
Body & Frame
>>
Windows
>>
Passenger Door Module (PDM) - Electrical Diagnostics
>>
DTC Troubleshooting
>>
B1808-Passenger Door Lock/Unlock Switch Circuit Stuck Lock
>>
Circuit Schematic
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Circuit Schematic

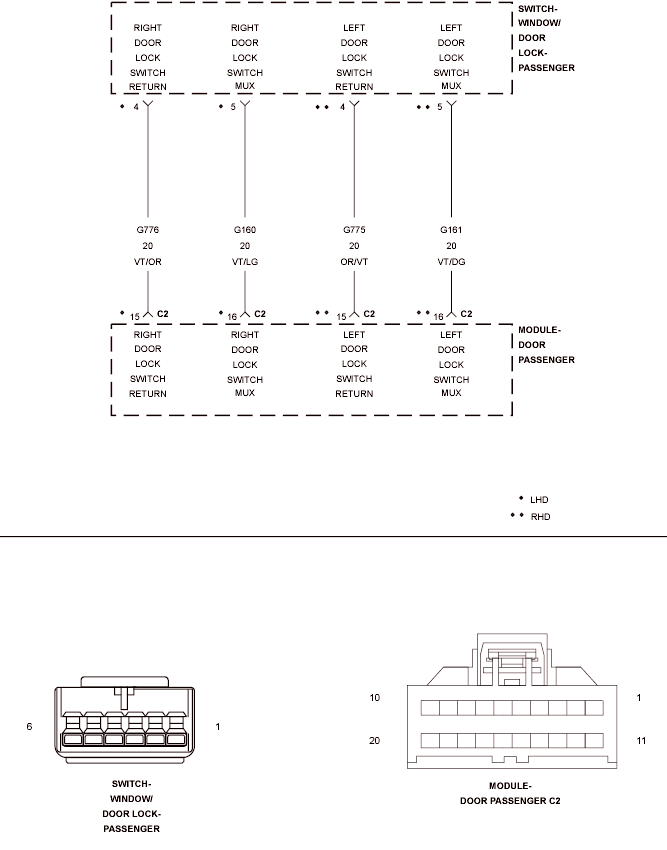

Fig 1: Door Lock Switch MUX Return Schematic
