DTCS P0125 To P0196 - NGC
>>
P0196-Engine Oil Temperature Sensor Circuit Performance
>>
Circuit Schematic
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Circuit Schematic

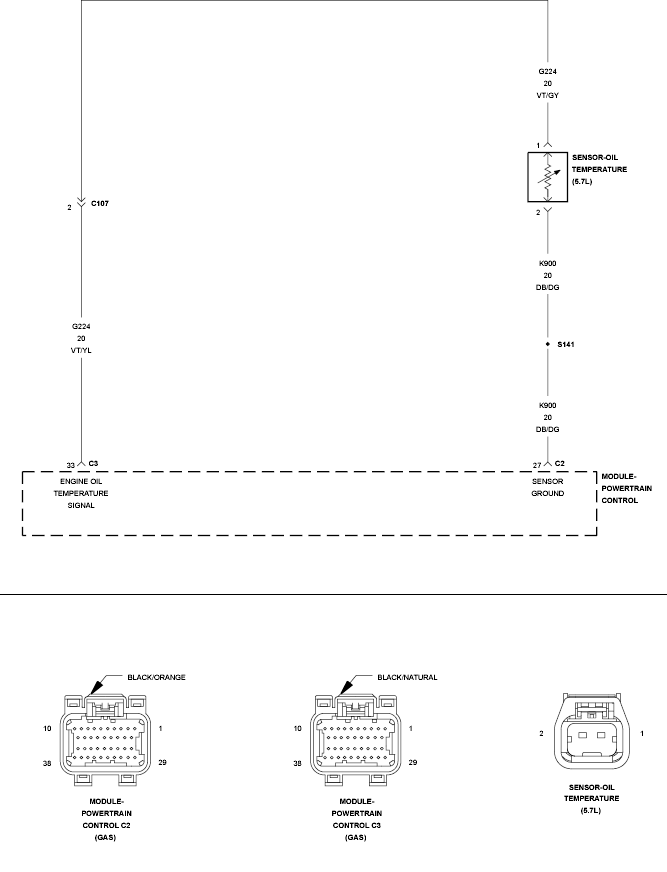

Fig 1: Engine Oil Temperature Circuit Schematic
Courtesy of CHRYSLER LLC
Courtesy of CHRYSLER LLC
