INSULATOR, Engine Mount, Right: Installation: Installation

WARNING: This page is about a different car, the 2009 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

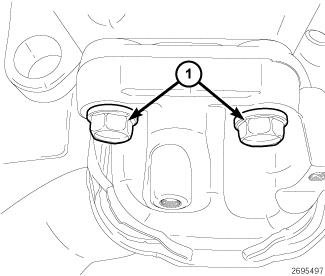

Fig 1: Right Engine Mount Retaining Bolts
GC0095678Courtesy of CHRYSLER LLC
  1. Position the right engine mount, install retaining bolts (1) and tighten to 58 N.m (42 ft. lbs.).
  2. Lower the vehicle.
  3. Lower the engine into position and remove Engine Support Fixture 8534B.
  4. Raise and support the vehicle.

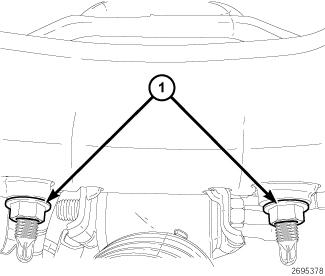

    Fig 2: Right Lower Engine Mount Retaining Nuts
    GC0095674Courtesy of CHRYSLER LLC
  5. Install the left lower engine mount retaining nuts (1) and tighten to 60 N.m (44 ft. lbs.).

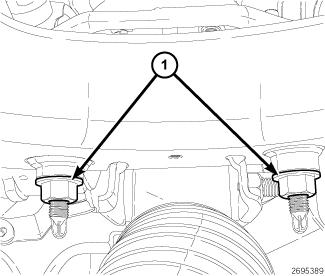

    Fig 3: Left Lower Engine Mount Retaining Nuts
    GC0095675Courtesy of CHRYSLER LLC
  6. Install the right lower engine mount retaining nuts (1) and tighten to 60 N.m (44 ft. lbs.).

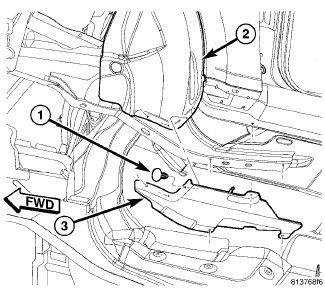

    Fig 4: Removing/Installing Shield
    GC0080689Courtesy of CHRYSLER LLC
  7. Position the right lower front wheelhouse shield and install the push-pins (1), (left side shown in illustration, right side similar).
  8. Install the tire and wheel.

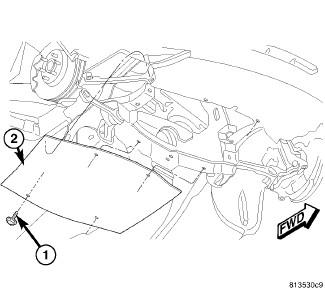

    Fig 5: Rear Belly Pan
    GC0080680Courtesy of CHRYSLER LLC
  9. Install the belly pan (2).
  10. Lower the vehicle.

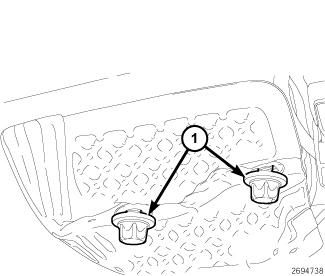

    Fig 6: Right Engine Mount Heat Shield Retaining Bolts
    GC0095677Courtesy of CHRYSLER LLC
  11. Position the right engine mount heat shield, install retaining bolts (1) and tighten to 8 N.m (70 in. lbs.).

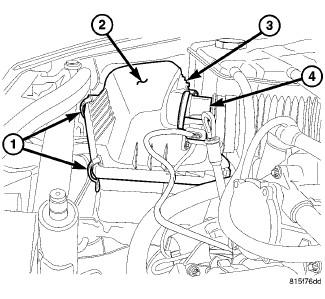

    Fig 7: AIR CLEANER COVER
    GC0095660Courtesy of CHRYSLER LLC
  12. Install the air cleaner housing (2) and duct.
    Fig 8: Strut Tower Support
    GC0081931Courtesy of CHRYSLER LLC
    1 - AIR CLEANER OUTLET TUBE
    2 - STRUT TOWER SUPPORT
    3 - TURBOCHARGER
    4 - CHARGE AIR INLET TUBE
  13. Install the strut tower support (2).
    Fig 9: Identifying Battery System Components, Power Distribution Center & Integrated Power Module
    GC0095659Courtesy of CHRYSLER LLC
  14. Position the Power Distribution Center (PDC) (1) and connect support bracket.
  15. Position and connect all PDC and generator wiring harness cables.
  16. Install the battery tray (7) and battery (5). Refer to Electrical/Battery System/TRAY, Battery - Installation .
  17. Connect the positive and negative battery cables (8,4). Refer to Electrical/Battery System/CABLES, Battery - Installation .
  18. Install the coolant recovery bottle.

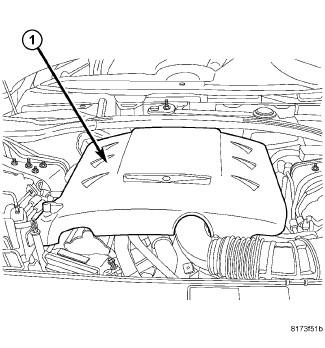

    Fig 10: ENGINE COVER
    GC0095228Courtesy of CHRYSLER LLC
  19. Install the engine cover brackets and engine cover (1). See Engine/COVER, Engine - Installation .
