Commander Overland, RWD
>>
Repair and Diagnosis
>>
Restraints
>>
Restraints Control Systems
>>
Air Bag Restraint System - Electrical Diagnostics
>>
DTC Troubleshooting
>>
U0175-Lost Communication W/Right Side Satellite Acceleration Sensor 1
>>
Circuit Schematic
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Circuit Schematic

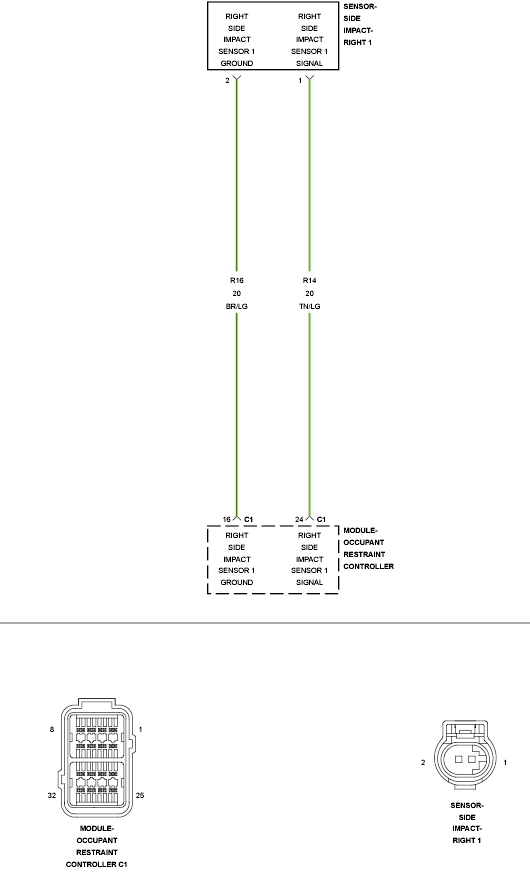

Fig 1: Right Side Impact Sensor 1 Signal/Ground Circuit Schematic
