ARM, Upper Control: Removal: Removal

Fig 1: Inner Fender Well

Courtesy of CHRYSLER LLC

1 - FENDER

2 - INNER FENDER WELL

Raise vehicle and support the axle.
Remove the tire and wheel.
Remove the inner fender well (2).

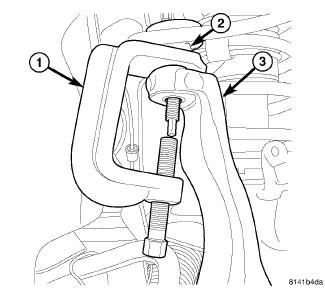

Fig 2: Upper Ball Joint Separation
Courtesy of CHRYSLER LLC
Remove the upper ball joint retaining nut.
Separate the upper ball joint (2) from the knuckle (3) using special tool #8677 (1).

Fig 3: Upper Control Arm
Courtesy of CHRYSLER LLC
Remove the nut and bolt (1) securing the upper control arm (5) to the body.
Remove the upper control arm (5) from the vehicle.
