KNUCKLE, Steering: Installation: Installation

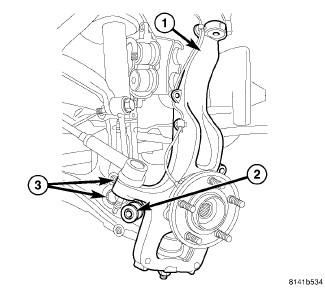

Fig 1: Stabilizer Link & Shock Clevis Bracket

Courtesy of CHRYSLER LLC

1 - KNUCKLE

2 - CLEVIS BRACKET AND BUSHING

3 - STABILIZER LINK

Install the knuckle (1) to the vehicle.
Install the lower ball joint into the knuckle.
Install the lower ball joint nut. Tighten the nut to 95 N.m (70 ft. lbs.).

Fig 2: Steering Knuckle & Upper Ball Joint
Courtesy of CHRYSLER LLC
Install the upper ball joint (2) into the knuckle (3)

Install the upper ball joint nut (4). Tighten the nut to 95 N.m (70 ft. lbs.).

Fig 3: Stabilizer Link & Shock Clevis Bracket

Courtesy of CHRYSLER LLC

1 - KNUCKLE

2 - CLEVIS BRACKET AND BUSHING

3 - STABILIZER LINK

Install the outer tie rod end to the steering knuckle. Refer to Steering/Linkage/END, Tie Rod - Installation .

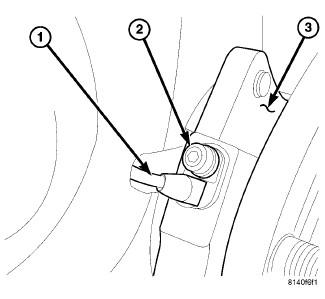

Fig 4: Wheel Speed Sensor
Courtesy of CHRYSLER LLC
Install the hub/bearing (3), Tighten to 115 N.m (85 ft. lbs.). See Installation .
Install the axle shaft nut. Tighten the nut to 135 N.m (96 ft.lbs.).(if equipped with four wheel drive).
NOTE: Check the sensor wire routing (1). Be sure the wire is clear of all chassis components and is not twisted or kinked at any spot.
Install the wheel speed sensor (1) into the hub (3) and then install the mounting bolt (2) and tighten to 12-14 N.m (106-124 in. lbs.). Refer to Brakes/Electrical/SENSOR, Wheel Speed - Installation .

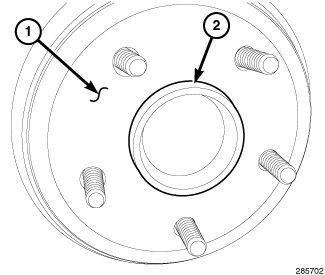

Fig 5: O-Ring
Courtesy of CHRYSLER LLC

1 - ROTOR

2 - O-RING

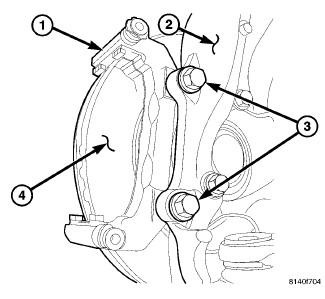

Fig 6: Caliper Adapter

Courtesy of CHRYSLER LLC

1 - CALIPER ADAPTER

2 - KNUCKLE

3 - CALIPER ADAPTER BOLTS

4 - ROTOR

Install the caliper adapter (1). Refer to Brakes/Hydraulic/Mechanical/ADAPTER, Disc Brake Caliper - Installation .
Install the tire and wheel assembly. Refer to Tires and Wheels/Wheels - Standard Procedure .
Perform wheel alignment. See Standard Procedure .
