Diagnostic Test

1. Ignition on, engine not running.
2. With the scan tool, read DTCs.

   Is the status Active for this DTC?

   Yes

   • Go to step  2

   No

   • Go to step  6

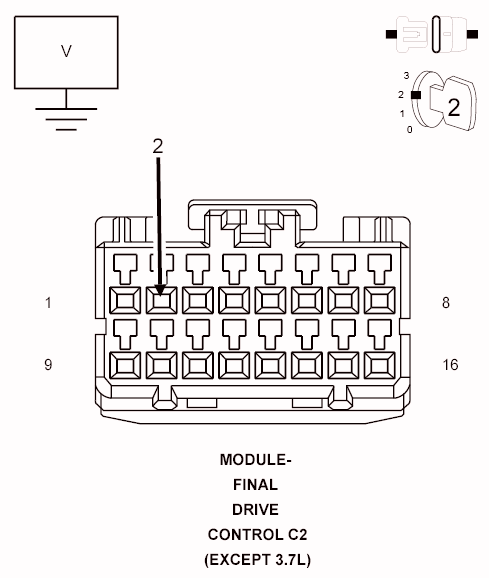

Fig 1: Checking 4WD Neutral Indicator Circuit Voltage

Courtesy of CHRYSLER LLC

1. Turn the ignition off to the lock position
2. Disconnect the FDCM C2 harness connector.
3. Ignition on, engine not running.
4. Measure the voltage of the (G95) 4WD Neutral Indicator circuit.

   Is there any voltage present?

   Yes

   • Go to step  3

   No

   • Go to step  4

Fig 2: Checking 4WD Neutral Indicator Circuit Voltage

Courtesy of CHRYSLER LLC

1. Turn the ignition off to the lock position
2. Disconnect the Transfer Case Selector Switch harness connector.
3. Ignition on, engine not running.
4. Measure the voltage of the (G95) 4WD Neutral Indicator circuit.

   Is there any voltage present?

   Yes

   • Repair the (G95) 4WD Neutral Indicator circuit for a short to voltage.
   • Perform TRANSFER CASE VERIFICATION TEST. See DTC-Based Diagnostics/MODULE, Final Drive Control (FDCM) - Standard Procedure .

   No

   • Go to step  5

Fig 3: Checking 4WD Neutral Indicator Circuit Open

Courtesy of CHRYSLER LLC

1. Turn the ignition off to the lock position
2. Disconnect the Transfer Case Selector Switch harness connector.
3. Measure the resistance of the (G95) 4WD Neutral Indicator Control circuit between the Transfer Case Motor harness connector and the Final Drive Control Module C2 harness connector.

   Is the resistance above 5.0 ohms?

   Yes

   • Repair the open (G95) 4WD Neutral Indicator circuit.
   • Perform TRANSFER CASE VERIFICATION TEST. See DTC-Based Diagnostics/MODULE, Final Drive Control (FDCM) - Standard Procedure .

   No

   • Replace the Final Drive Control Module (FDCM) in accordance with the Service information.
   • Perform TRANSFER CASE VERIFICATION TEST. See DTC-Based Diagnostics/MODULE, Final Drive Control (FDCM) - Standard Procedure .

View repair.

Repair

• Replace the Transfer Case Selector Switch in accordance with the Service information.
• Perform TRANSFER CASE VERIFICATION TEST. See DTC-Based Diagnostics/MODULE, Final Drive Control (FDCM) - Standard Procedure .

1. The conditions necessary to set this DTC are not present at this time.
2. Using the SYSTEM WIRING DIAGRAMS as a guide, inspect the wiring and connectors.
3. While monitoring the scan tool data relative to this circuit, wiggle test the wiring and connectors.
4. Look for the data to change or for the DTC to reset during the wiggle test.

   Were any problems found?

   Yes

   • Repair as necessary.
   • Perform TRANSFER CASE VERIFICATION TEST. See DTC-Based Diagnostics/MODULE, Final Drive Control (FDCM) - Standard Procedure .

   No

   • Test complete.
