Left Front Window Motor (Left Front Door) 2 Way

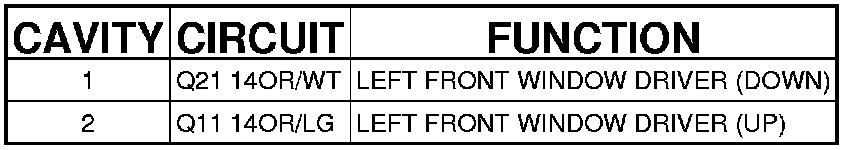

Connector - (LEFT FRONT DOOR) 2 WAY

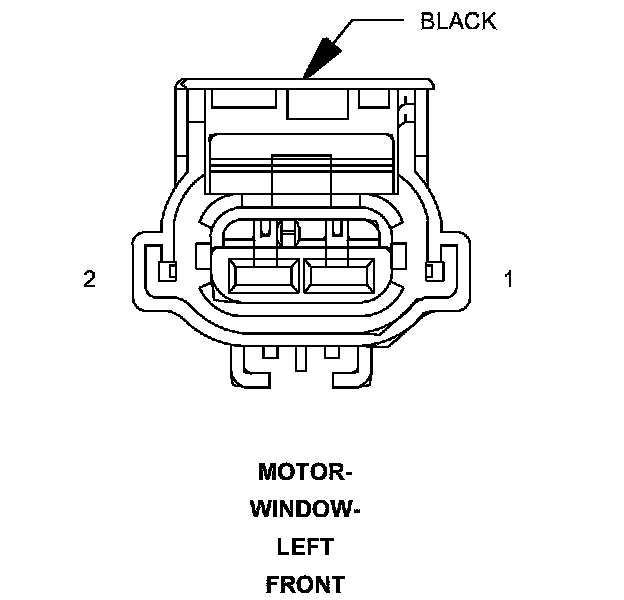

MOTOR-WINDOW-LEFT FRONT - (LEFT FRONT DOOR) 2 WAY
