Compressor Control Valve Assembly

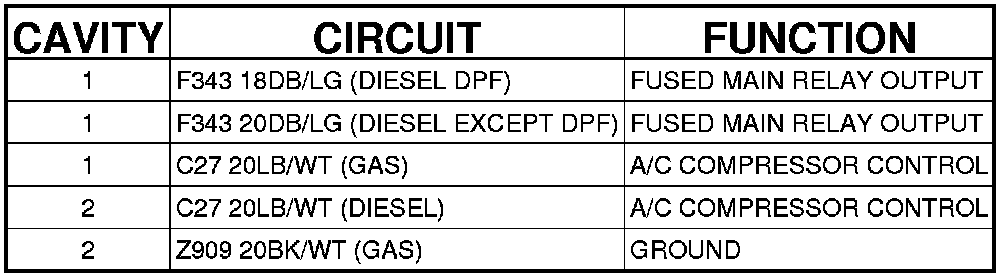

Connector - (POWERTRAIN) 2 WAY

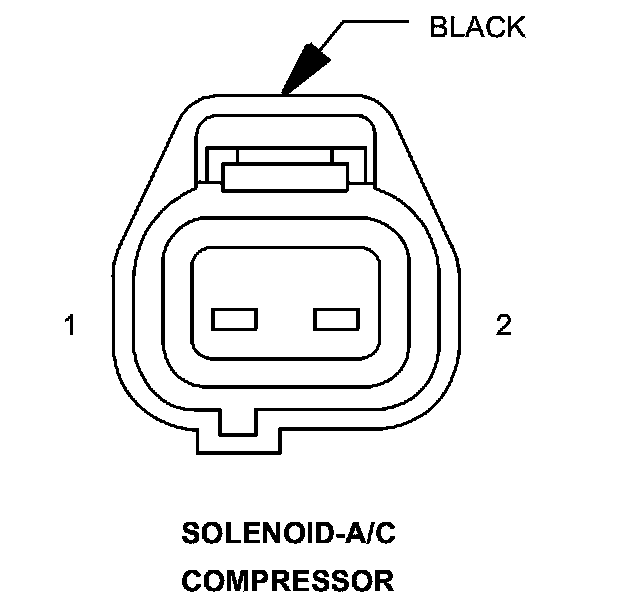

SOLENOID-A/C COMPRESSOR - (POWERTRAIN) 2 WAY
