Fluid Pressure Sensor/Switch, CVT

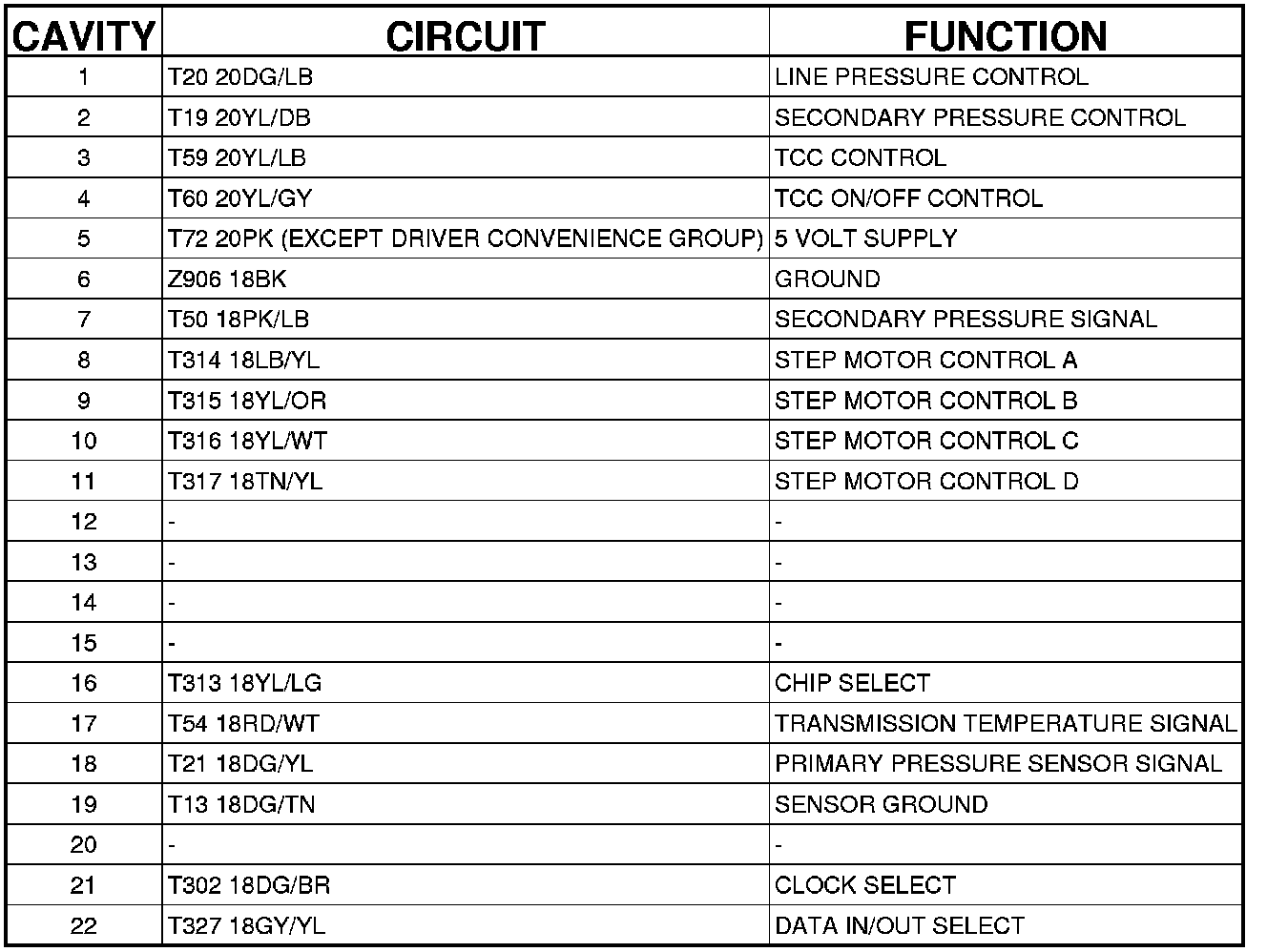

Connector - (BODY) 22 WAY

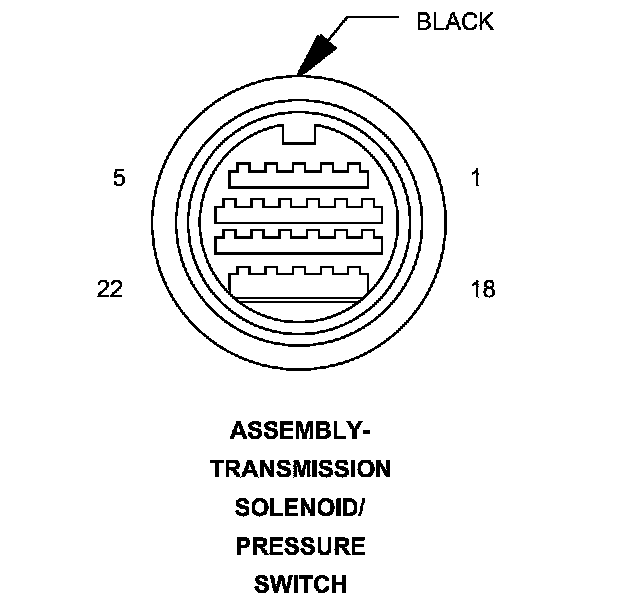

ASSEMBLY-TRANSMISSION SOLENOID/PRESSURE SWITCH - (BODY) 22 WAY
