No Response From TCM (Transmission Control Module) (CVT): Notes

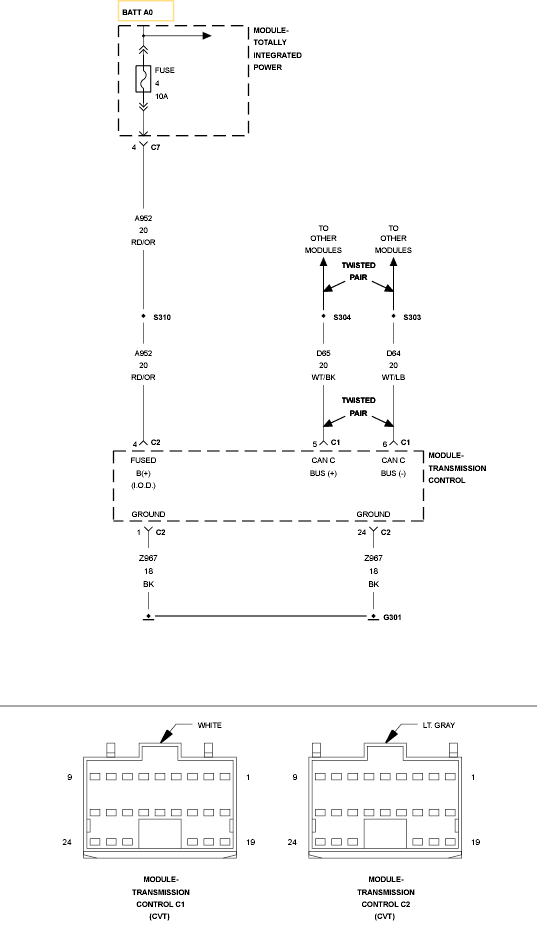

Fig 1: Transmission Control Module Circuit

Courtesy of CHRYSLER LLC

For complete wiring diagrams, refer to:

Possible Causes
(A952) FUSED B(+) CIRCUIT OPEN OR SHORTED
(Z967) GROUND CIRCUIT OPEN
(D65) CAN C BUS (+) CIRCUIT OPEN
(D64) CAN C BUS (-) CIRCUIT OPEN
TRANSMISSION CONTROL MODULE
