Diagnostic Test

INTERMITTENT CONDITION
1. Turn the ignition on.
2. With the scan tool, clear all Audio DTCs.
3. Turn the radio on.
4. With the scan tool, read the DTC information.
  Does the scan tool read: B140F-REAR RIGHT AUDIO SPEAKER OUTPUT CIRCUIT OPEN?

  Yes
  - Go to step 2
  No
  - The condition that caused the symptom is currently not present. Inspect the related wiring for a possible intermittent condition. Look for any chafed, pierced, pinched, or partially broken wires.
  - Perform the BODY VERIFICATION TEST. Refer to DTC-Based Diagnostics/MODULE, Totally Integrated Power (TIPM) - Standard Procedure .
(X52) (X58) SPEAKER OUTPUT CIRCUITS

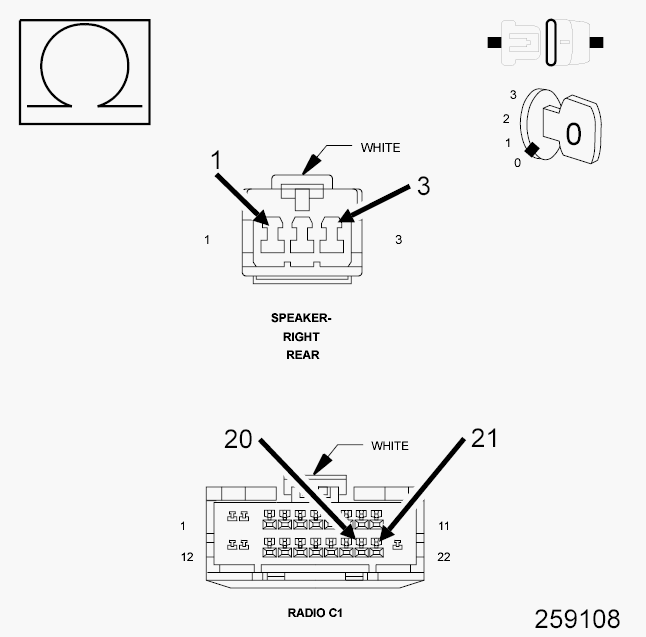

Fig 1: Checking Speaker Output Circuits
Courtesy of CHRYSLER LLC
1. Turn the ignition off.
2. Disconnect the Radio C1 harness connector.
3. Disconnect the Rear Right Audio Speaker connector.
4. Measure the resistance of each speaker (X52) (+) and (X58) (-) circuit between the radio and the speaker.
  Is the resistance below 5.0 Ohms for each circuit?

  Yes
  - Go to step 3
  No
  - Repair the applicable Output Speaker circuit for an open condition.
  - Perform the BODY VERIFICATION TEST. Refer to DTC-Based Diagnostics/MODULE, Totally Integrated Power (TIPM) - Standard Procedure .
SPEAKER

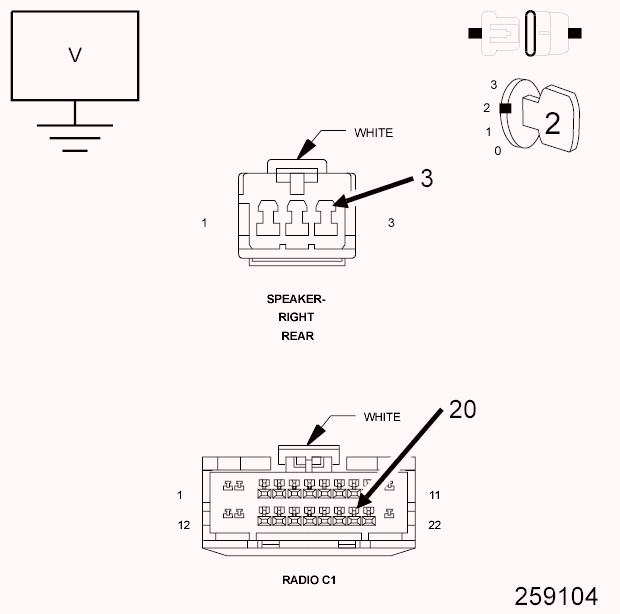

Fig 2: Checking Voltage On Speaker (-) Circuit
Courtesy of CHRYSLER LLC
1. Turn the ignition off.
2. Disconnect the Rear Right Audio Speaker.
3. Turn the ignition on.
4. Turn the radio on.
5. With the scan tool, clear all Audio DTCs.
6. With the scan tool, read the DTC information.
  Does the scan tool read: B140F-REAR RIGHT AUDIO SPEAKER OUTPUT CIRCUIT OPEN?

  Yes
  - Replace the speaker in accordance with the Service Information.
  - Perform the BODY VERIFICATION TEST. Refer to DTC-Based Diagnostics/MODULE, Totally Integrated Power (TIPM) - Standard Procedure .
  No
  - Test Complete.
  - Perform the BODY VERIFICATION TEST. Refer to DTC-Based Diagnostics/MODULE, Totally Integrated Power (TIPM) - Standard Procedure .
