C1460-AWD Switch Circuit Performance
>>
Notes
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
C1460-AWD Switch Circuit Performance: Notes

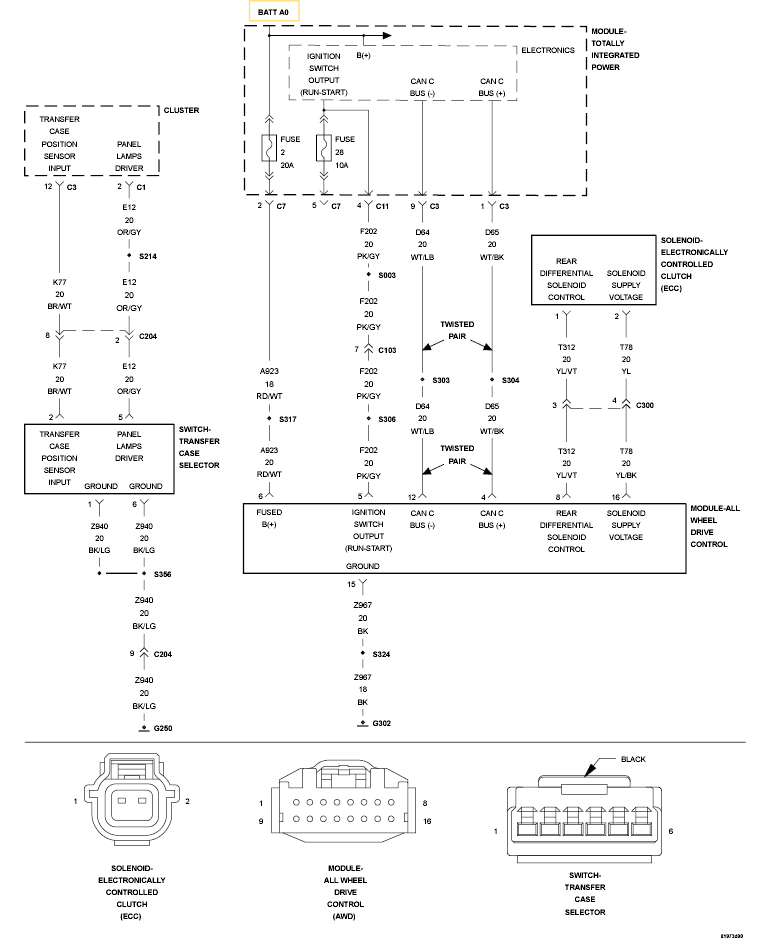

Fig 1: AWD Clutch Power Control Circuit
Courtesy of CHRYSLER LLC
Courtesy of CHRYSLER LLC
