P2015-Intake Manifold Runner Position Sensor Performance: Notes

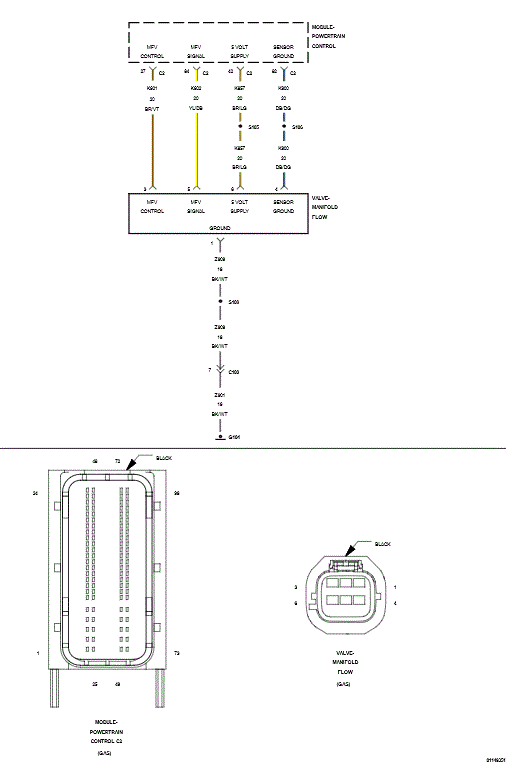

Fig 1: Intake Manifold Runner (Swirl) Control Circuit
GC0100007Courtesy of CHRYSLER LLC
