LEMON Manuals
: Even more car manuals for everyone: 1960-2025
Home
>>
Jeep
>>
2009
>>
Compass Limited, ED3, AWD, Standard
>>
Repair and Diagnosis (Single Page)
>>
Engine Performance
>>
System
>>
DTCS P2127 To P2308 (Gas)
>>
P2270-O2 Sensor 1/2 Signal Biased Lean
>>
Notes
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
P2270-O2 Sensor 1/2 Signal Biased Lean: Notes

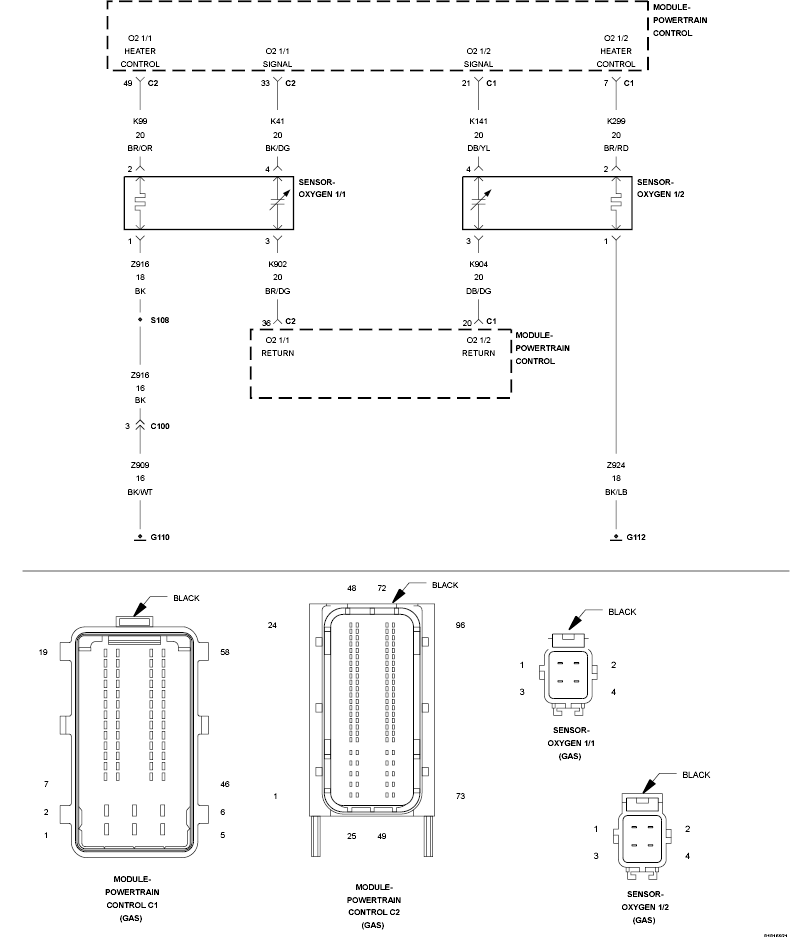

Fig 1: Oxygen Sensor Circuit
Courtesy of CHRYSLER LLC
Courtesy of CHRYSLER LLC
