B1B2A-1ST Row Driver Seat Belt PRETENSIONER Circuit Open: Notes

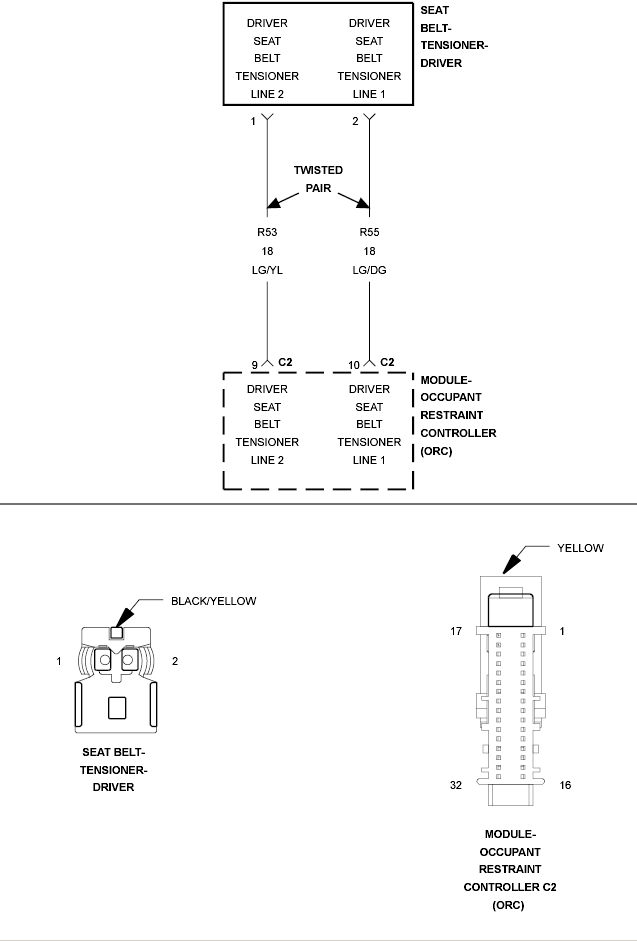

Fig 1: Driver Seat Belt Pretensioner Circuit

GC0099265

Courtesy of CHRYSLER LLC
