B1B71-Up-Front Right Satellite Acceleration Sensor Internal: Notes

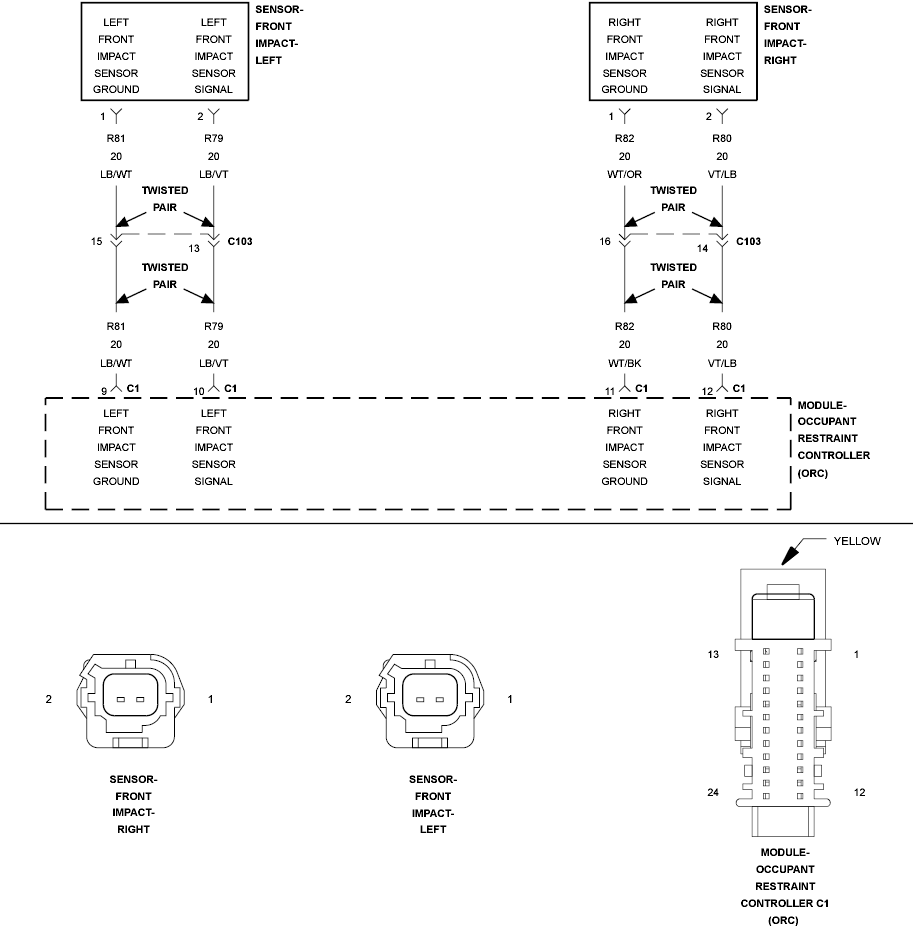

Fig 1: Satellite Acceleration Sensor Circuit
GC0099280Courtesy of CHRYSLER LLC
