Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

Fig 1: Dash

G00450404

Courtesy of CHRYSLER LLC

Fig 2: Left Rear Of Engine Compartment

G00450405

Courtesy of CHRYSLER LLC

Fig 3: Left Center Of Dash

G00450406

Courtesy of CHRYSLER LLC

Fig 4: Transmission (CVT)

G00450407

Courtesy of CHRYSLER LLC

Fig 5: Left Front Frame Rail

G00450408

Courtesy of CHRYSLER LLC

Fig 6: Left Side Of Dash

G00450409

Courtesy of CHRYSLER LLC

Fig 7: Right "A" Pillar

G00450410

Courtesy of CHRYSLER LLC

Fig 8: Front Center Of Body

G00450411

Courtesy of CHRYSLER LLC

Fig 9: Left Rear Of Body

G00450412

Courtesy of CHRYSLER LLC

Fig 10: Left Front Of Body

G00450413

Courtesy of CHRYSLER LLC

Fig 11: Right Front Of Body

G00450414

Courtesy of CHRYSLER LLC

Fig 12: Right "B" Pillar

G00450415

Courtesy of CHRYSLER LLC

Fig 13: Left "B" Pillar

G00450416

Courtesy of CHRYSLER LLC

Fig 14: Front Doors (Left Shown, Right Similar)

G00450417

Courtesy of CHRYSLER LLC

Fig 15: Upper Left Rear Of Body

G00450418

Courtesy of CHRYSLER LLC

Fig 16: Left Front Of Engine

G00450419

Courtesy of CHRYSLER LLC

Fig 17: Left Rear Of Engine

G00450420

Courtesy of CHRYSLER LLC

Fig 18: Front Engine Of Compartment

G00450422

Courtesy of CHRYSLER LLC

Fig 19: Left Front Of Engine Compartment

G00450423

Courtesy of CHRYSLER LLC

Fig 20: Front Seats

G00450424

Courtesy of CHRYSLER LLC

Fig 21: Rear Doors (Right Shown, Left Similar)

G00450425

Courtesy of CHRYSLER LLC

Fig 22: Liftgate

G00450426

Courtesy of CHRYSLER LLC

Fig 23: Right Front Shock Tower

G00450427

Courtesy of CHRYSLER LLC

Fig 24: Left Rear Of Underbody

G00450428

Courtesy of CHRYSLER LLC

Fig 25: Right Rear Of Underbody

G00450429

Courtesy of CHRYSLER LLC

Fig 26: Headliner

G00450430

Courtesy of CHRYSLER LLC

Fig 27: Steering Column

G00450431

Courtesy of CHRYSLER LLC

Fig 28: Right Rear Of Body

G00450434

Courtesy of CHRYSLER LLC

Fig 29: Center Console

G00450435

Courtesy of CHRYSLER LLC

Fig 30: Right Front Of Engine Compartment

G00450436

Courtesy of CHRYSLER LLC

Fig 31: Under Left Front Fender

G00450437

Courtesy of CHRYSLER LLC

Fig 32: Front Of Headliner

G00450439

Courtesy of CHRYSLER LLC

Fig 33: Lower Right Rear Of Body

G00450440

Courtesy of CHRYSLER LLC

Fig 34: Rear Of Body

G00457914

Courtesy of CHRYSLER LLC

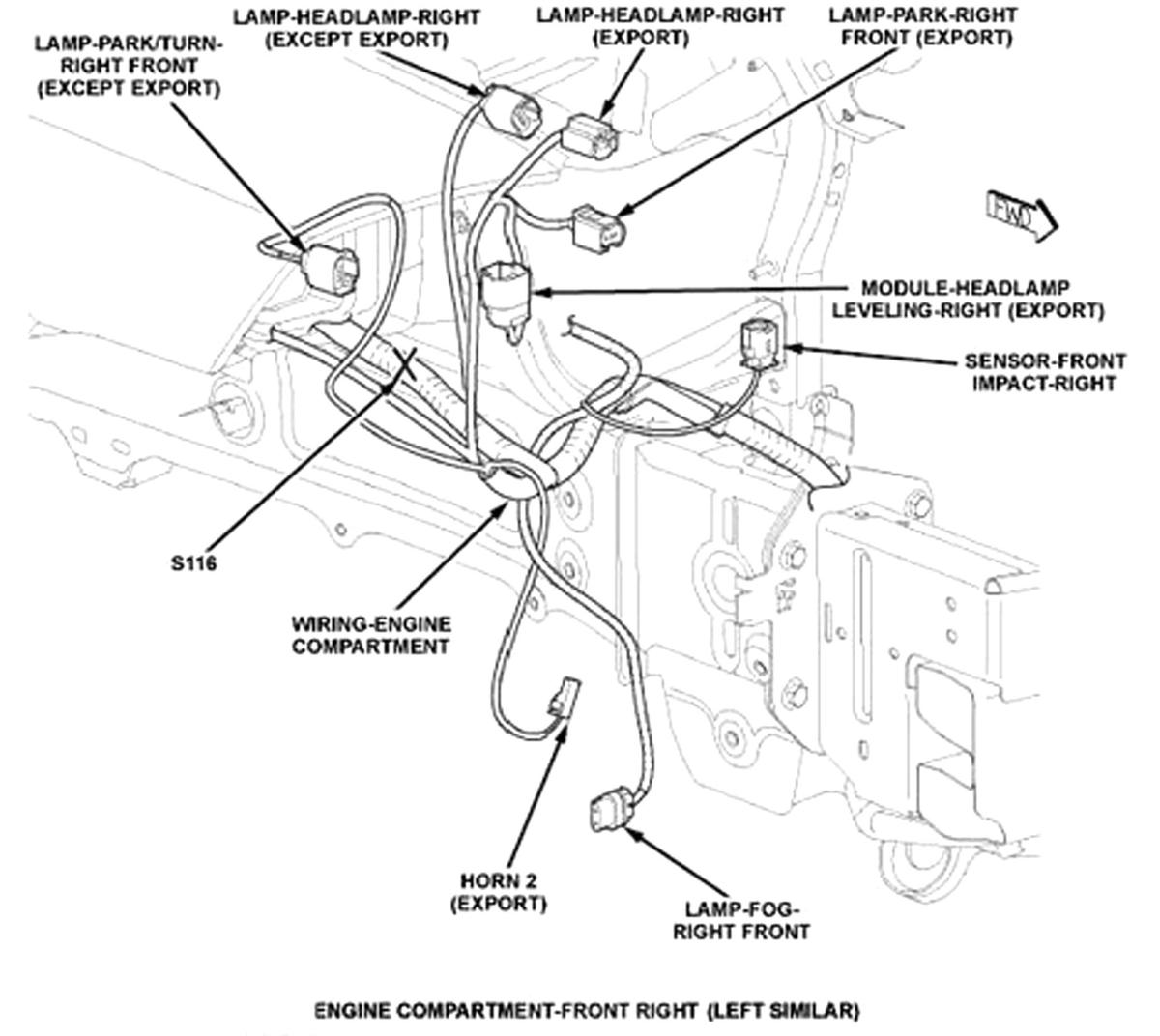

Fig 35: Right Front Of Engine Compartment

G00467562

Courtesy of CHRYSLER LLC

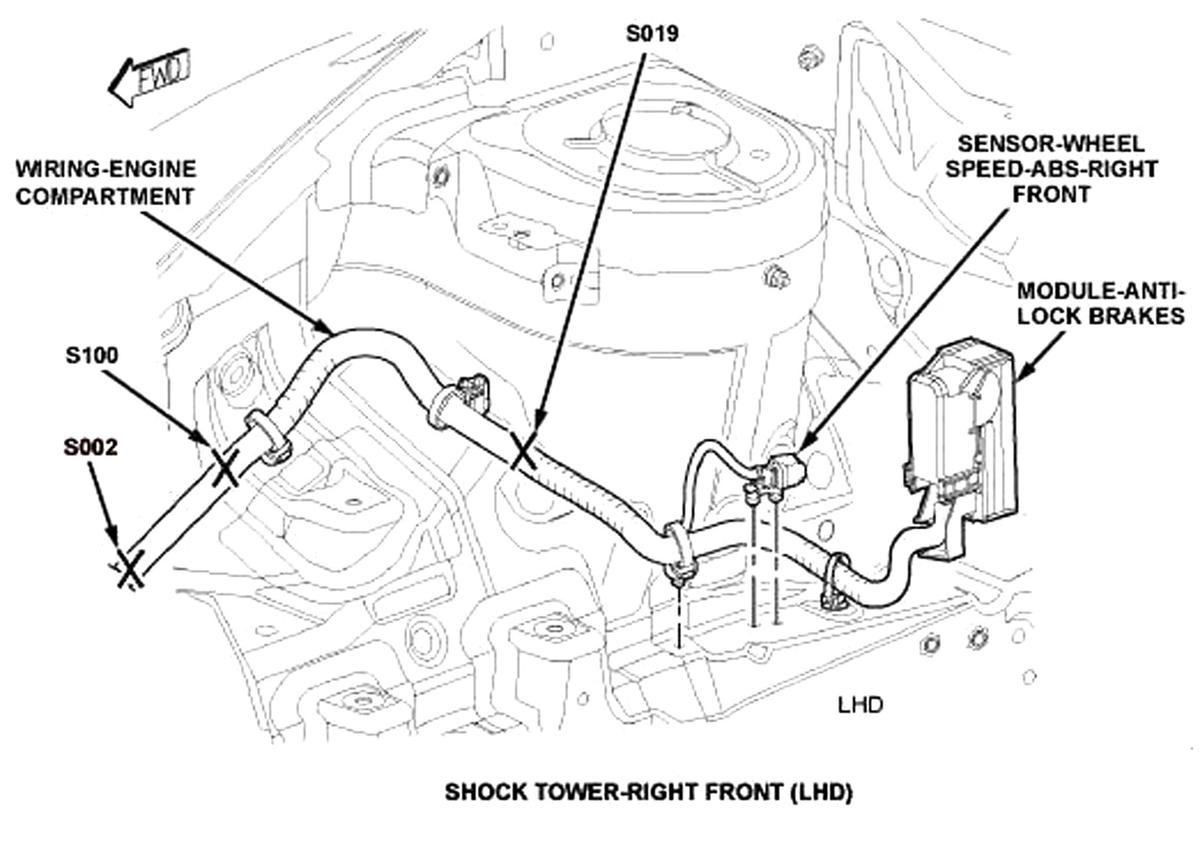

Fig 36: Right Front Of Shock Tower

G00467563

Courtesy of CHRYSLER LLC

Fig 37: Left Rear Of Engine Compartment

G00467564

Courtesy of CHRYSLER LLC

Fig 38: Left Front Of Engine Compartment

G00467565

Courtesy of CHRYSLER LLC

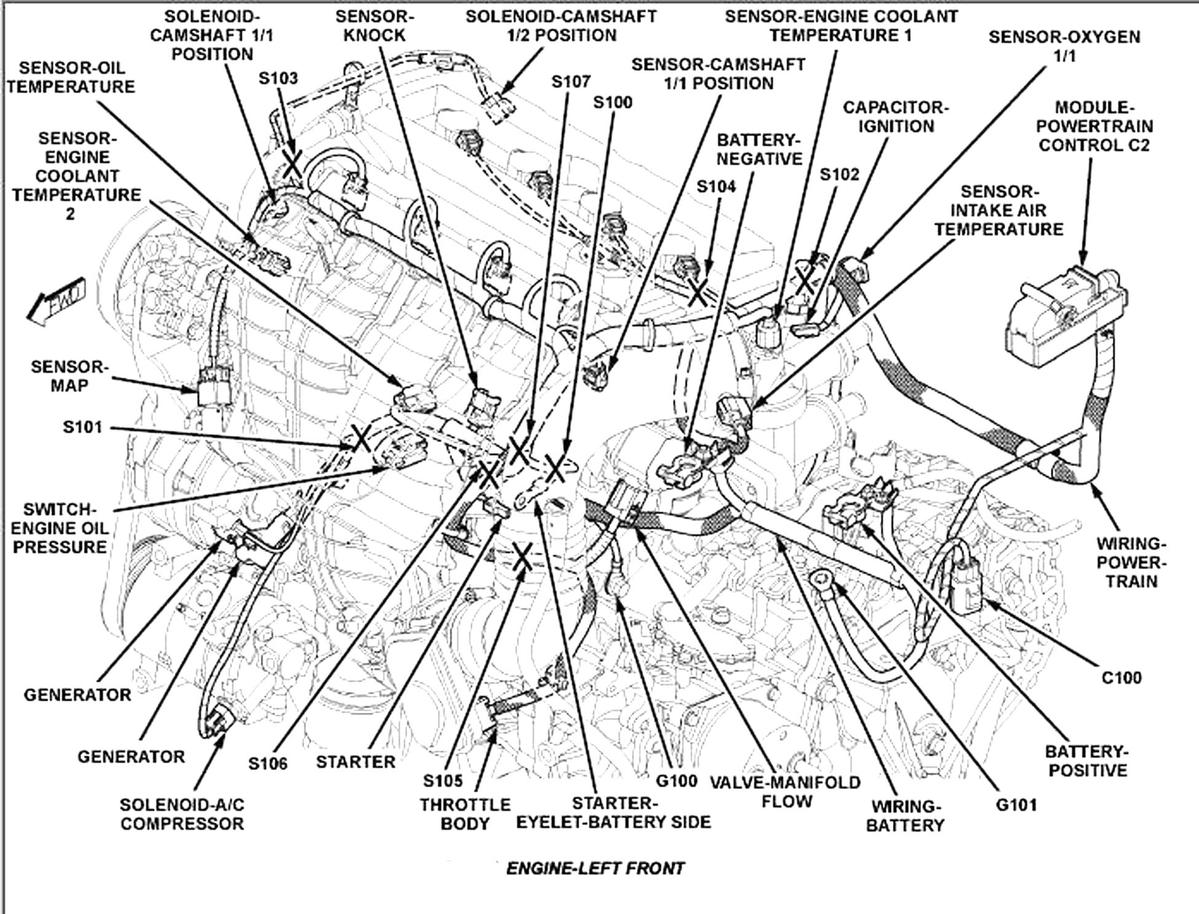

Fig 39: Left Front Of Engine

G00467566

Courtesy of CHRYSLER LLC

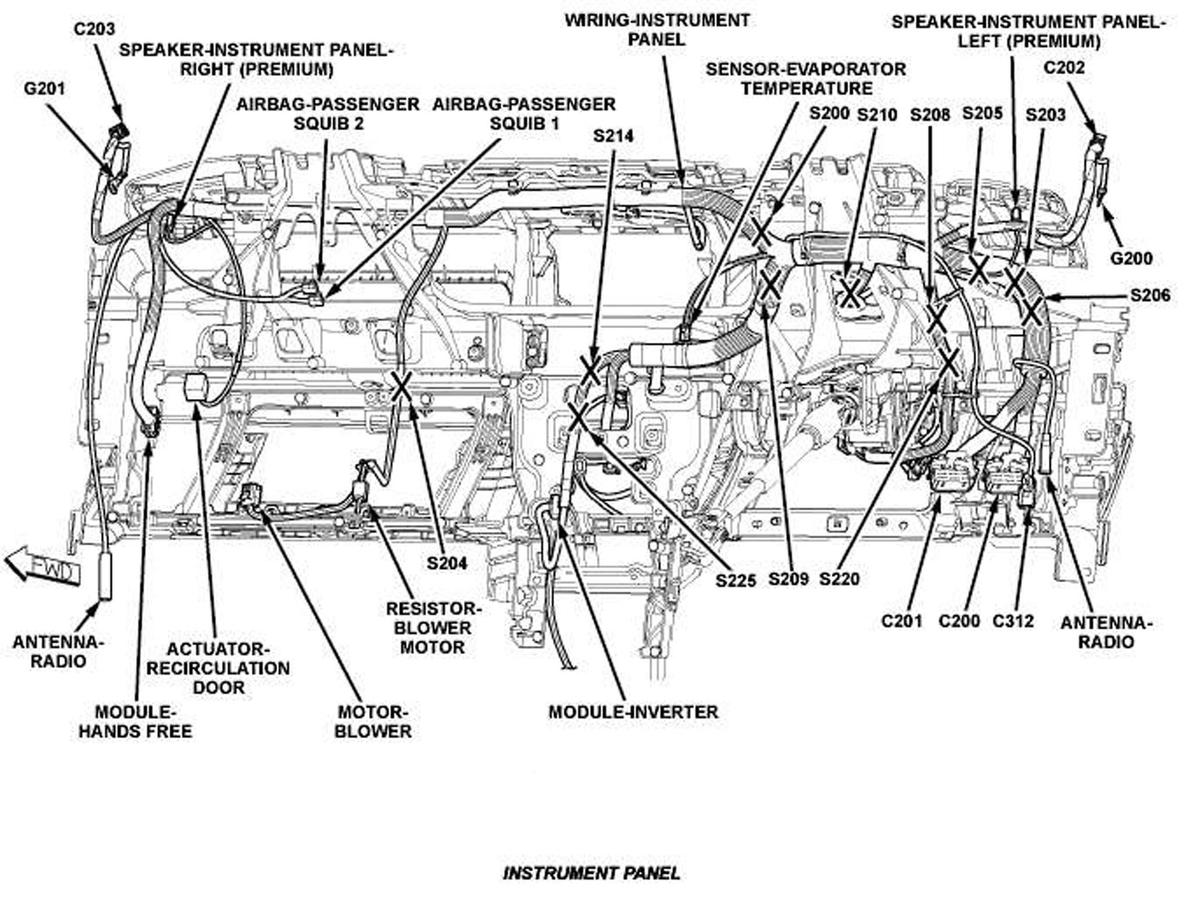

Fig 40: Dash

G00467567

Courtesy of CHRYSLER LLC

Fig 41: Front Center Of Body

G00467568

Courtesy of CHRYSLER LLC

Fig 42: Right Front Of Body

G00467570

Courtesy of CHRYSLER LLC

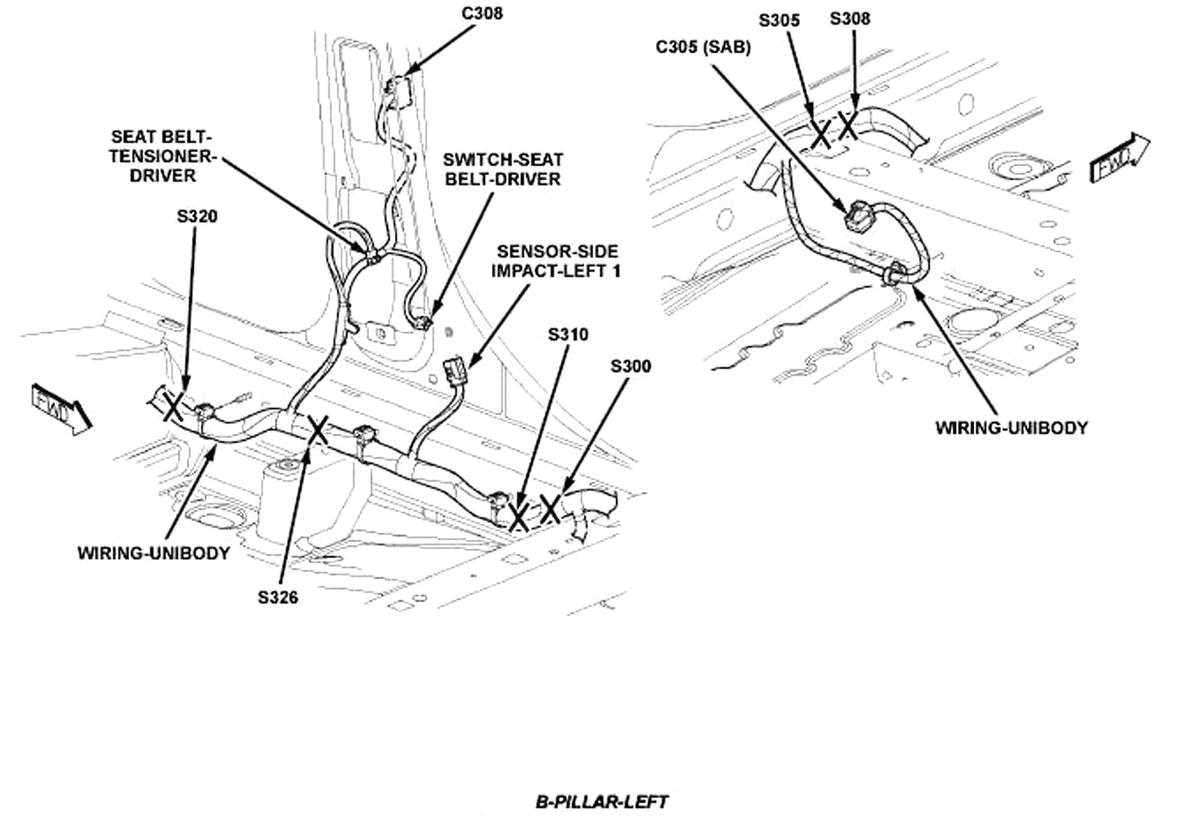

Fig 43: Left "B" Pillar

G00467572

Courtesy of CHRYSLER LLC

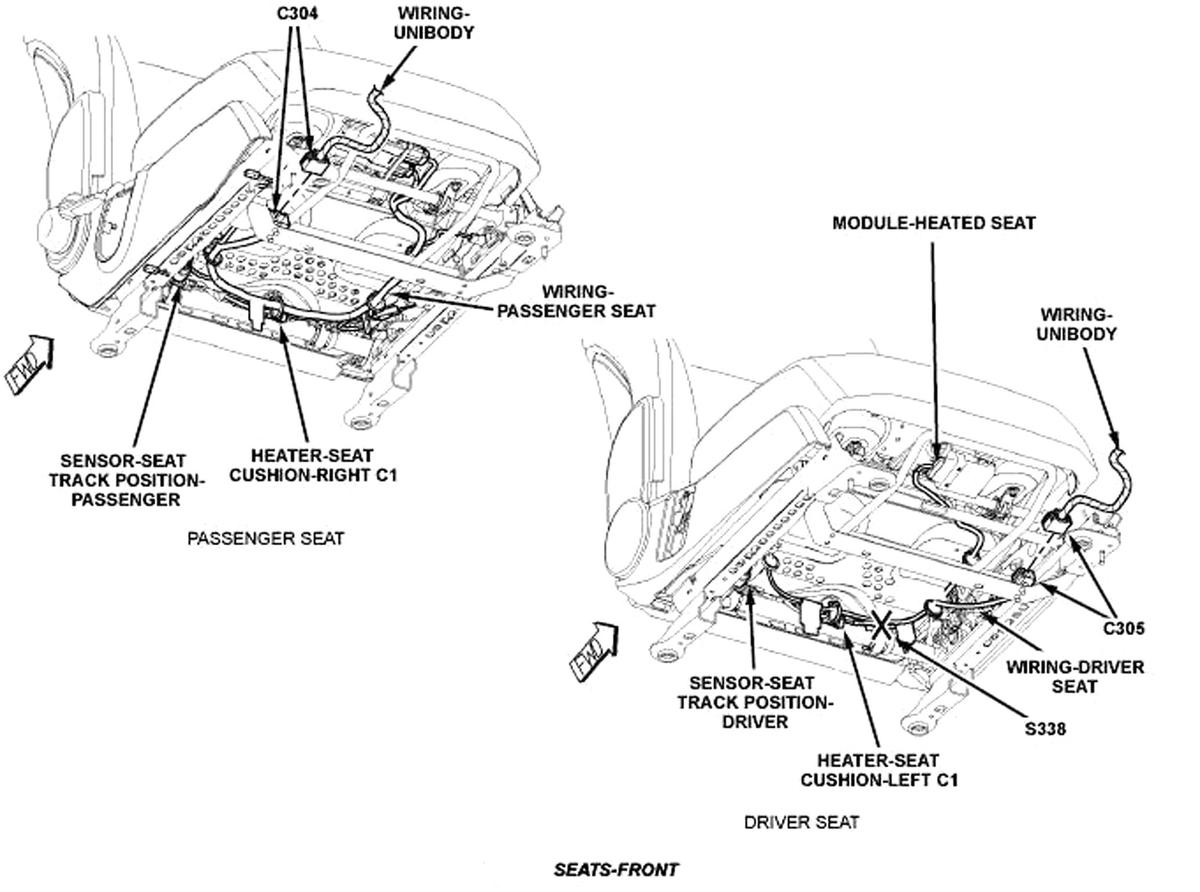

Fig 44: Front Seats

G00467573

Courtesy of CHRYSLER LLC

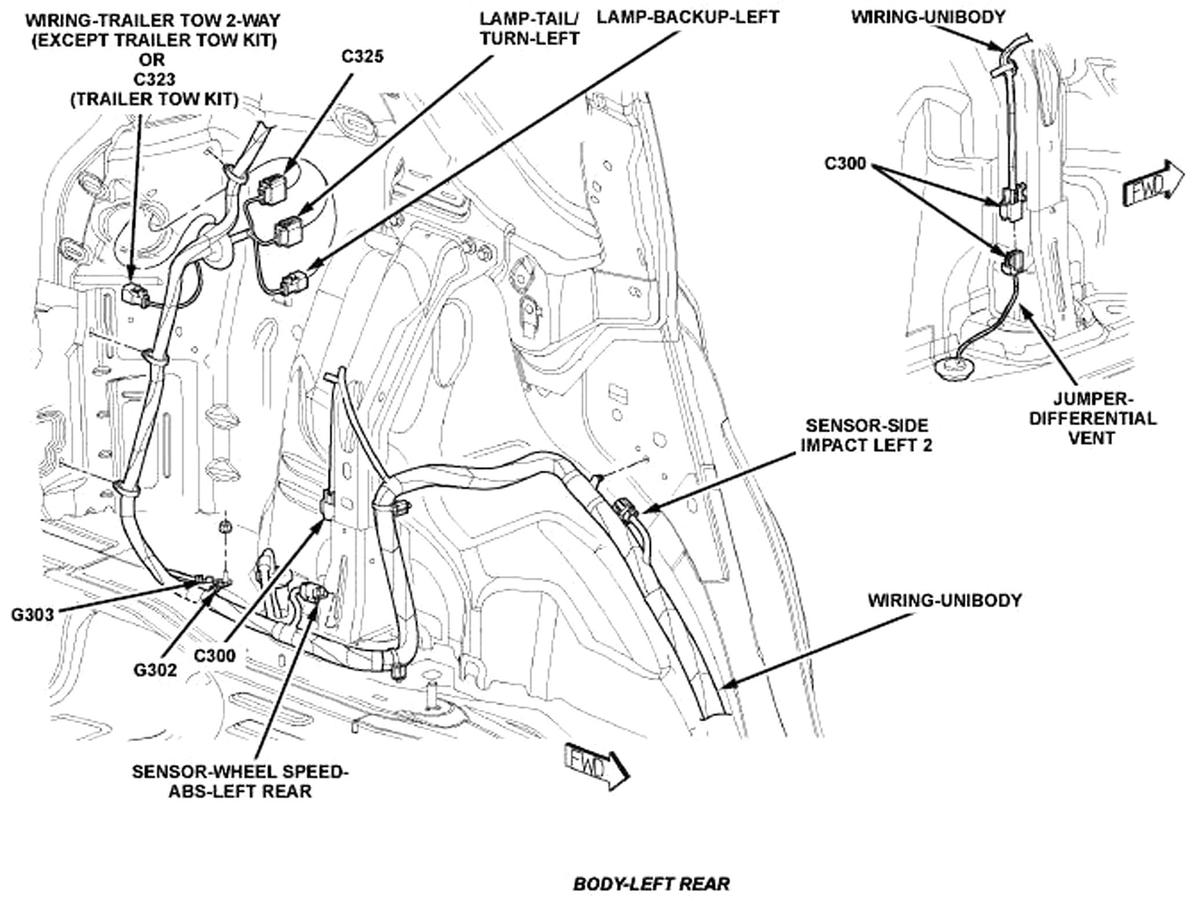

Fig 45: Left Rear Of Body

G00467574

Courtesy of CHRYSLER LLC

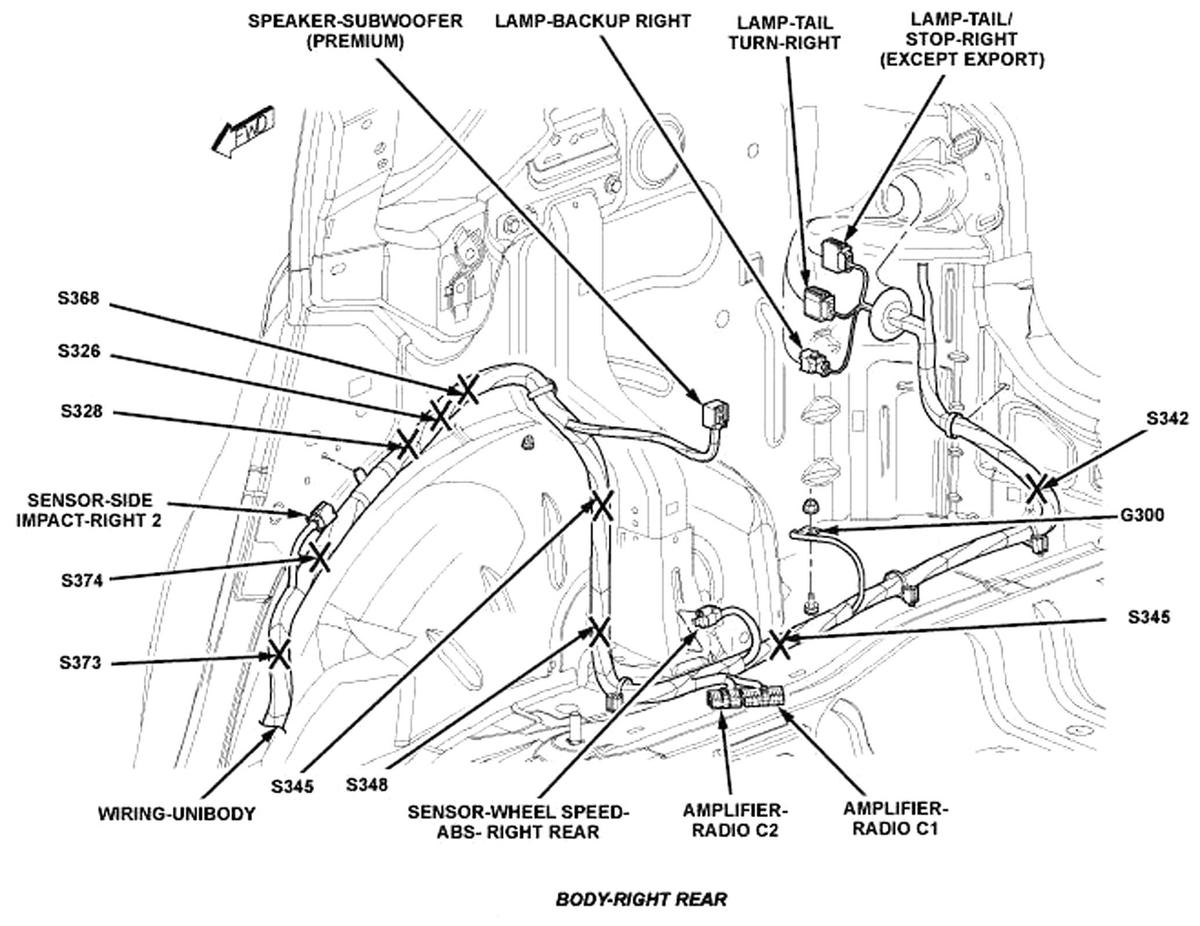

Fig 46: Right Rear Of Body

G00467575

Courtesy of CHRYSLER LLC

Fig 47: Left Side Of Engine Compartment

G00467576

Courtesy of CHRYSLER LLC

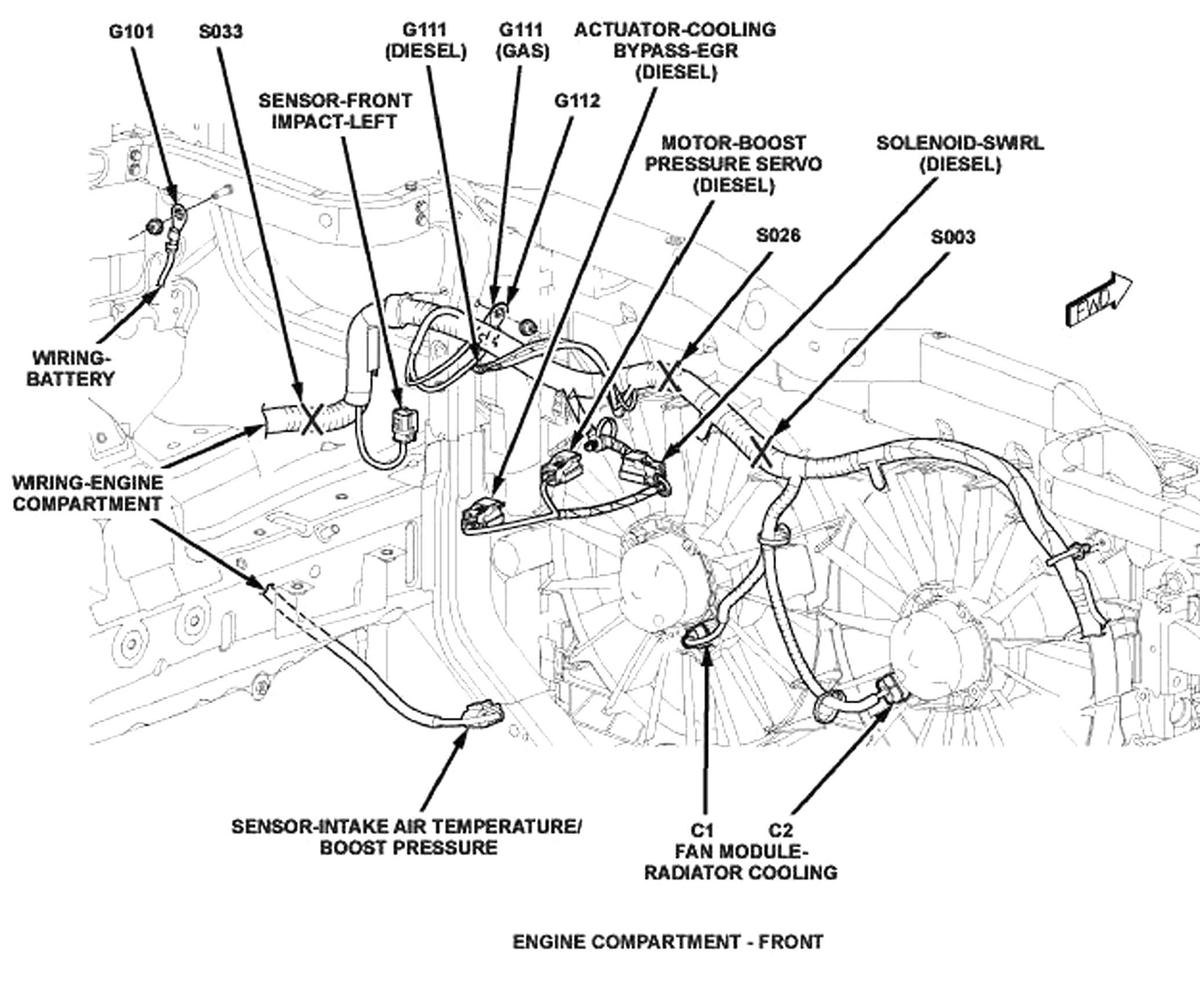

Fig 48: Left Front Engine Compartment

G00467577

Courtesy of CHRYSLER LLC

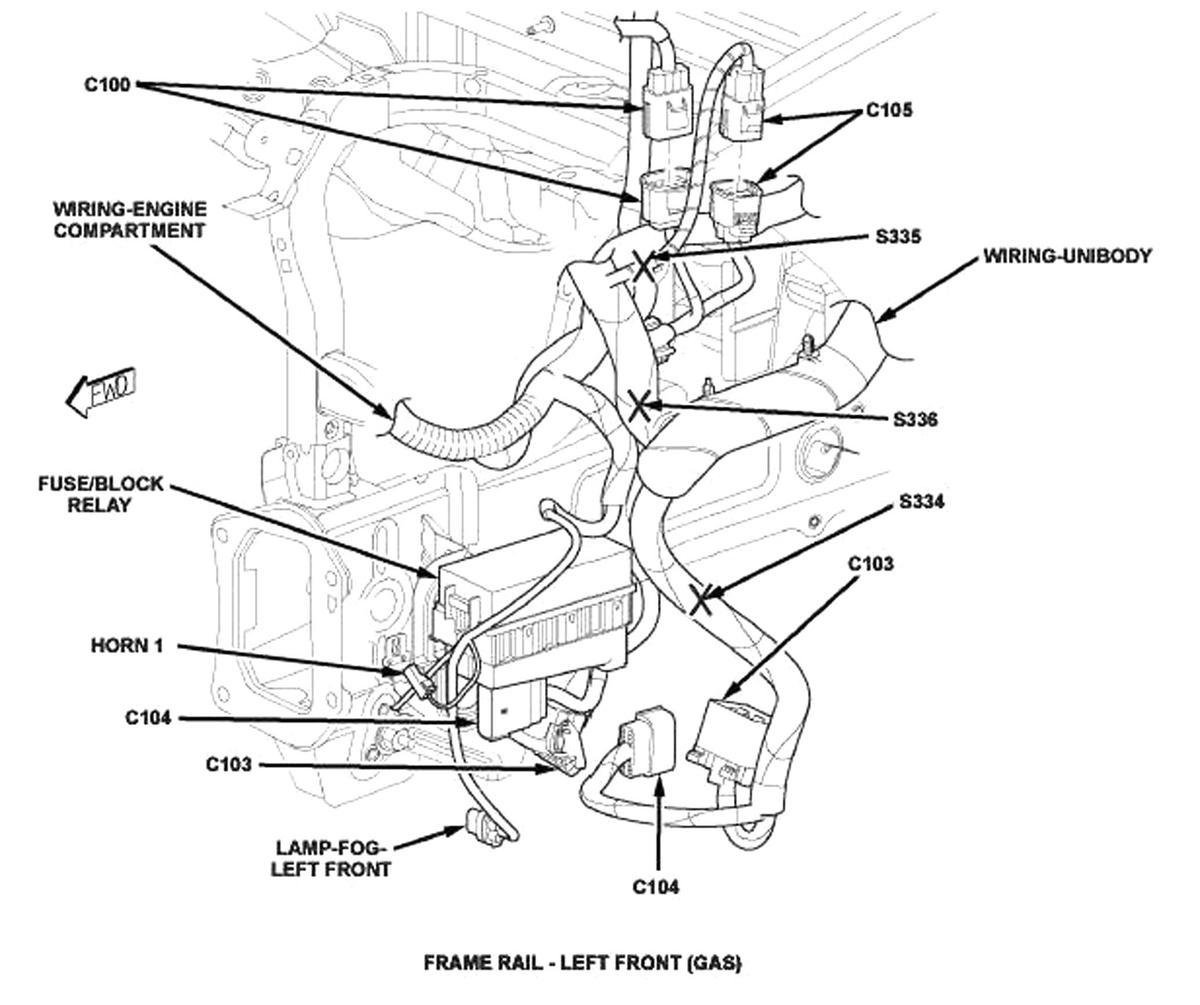

Fig 49: Left Front Of Frame Rail

G00467578

Courtesy of CHRYSLER LLC

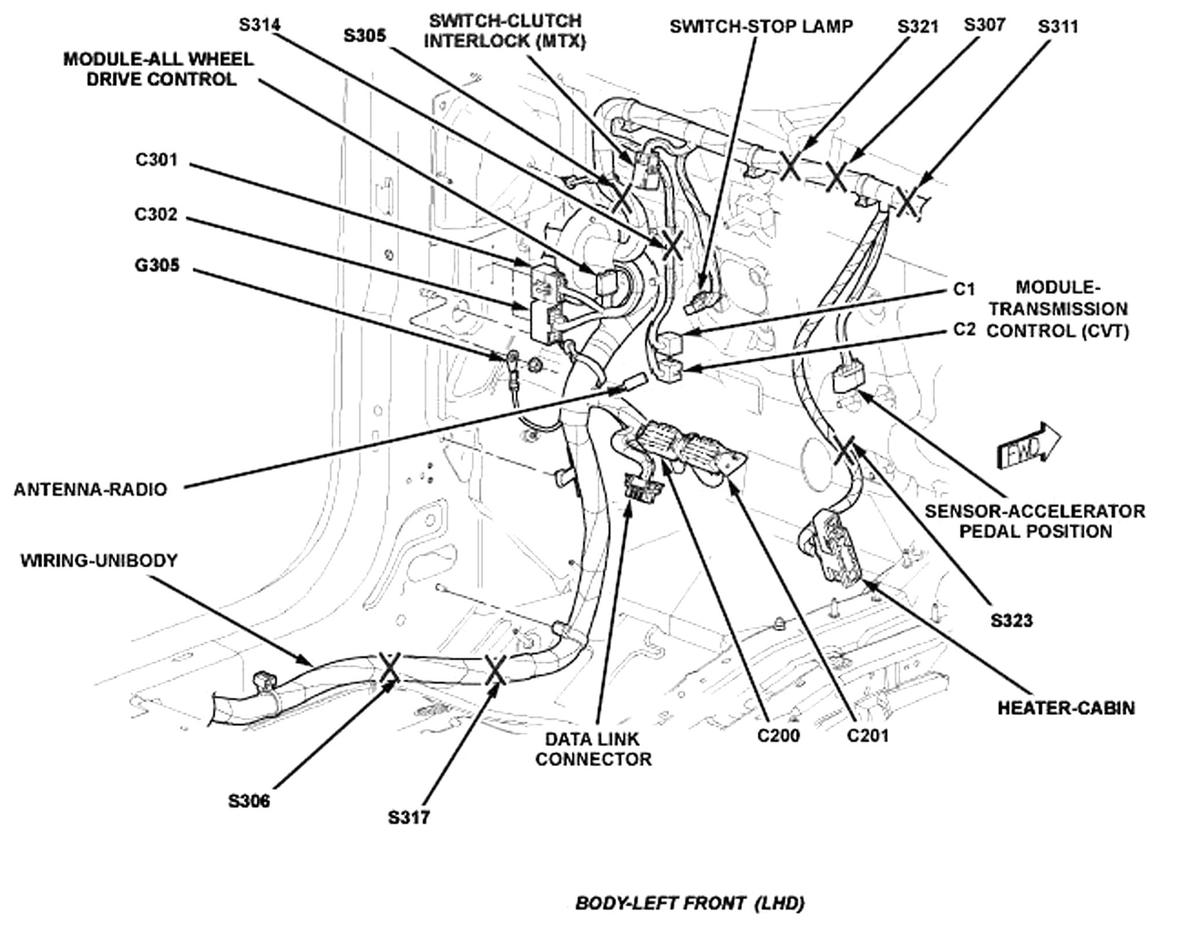

Fig 50: Under Left Side Of Dash

G00467569

Courtesy of CHRYSLER LLC

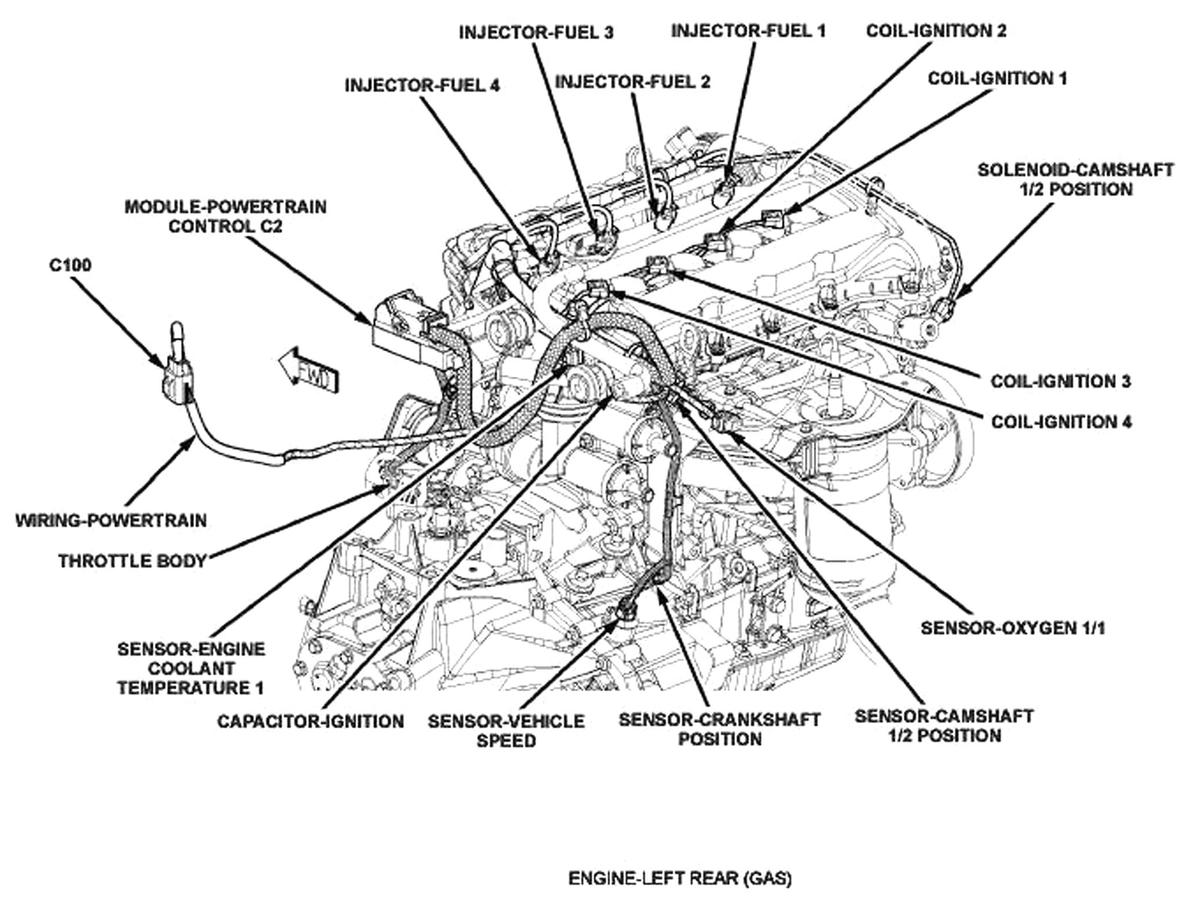

Fig 51: Left Rear Of Engine

G00467571

Courtesy of CHRYSLER LLC

Fig 52: Right Upper Front Of Engine Compartment

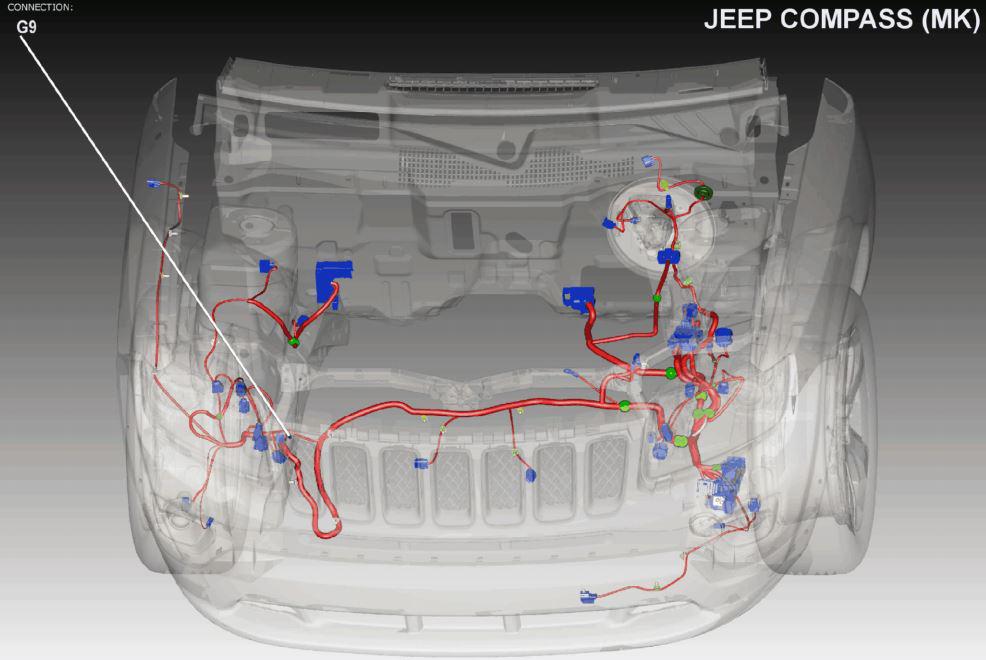

G00574309

Courtesy of CHRYSLER LLC

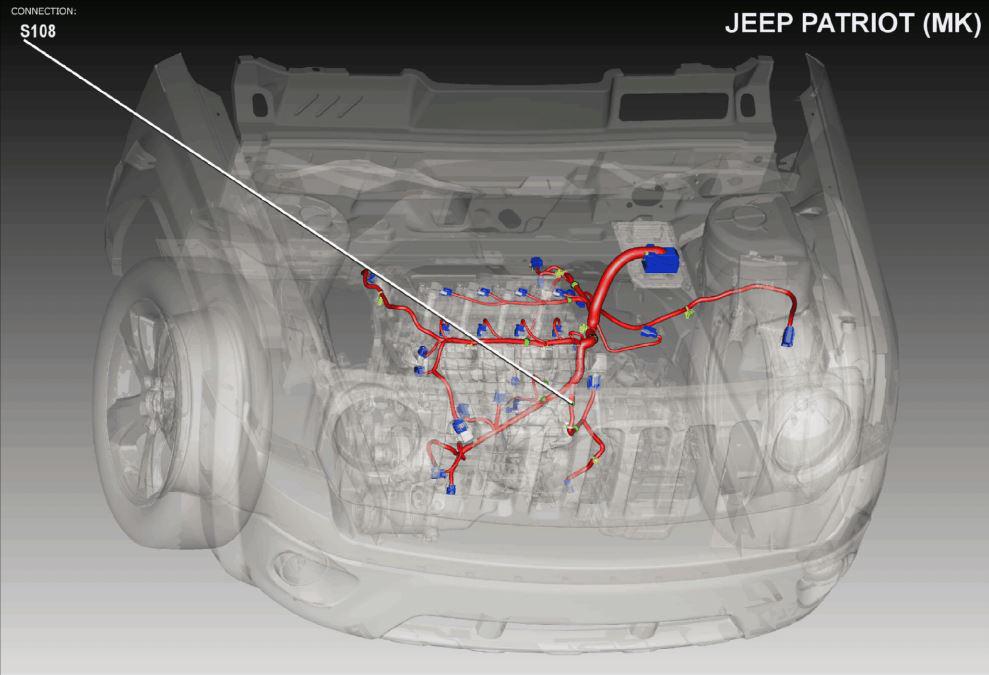

Fig 53: Front Upper Middle Of Engine Compartment

G00574310

Courtesy of CHRYSLER LLC
