Electronic Brake Control Module

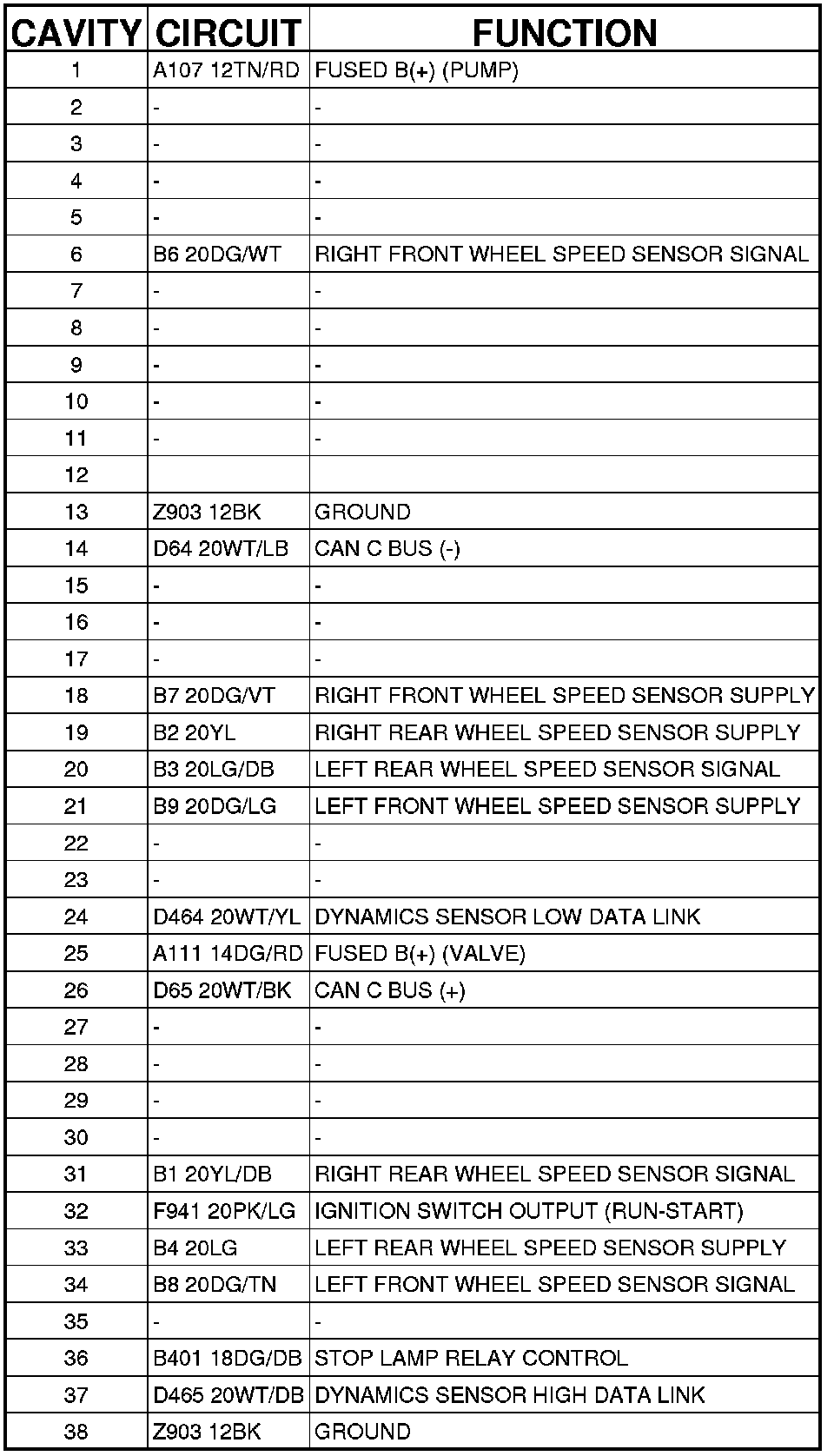

Connector (ESP) - (BODY) 38 WAY

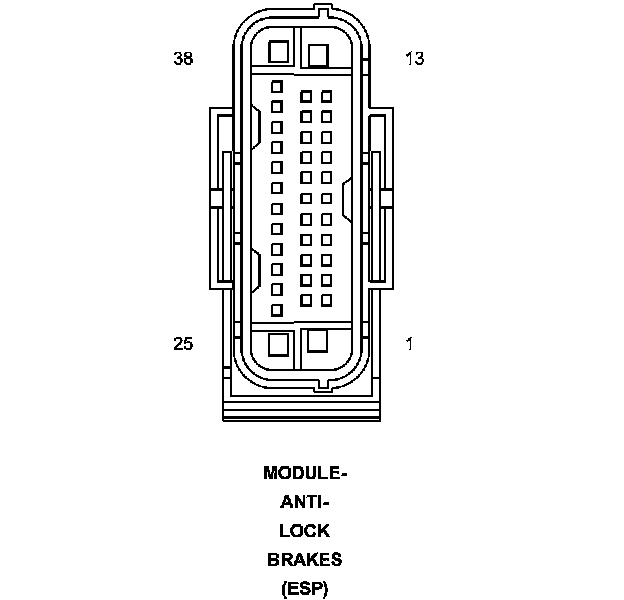

MODULE-ANTI-LOCK BRAKES (ESP) - (BODY) 38 WAY
