Powertrain Control Module C4 (RLE) (Powertrain) 38 Way

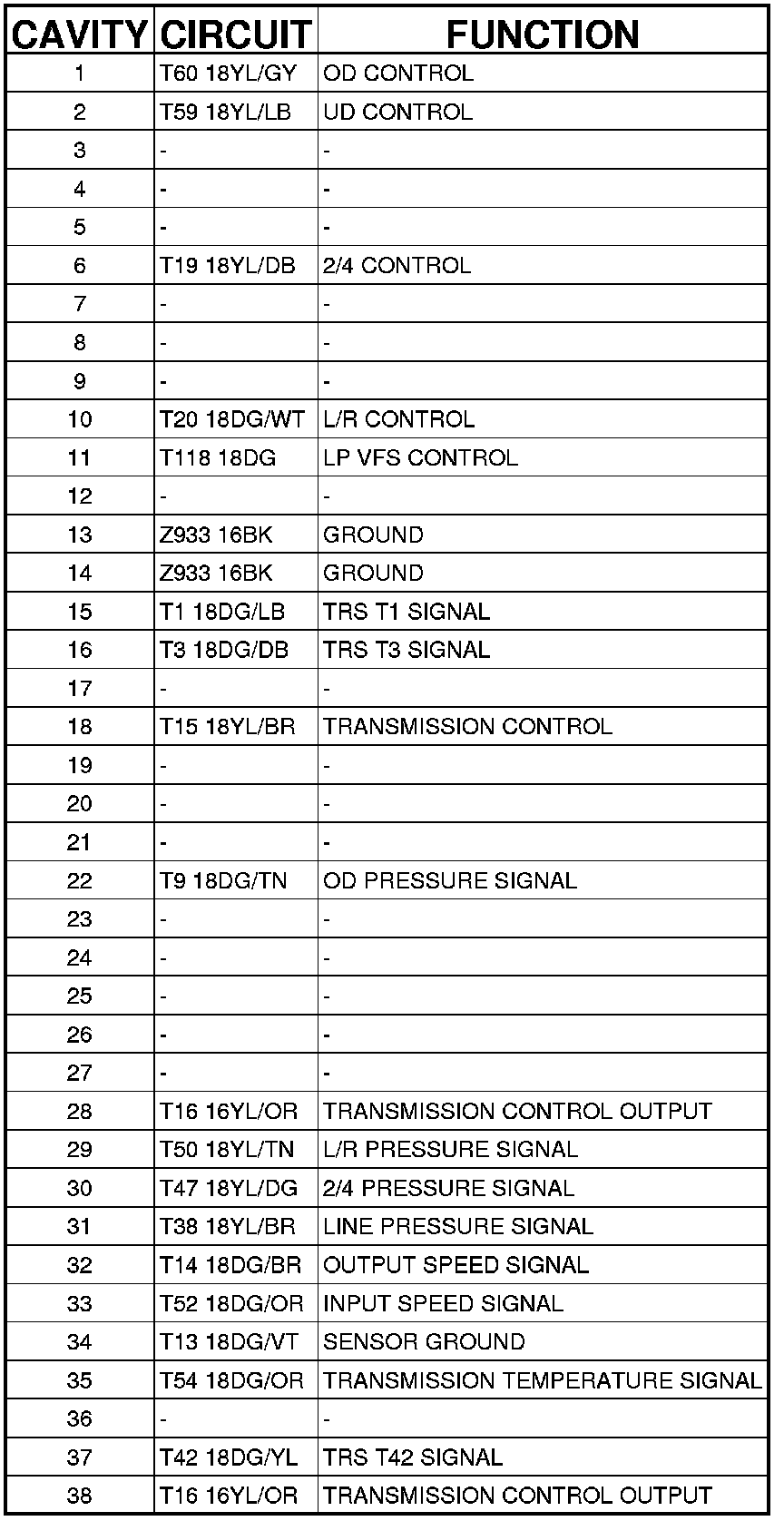

Connector C4 (RLE) - (POWERTRAIN) 38 WAY

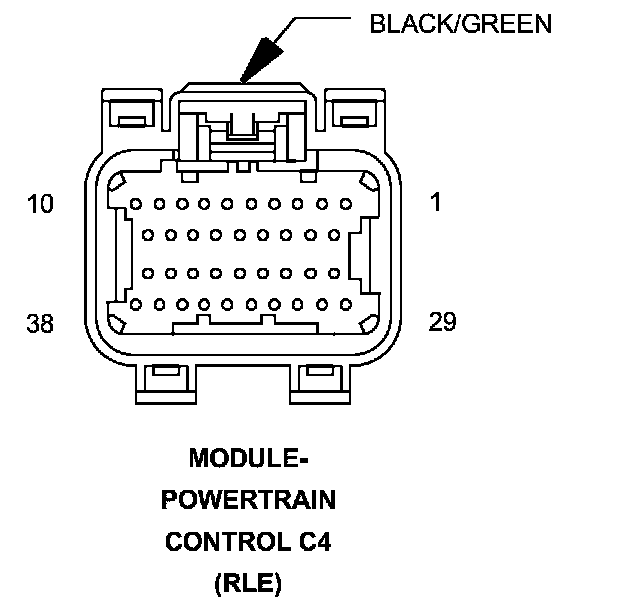

MODULE-POWERTRAIN CONTROL (RLE) - (POWERTRAIN) 38 WAY
