Totally Integrated Power Module
Totally Integrated Power Module (TIPM)

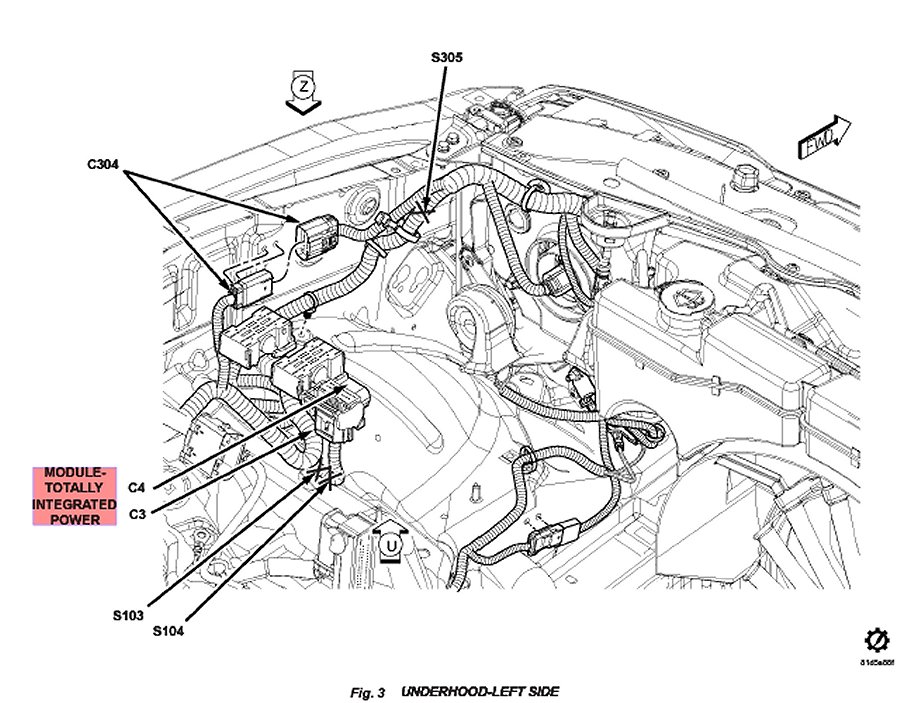

Underhood-Left Side:

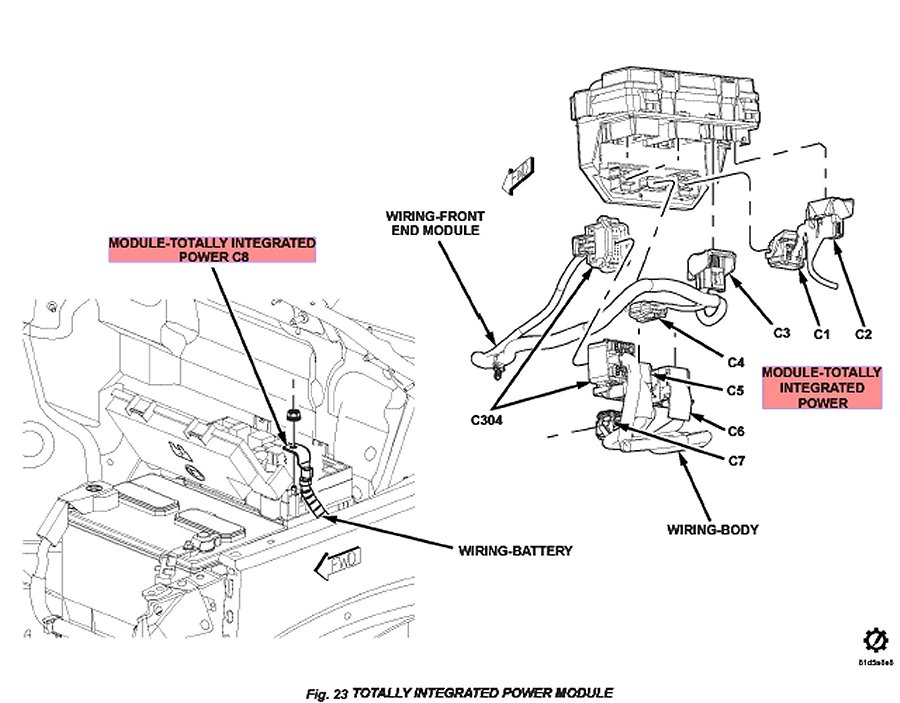

Totally Integrated Power Module:
