Installation






INSTALLATION

1. Install the fuel level sending unit to the module.
2. Install the fuel pump module in the tank Fuel Tank - Installation.

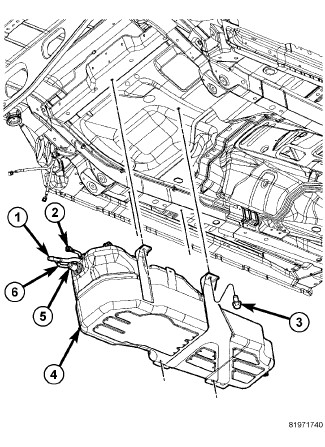

3. Install fuel tank (4) Fuel Tank - Installation.
