System Specifications

Timing Belt/Chain Tensioner

Timing Chain Tensioner Arm Bolt 28 Nm (250 in lbs.)
Timing Chain Primary Tensioner Bolts 28 Nm (250 in lbs.)

Crankshaft Pulley/Timing Gear Mounting Bolt

Crankshaft Damper Bolt 175 Nm (130 ft. lbs)

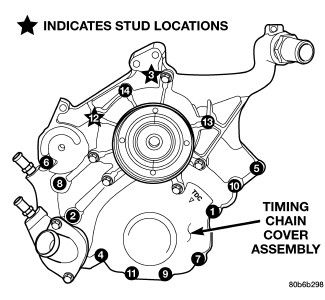

Timing Cover






Timing Chain Cover Bolts 58 Nm (43 ft. lbs)

OIL PUMP
