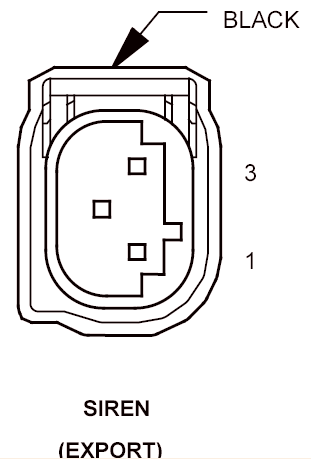

Siren (Export) Connector End View
SIREN - BLACK 3 WAY (EXPORT)
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
A412 18RD |
FUSED B(+) |
| 2 |
Z908 18BK/LG |
GROUND |
| 3 |
D96 18WT/LB |
SIREN SIGNAL CONTROL |
