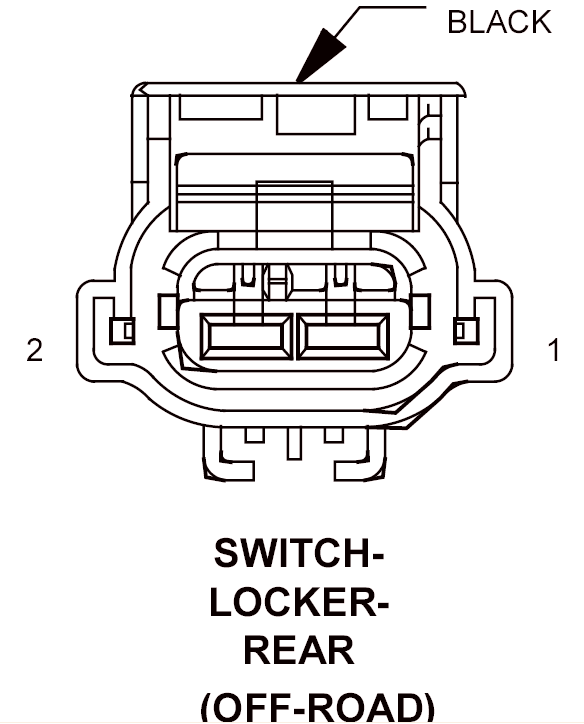

Rear Locker Switch (Off-Road) Connector End View
SWITCH-LOCKER-REAR - BLACK 2 WAY (OFF-ROAD)
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
T527 18YL/TN |
REAR LOCKER SWITCH SENSE |
| 2 |
K91 18DB/YL |
SENSOR GROUND |
