P2706-Ms Solenoid Circuit: Notes

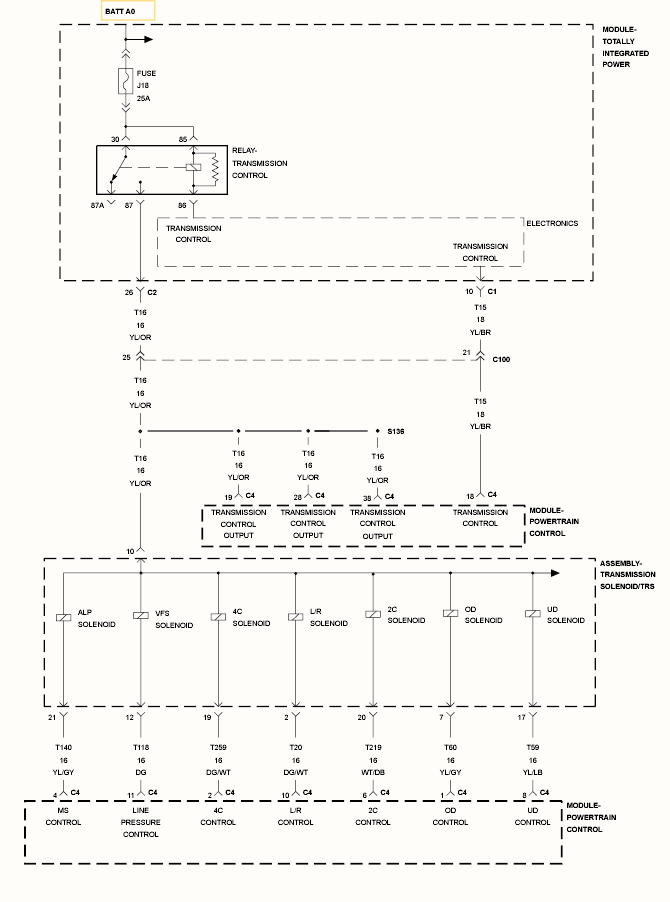

Fig 1: LR Solenoid Circuit
Courtesy of CHRYSLER LLC
Courtesy of CHRYSLER LLC
