Outside Rearview Mirror - Installation

INSTALLATION

1. Position the mirror onto the door.

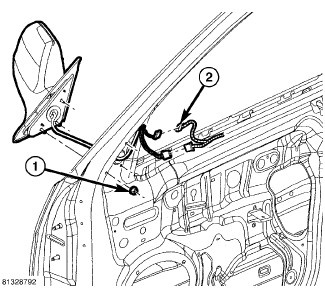

2. Install the three nuts (1) that secure the mirror to the door. Tighten the nuts to 7 Nm (60 in. lbs.).
3. Connect the wire harness connectors (2) to the mirror.

4. Install the door trim panel Front Door Trim Panel - Installation.
