TIPM Component Layout And Connector Identification

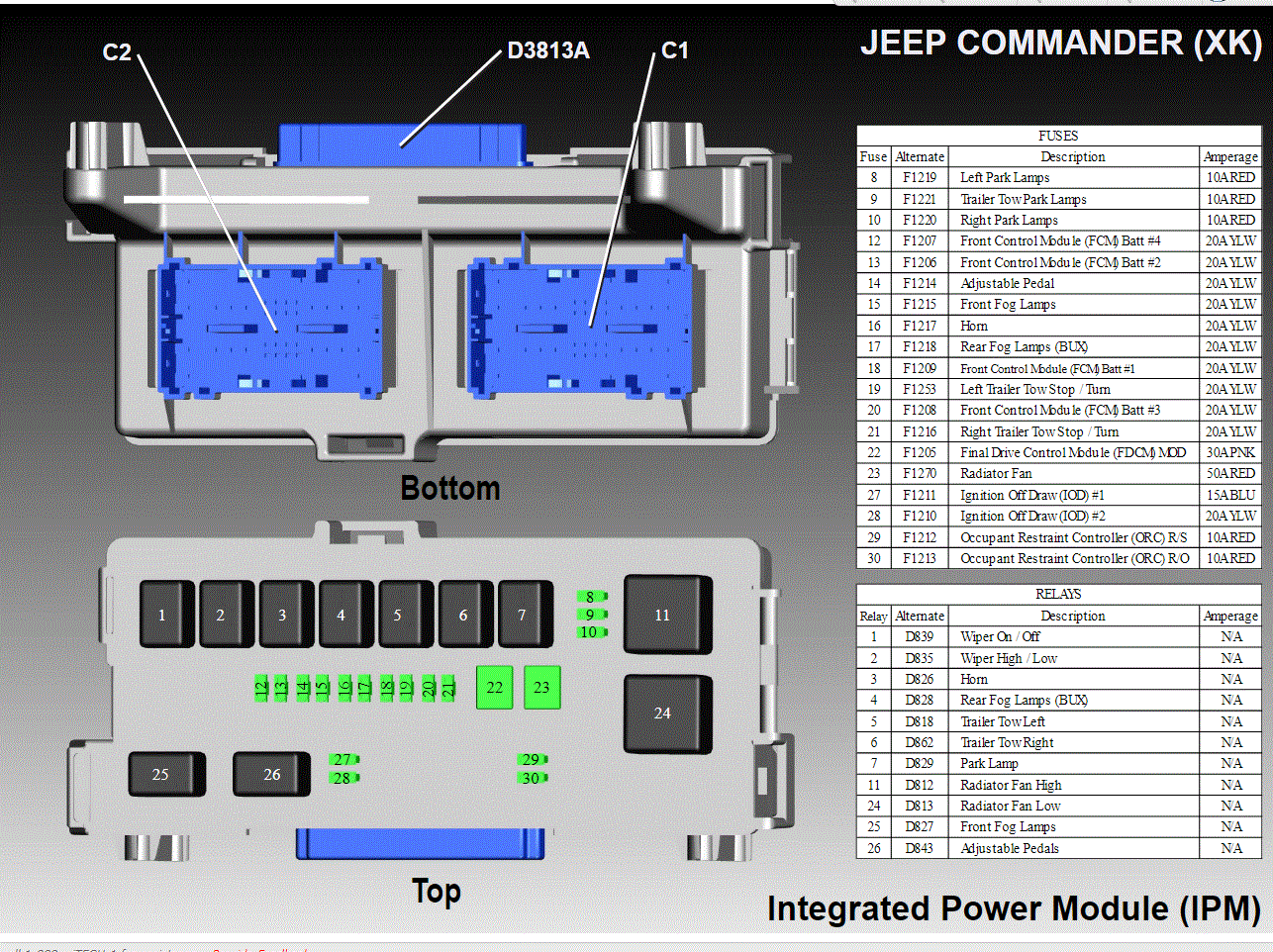

Fig 1: TIPM Layout And Connector Identification

G00570516

Courtesy of CHRYSLER
