JUNTION Block Layout And Connector Identification

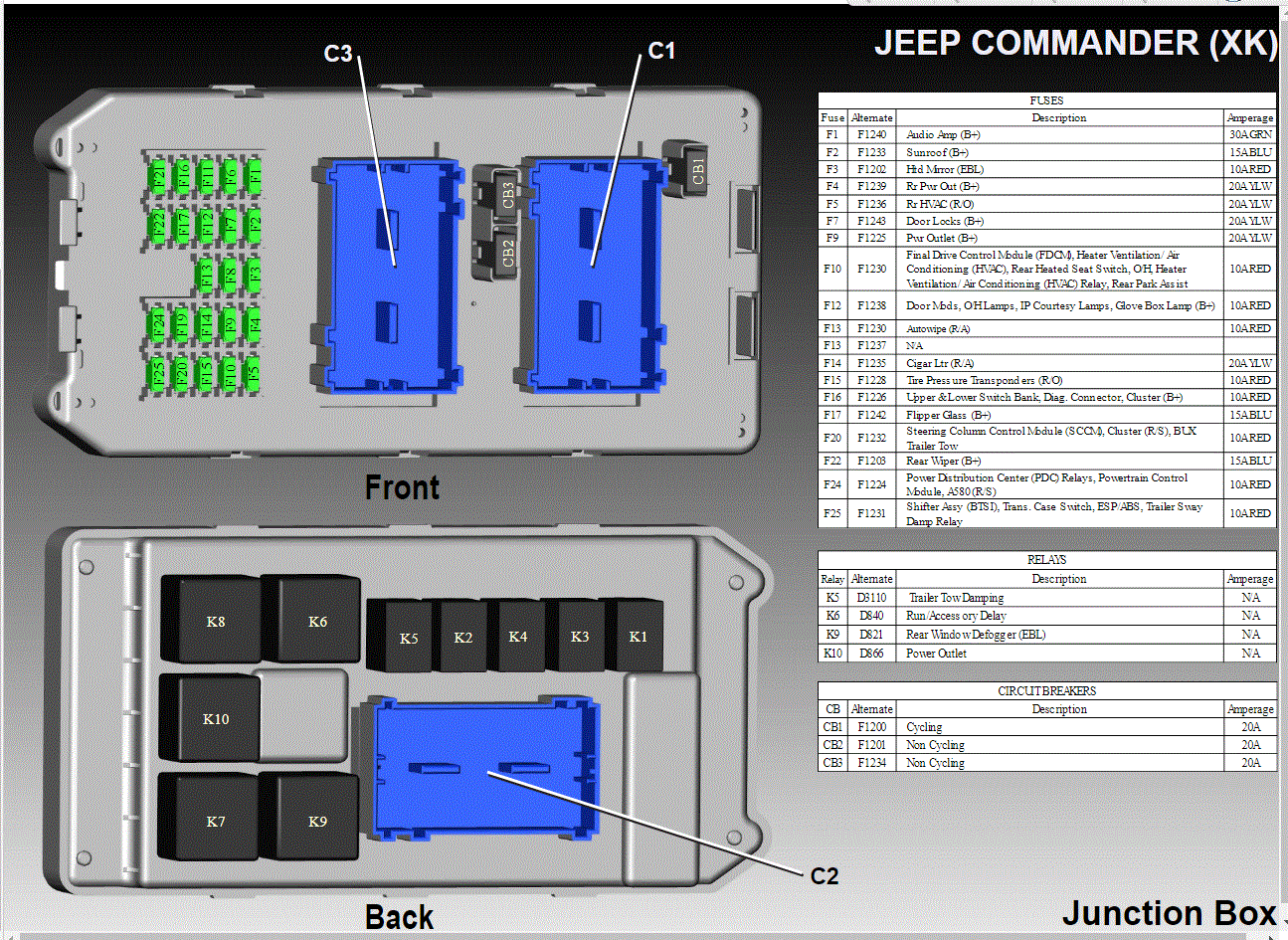

Fig 1: Juntion Block Layout And Connector Identification
G00570514Courtesy of CHRYSLER
