All Wheel Drive Control Module - Installation






INSTALLATION

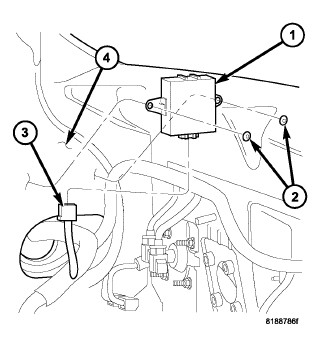

1. Plug ECC module in (3).
2. Move into place, install bolts (2) and tighten to 11 Nm (97 in. lbs.).
3. Install the left front kick panelCowl Trim Panel - Installation.
